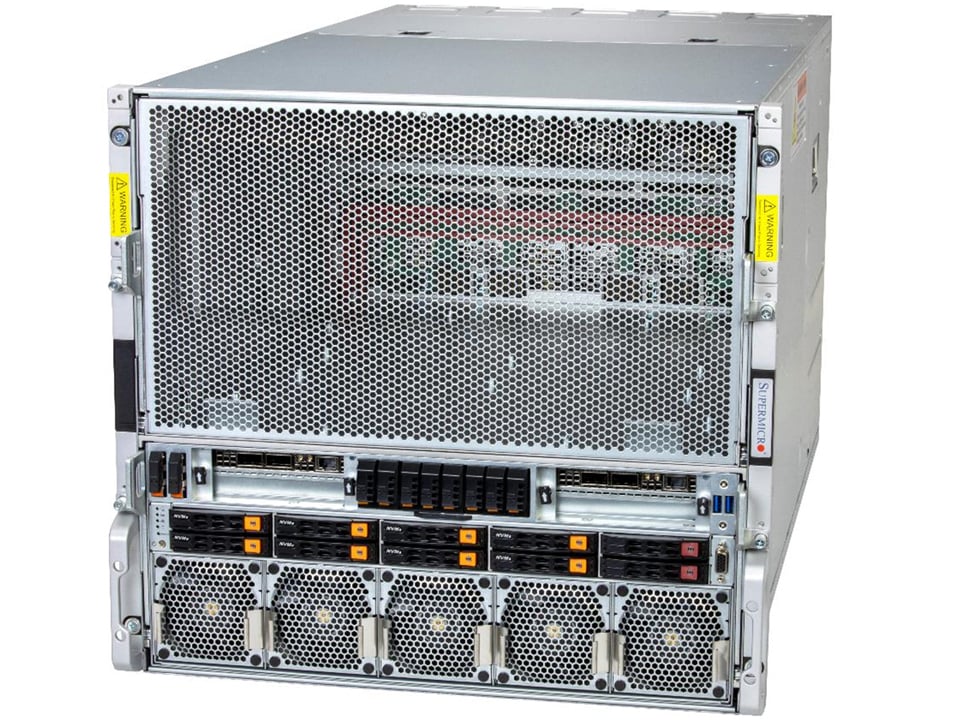

Supermicro10U GPU A+ Server AS -A126GS-TNBR New (AS -A126GS-TNBR)
Key Features
- Dual AMD EPYC™ 9005/9004 Series Processors
- Total of 8 onboard SXM GPU accelerator cards (Air-cooled)
- Supports up to 24 DIMM slots, 6400 MT/s 6TB DDR5 memory (1DPC only)(Please check System Memory Section for detail)
- 8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL slotsDual 10G NIC (X710), 1 VGA, 2 USB 3.0, and 1 Dedicated IPMI

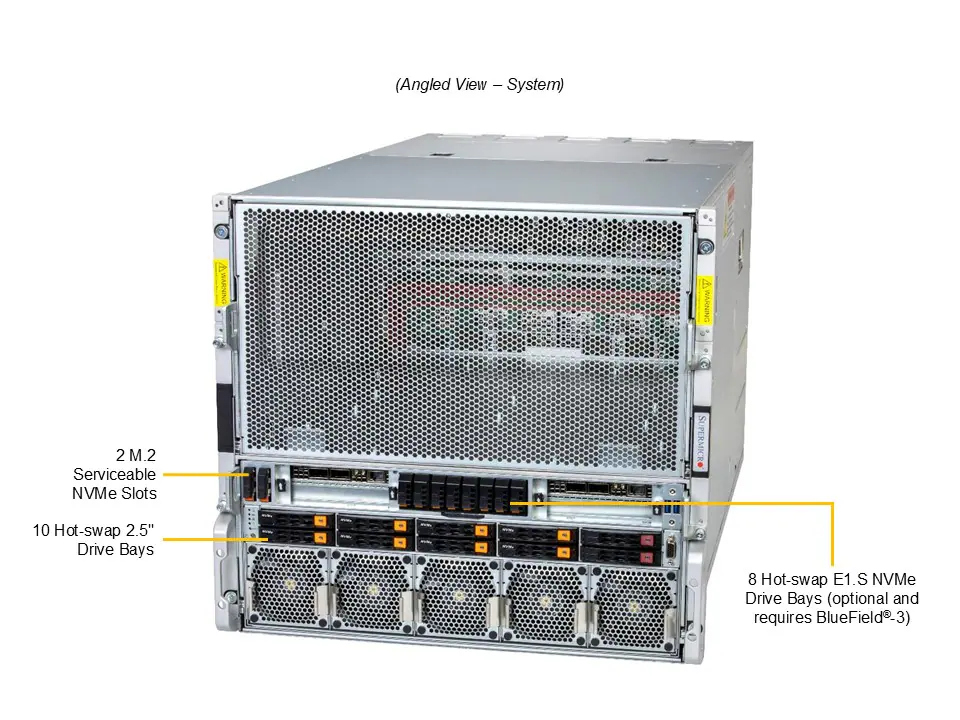

- 8 front hot-swap 2.5" NVMe + 2 hot-swap 2.5" SATA drive bays8 E1.S drive bays (optional- requires BF3)Dual Serviceable M.2 slots with RAID
- Total of 6x 5250W (3+3)Titanium Level redundant power supplies(Power supply full redundancy based on configuration and application load)
Expertise in geïntegreerde oplossingen
Ongeëvenaarde kwaliteitsborging
24/7 op maat gemaakte klantenondersteuning
10U GPU A+ Server AS -A126GS-TNBR New (AS -A126GS-TNBR)
Key Features
- Dual AMD EPYC™ 9005/9004 Series Processors
- Total of 8 onboard SXM GPU accelerator cards (Air-cooled)
- Supports up to 24 DIMM slots, 6400 MT/s 6TB DDR5 memory (1DPC only)(Please check System Memory Section for detail)
- 8 PCIe 5.0 x16 LP + 2 PCIe 5.0 x16 FHHL slotsDual 10G NIC (X710), 1 VGA, 2 USB 3.0, and 1 Dedicated IPMI
- 8 front hot-swap 2.5" NVMe + 2 hot-swap 2.5" SATA drive bays8 E1.S drive bays (optional- requires BF3)Dual Serviceable M.2 slots with RAID
- Total of 6x 5250W (3+3)Titanium Level redundant power supplies(Power supply full redundancy based on configuration and application load)
Vraag offerte aan voor prijsinformatie
€0,00
(Excl. btw)
€0,00
(Incl. btw)
Beschikbaarheid opvragen
Minimaal 1 jaar Carry-in-garantie voor servers
Wij assembleren en testen uw bestelling zorgvuldig
Supermicro Product ID: AS-A126GS-TNBR
Hulp Nodig? Contacteer onze experts
Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur
Specificaties
| Eigenschap | Specificatie |
|---|---|
| Product SKUs | A+ Server AS-A126GS-TNBR A+ Server AS-A126GS-TNBR-G1 Gold Series version with pre-configured components |
| Motherboard | Super H14DSG-OD |
| Processor (CPU) | Dual processor(s) AMD EPYC™ 9005/9004 Series Processors |
| Core Count | Up to 384C/768T |
| Note | Supports up to 500W TDP CPUs |
| Max GPU Count | 8 onboard GPUs |
| Supported GPU | NVIDIA SXM: HGX B200 8-GPU (180GB) |
| CPU-GPU Interconnect | PCIe 5.0 x16 CPU-to-GPU Interconnect |
| GPU-GPU Interconnect | NVIDIA® NVLink® with NVSwitch™ |
| System Memory | 24 DIMM slots/1 Channel |
| Max Memory (1DPC) | Up to 6TB 6400MT/s ECC DDR5 RDIMM (AMD EPYC™ 9005 Series Processor) |
| Max Memory (1DPC) | Up to 6TB 4800MT/s ECC DDR5 RDIMM (AMD EPYC™ 9004 Series Processor) |
| View Memory Options | Zie datasheet voor uitbreidingsmogelijkheden |
| Memory Voltage | 1.1V |
| On-Board Devices - Chipset | System on Chip |
| Network Connectivity | 2 RJ45 10GbE with Intel® X710 |
| View AOC Options | Zie datasheet voor uitbreidingsmogelijkheden |
| Input / Output - LAN | 1 RJ45 1 GbE Dedicated BMC LAN port |
| Input / Output - USB | 2 USB 3.0 Type-A ports (Rear) |
| Video | 1 VGA port |
| TPM | 1 TPM header |
| System BIOS | AMI 64MB SPI Flash EEPROM |
| Management | SuperCloud Composer® Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New! |
| Power configurations | ACPI Power Management, Power-on mode control for AC power loss recovery, Power button override mechanism |
| Security | Trusted Platform Module (TPM) 2.0 Automatic Firmware Recovery Cryptographically Signed Firmware Runtime BMC Protections Secure Boot Secure Firmware Updates Supply Chain Security: Remote Attestation System Lockdown |
| PC Health Monitoring | CPU (Monitors for CPU Cores, Chipset Voltages, Memory) Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors Monitoring for CPU and chassis environment Thermal Control for fan connectors System temperature, Memory temperature, CPU temperature, 3.3V standby, +5V standby, +5V, +3.3V, +12V, CPU thermal trip support |
| Chassis Form Factor | 10U Rackmount |
| Model | CSE-GP1001TS-R000NPF |
| Dimensions | Height: 17.2" (438.8 mm) Width: 17.6" (449 mm) Depth: 33.2" (843.28 mm) |
| Package | 25.2" (H) x 49.4" (W) x 27.3" (D) |
| Weight | Gross Weight: 341 lbs (155 kg) Net Weight: 293 lbs (133 kg) |
| Available Color | Silver |

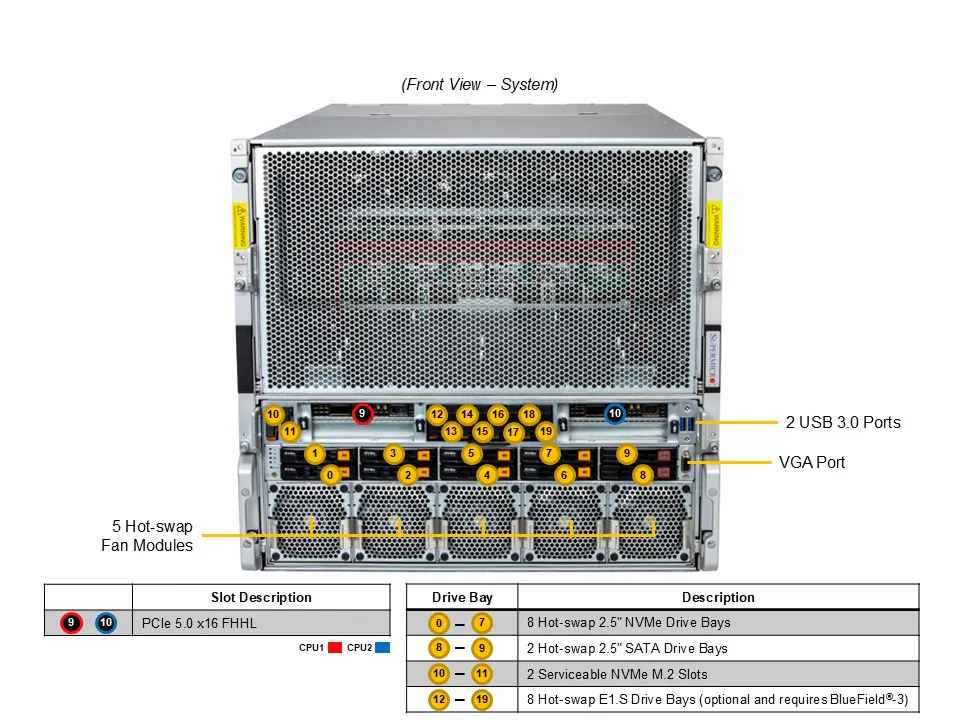

| Front Panel | LED: HDD activity, Network activity LEDs, System information (overheat/UID), UID Buttons: Power On/Off, UID/Reset button |
| Expansion Slots | 8 PCIe 5.0 x16 LP slots, 2 PCIe 5.0 x16 FHHL slots |
| Drive Bays Configuration | Default: Total 10 bays 8 front hot-swap 2.5" PCIe 5.0 x4 NVMe drive bays 2 front hot-swap 2.5" SATA drive bays Option A: Total 8 bays (8 front hot-swap E1.S NVMe drive bays) (*NVMe support may require additional storage controller and/or cables) |
| M.2 | 2 M.2 NVMe slots (M-key) |
| System Cooling | 19x 8cm heavy duty fans with optimal fan speed control 1 Air Shroud |
| Power Supply | 6x 5250W Redundant (3 + 3) Titanium Level (96%) power supplies |
| PSU Dimension | 106.5 x 82.1 x 245.3 mm |
| PSU Input | 5250W: 200-240Vac / 50-60Hz |
| +12V | Max: 125A / Min: 0A (200Vac-240Vac) |
| 12V SB | Max: 4A / Min: 0A |
| Output Type | Backplanes (gold finger) |
| Certification | Titanium Level94%+, RoHS |
| Operating Environment | Operating Temperature: 10°C to 35°C (50°F to 95°F) Non-operating Temperature: -40°C to 60°C (-40°F to 140°F) |
| Operating Relative Humidity | 8% to 90% (non-condensing) |
| Non-operating Relative Humidity | 5% to 95% (non-condensing) |
Optional Parts List
| Categorie | Part Number | Qty | Description |
|---|---|---|---|
| 16 SAS | AOC-S3816L-L16iT OR AOC-S3916L-H16iR | 1 | 16 int 12Gb/s SAS3 ports,x8 Gen4, HBA/ AOC with SAS3916 controller (U3) and 240PD RAID Key |
| CBL-CDAT-1062 | 1 | i2C Y cable (1x4 to 2x 1x4),45cm,26AWG | |
| MCP-220-21602-0B | 1 | Black 2.5" HDD dummy cover for 8 HDD, Hex hole | |
| CBL-SAST-1264F-100 | 1 | Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM | |
| CBL-SAST-1276F-100 | 1 | Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CM | |
| 20 NVMe | CBL-MCIO-1255M5 | 1 | MCIO x8 (STR to STR),55CM,30AWG |
| CBL-MCIO-1250M5-Z | 2 | MCIO x8 (STR to STR),50cm,30AWG | |
| CBL-GNZ4-1265M5Y-X | 1 | GENZ 4C to 2 MCIO x8,STR,65/65cm,30AWG | |
| CBL-MCIO-1340M5R | 1 | MCIO x8 (STR to RA),40CM,32AWG | |
| CBL-MCIO-1245M5-Z | 1 | MCIO x8 (STR to STR),45cm,30AWG | |
| CBL-MCIO-1260M5 | 1 | MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM | |
| CBL-MCIO-1330M5 | 1 | MCIO (x8 to x8), STR, 30cm,G5,32AWG | |
| CBL-MCIO-1326M5 | 1 | MCIO (x8 to x8), STR, 26cm,G5,32AWG | |
| MCP-220-00185-0N | 2 | Dummy cover for two 2.5" drive bays | |
| 20 NVMe + 4 SAS | CBL-SAST-1296F-100 | 1 | Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,96/96CM |
| CBL-MCIO-1326M5 | 1 | MCIO (x8 to x8), STR, 26cm,G5,32AWG | |
| CBL-MCIO-1330M5 | 1 | MCIO (x8 to x8), STR, 30cm,G5,32AWG | |
| CBL-MCIO-1260M5 | 1 | MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM | |
| CBL-MCIO-1245M5-Z | 1 | MCIO x8 (STR to STR),45cm,30AWG | |
| CBL-MCIO-1340M5R | 1 | MCIO x8 (STR to RA),40CM,32AWG | |
| CBL-GNZ4-1265M5Y-X | 1 | GENZ 4C to 2 MCIO x8,STR,65/65cm,30AWG | |
| CBL-MCIO-1250M5-Z | 2 | MCIO x8 (STR to STR),50cm,30AWG | |
| AOC-S3808L-L8iT OR AOC-S3908L-H8iR | 1 | 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA/ 8 int 12Gb/s ports, x8 Gen4, ROC- LP, 240 HDD w/exp | |
| CBL-MCIO-1255M5 | 1 | MCIO x8 (STR to STR),55CM,30AWG | |
| 24 NVMe | CBL-MCIO-1218M5-1 | 1 | MCIO x8 (STR to STR),18CM,85OHM |
| CBL-MCIO-1221M5 | 1 | MCIO x8 (STR to STR),21cm | |
| CBL-MCIO-1326M5 | 1 | MCIO (x8 to x8), STR, 26cm,G5,32AWG | |
| CBL-MCIO-1330M5 | 1 | MCIO (x8 to x8), STR, 30cm,G5,32AWG | |
| CBL-MCIO-1260M5 | 1 | MCIO (x8 STR to x8 STR),60CM,30AWG,85OHM | |
| CBL-MCIO-1245M5-Z | 1 | MCIO x8 (STR to STR),45cm,30AWG | |
| CBL-MCIO-1340M5R | 1 | MCIO x8 (STR to RA),40CM,32AWG | |
| CBL-GNZ4-1265M5Y-X | 1 | GENZ 4C to 2 MCIO x8,STR,65/65cm,30AWG | |
| CBL-MCIO-1250M5-Z | 2 | MCIO x8 (STR to STR),50cm,30AWG | |
| CBL-MCIO-1255M5 | 1 | MCIO x8 (STR to STR),55CM,30AWG | |
| 24 SAS(16 SAS + 8 SAS) | CBL-SAST-1264F-100 | 1 | Slimline x8 (STR) to 2x Slimline x4 (STR),FFC,64/64CM |
| CBL-SAST-1276F-100 | 1 | Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,76/76CM | |
| CBL-SAST-1296F-100 | 1 | Slimline x8 (LE) to 2x Slimline x4 (STR),FFC,96/96CM | |
| AOC-S3808L-L8iT OR AOC-S3908L-H8iR | 1 | 8 int 12Gb/s SAS3 ports, x8 Gen4, HBA/ 8 int 12Gb/s ports, x8 Gen4, ROC- LP, 240 HDD w/exp | |
| AOC-S3816L-L16iT OR AOC-S3916L-H16iR | 1 | 16 int 12Gb/s SAS3 ports,x8 Gen4, HBA/ AOC with SAS3916 controller (U3) and 240PD RAID Key | |
| CBL-CDAT-1062 | 1 | i2C Y cable (1x4 to 2x 1x4),45cm,26AWG | |
| MCP-220-21602-0B | 1 | Black 2.5" HDD dummy cover for 8 HDD, Hex hole | |
| 24 SATA | MCP-220-21602-0B | 1 | Black 2.5" HDD dummy cover for 8 HDD, Hex hole |
| CBL-CDAT-1062 | 1 | i2C Y cable (1x4 to 2x 1x4),45cm,26AWG | |
| CBL-MCIO-1223S4Y | 1 | MCIO x8 to 2 SlimSAS x4, STR, 23cm, 85Ohm | |
| CBL-MCIO-1275S4Y | 1 | MCIO x8 to 2 SlimSAS x4, STR, 75cm, 85Ohm | |
| Cable Arm | MCP-290-00168-0N (***Requires MCP-290-11901-0N ***) | 1 | Cable Management Arm, 1U height, 7.5" deep cable arm ***Requires MCP-290-11901-0N *** |
| MCP-290-11901-0N | 1 | 41" ball-bearing rail set for Hyper servers | |
| Chassis Rear Handle Kit | MCP-290-21907-0N | 1 | Hyper 2U rear handle kit for immersion cooling |
| Drive Bay Dummy Cover | MCP-220-21602-0B OR MCP-220-00185-0N | - | Dummy cover for eight 2.5" drive bays Dummy cover for two 2.5" drive bays |
| PCIe Slot 1 (1x16) | CBL-MCIO-1245M5R | 1 | MCIO x8 (RA to STR),45cm,30AWG |
| RSC-H-68G5 | 1 | 1U LHS Hyper Riser card with two PCIe 5.0 slots | |
| MCP-240-21108-0N | 1 | Riser Bracket(2-slot) for RSC-H-68G5 | |
| LBL-4000 | 1 | Cabled PCIe Slot 2 Warning Label | |
| CBL-PWEX-1136YB-25 | 1 | MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG | |
| CBL-MCIO-1335M5R | 1 | MCIO x8 (RA to STR),35CM,32AWG | |
| PCIe slot 1+2 (2x8) | RSC-H-68G5 | 1 | 1U LHS Hyper Riser card with two PCIe 5.0 slots |
| CBL-MCIO-1245M5-Z | 1 | MCIO x8 (STR to STR),45cm,30AWG | |
| CBL-MCIO-1245M5R | 1 | MCIO x8 (RA to STR),45cm,30AWG | |
| CBL-PWEX-1136YB-25 | 1 | MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG | |
| MCP-240-21108-0N | 1 | Riser Bracket(2-slot) for RSC-H-68G5 | |
| PCIe Slot 3 (1x16) | MCP-240-21108-0N | 1 | Riser Bracket(2-slot) for RSC-H-68G5 |
| CBL-GNZ4-1227M5YRR16 | 1 | GENZ 4C STR to 2 MCIO x8 RA/RA 27/16cm | |
| CBL-PWEX-1136YB-25 | 1 | MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG | |
| LBL-4000 | 1 | Cabled PCIe Slot 4 Warning Label | |
| MCP-120-82927-0N | 1 | Middle riser support bracket | |
| RSC-H-68G5 | 1 | 1U LHS Hyper Riser card with two PCIe 5.0 slots | |
| PCIe slot 3+4 (2x8) | CBL-GNZ4-1227M5YR21 | 1 | GENZ 4C STR to 2 MCIO x8 STR/RA 27/21cm |
| CBL-PWEX-1136YB-25 | 1 | MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG | |
| MCP-120-82927-0N | 1 | Middle riser support bracket | |
| MCP-240-21108-0N | 1 | Riser Bracket(2-slot) for RSC-H-68G5 | |
| RSC-H-68G5 | 1 | 1U LHS Hyper Riser card with two PCIe 5.0 slots | |
| PCIe slot 5 (1x16) + slot 7+8 (2x8) | CBL-MCIO-1245M5-Z | 2 | MCIO x8 (STR to STR),45cm,30AWG |
| LBL-4000 | 1 | Cabled PCIe Slot 6 Warning Label | |
| MCP-240-21908-0N | 1 | Riser Bracket(4-slot) | |
| RSC-H2-6888G5L | 1 | 2U LHS Hyper Riser card with 4 PCIe 5.0 slots | |
| RSC-H-6G5L | 1 | 1U LHS Hyper riser card with one PCIe 5.0 X16 slot | |
| RSC-H-68G5 | 1 | 1U LHS Hyper Riser card with two PCIe 5.0 slots | |
| MCP-240-21908-0N | 1 | Riser Bracket(4-slot) | |
| CBL-PWEX-1136YB-25 | 1 | MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG | |
| CBL-MCIO-1335M5R | 1 | MCIO x8 (RA to STR),35CM,32AWG | |
| PCIe slot 5+7 (2x16) | RSC-H-6G5L | 1 | 1U LHS Hyper riser card with one PCIe 5.0 X16 slot |
| RSC-H-68G5 | 1 | 1U LHS Hyper Riser card with two PCIe 5.0 slots | |
| MCP-240-21908-0N | 1 | Riser Bracket(4-slot) | |
| LBL-4000 | 1 | Cabled PCIe Slot 6 Warning Label | |
| CBL-PWEX-1136YB-25 | 1 | MicroHi(2x4 to 2x2Y),PH3.0,25/25cm,8.5A/p,18AWG | |
| CBL-MCIO-1335M5R | 1 | MCIO x8 (RA to STR),35CM,32AWG | |
| CBL-MCIO-1245M5R | 1 | MCIO x8 (RA to STR),45cm,30AWG | |
| PCIe slot 5-8 (4x8) | CBL-MCIO-1245M5-Z | 2 | MCIO x8 (STR to STR),45cm,30AWG |
| MCP-240-21908-0N | 1 | Riser Bracket(4-slot) | |
| RSC-H2-6888G5L | 1 | 2U LHS Hyper Riser card with 4 PCIe 5.0 slots | |
| PCIe slot 7 (1x16) | MCP-240-21908-0N | 1 | Riser Bracket(4-slot) |
| RSC-H-6G5L | 1 | 1U LHS Hyper riser card with one PCIe 5.0 X16 slot | |
| PCIe slot 7+8 (2x16) | LBL-4000 | 2 | Cabled PCIe Slot 5/6 Warning Label |
| MCP-240-21908-0N | 1 | Riser Bracket(4-slot) | |
| RSC-H2-6888G5L | 1 | 2U LHS Hyper Riser card with 4 PCIe 5.0 slots | |
| Rail Set | MCP-290-21103-0N | 1 | 21.65" ball-bearing rail set for Hyper servers |
| MCP-290-11903-0N (included in the system ) | 1 | 30.5" ball-bearing rail set for Hyper servers | |
| MCP-290-11902-0N | 1 | 35.25" ball-bearing rail set for Hyper servers | |
| MCP-290-11901-0N | 1 | 41" ball-bearing rail set for Hyper servers | |
| Serial Port DTK Cable with PCIe Bracket | CBL-0010L | 1 | 9-Pin 26CM Serial Port DTK Cable with PCIe Bracket |
| TPM security module | AOM-TPM-9670V | 1 | SPI capable TPM 2.0 with Infineon 9670 controller; vertical form factor |
| AOM-TPM-9672V-FIPS | 1 | AOM-TPM-9672V-FIPS TPM 2.0 with 10 pins SPI support FIPS | |
| AOM-TPM-9670H-FIPS | 1 | AOM-TPM-9670H-FIPS supporting FIPS 140-2,RoHS | |
| AOM-TPM-9672V | 1 | AOM-TPM-9672V- TPM 2.0 with 10 pins SPI,RoHS |
Gerelateerde producten van Supermicro
Supermicro Product ID: ARS-111GL-NHR
Key Features
- High density 1U GPU system with Integrated NVIDIA® H100 GPU
- NVIDIA Grace Hopper™ Superchip (Grace CPU and H100 GPU)
- NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency...
AI Servers
Supermicro Product ID: ARS-221GL-NR
Key Features
- High density 2U GPU system with up to 2 NVIDIA® PCIe GPUsPCIe-based NVIDIA H100 NVL and NVIDIA L40s
- Energy-Efficient NVIDIA Grace™ CPU Superchip with 144 Cores
- Up to 960GB...
AI Servers
Supermicro Product ID: AS-2114GT-DNR
Key Features
- Single AMD EPYC™ 7003/7002 Series Processor(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
- 2TB Registered ECC DDR4...
AI Servers
Supermicro Product ID: AS-2114GT-DPNR
Key Features
- AMD Ryzen™ Threadripper™ PRO 5000WX/3000WX Series Processor, up to 64 Cores
- 2TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
- 2 PCIe 4.0 x16 external slots + 1 PCIe 4.0 x8...
AI Servers
Supermicro Product ID: AS-4124GO-NART
Key Features
- Supports NVIDIA® HGX™ A100 8-GPUHighest GPU communication using NVIDIA® NVLINK™ v3.0 + NVIDIA® NVSwitch™NICs for GPUDirect RDMA (1:1 GPU Ratio)Supports HGX A100 8-GPU 40GB (HBM2) or 80GB...
AI Servers
Supermicro Product ID: AS-4124GO-NART+
Key Features
- Supports NVIDIA® HGX™ A100 8-GPUHighest GPU communication using NVIDIA® NVLINK™ v3.0 + NVIDIA® NVSwitch™NICs for GPUDirect RDMA (1:1 GPU Ratio)Supports HGX A100 8-GPU 40GB (HBM2) or 80GB...
AI Servers
Supermicro Product ID: AS-4124GQ-TNMI
Key Features
- Supports AMD Instinct™ MI200 Series Accelerators with AMD Infinity™ Fabric™ GPU-GPU Interconnect, 1:1 GPU-to-NIC ratio
- Dual AMD EPYC™ 7003 Series Processors
- 8TB Registered...
AI Servers
Supermicro Product ID: AS-4124GS-TNR+
Key Features
- Supports up to 8 double-width GPUs Direct connect for maximum performance
- Dual AMD EPYC™ 7003/7002 Series Processors
- 8TB Registered ECC DDR4 3200MHz SDRAM in 32...
AI Servers
Supermicro Product ID: AS-8125GS-TNMR2
Key Features
- 8x NIC for GPU direct RDMA (1:1 GPU Ratio)High density 8U system with AMD Instinct MI300X 8-GPU
- Supports up to 24 DIMMs Slots; 6000 MT/s 6TB DDR5 memory(Please check System Memory...
AI Servers
Supermicro Product ID: SYS-210GP-DNR
Key Features
- Single Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processor
- Intel® C621A Chipset
- 1TB Registered ECC DDR4 3200MHz SDRAM in 8 DIMMs
- 3 PCIe Gen 4.0 x16 FHFL...
AI Servers
Supermicro Product ID: SYS-221GE-NR
Key Features
- High density 2U GPU system with up to 4 NVIDIA® PCIe GPUsHighest GPU communication using NVIDIA® NVLINK™ usingPCIe-based H100 NVL with NVLink Support
- 5th/4th Gen Intel® Xeon®...
AI Servers
Supermicro Product ID: SYS-420GU-TNXR
Key Features
- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
- Intel® C621A Chipset
- 32 DIMM Slots; Up to 8TB DRAM; 3200/2933/2666 ECC DDR4...
AI Servers
Supermicro Product ID: SYS-740GP-TNRBT
Key Features
- 16 DIMM Slots; Up to 4TB DRAM; Up to 6TB Intel® Optane™ Persistent Memory ; 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
- 4 PCIe 4.0 x16...
AI Servers
Supermicro Product ID: SYS-740GP-TNRT
Key Features
- Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
- Intel® C621A Chipset
- 16 DIMM Slots; Up to 4TB DRAM; Up to 6TB Intel® Optane™ Persistent Memory ;...
AI Servers
Supermicro Product ID: ARS-111GL-SHR
Key Features
- NVIDIA GH200 Grace Hopper™ Superchip, up to 72 cores
- Up to 480GB ECC LPDDR5X embedded on the NVIDIA Superchip
- Up to 3 PCIe 5.0 x16 FHFL slots
- Up to 8 front hot-swap...
AI Servers
Supermicro Product ID: ARS-121L-DNR
Key Features
- High density 1U 2-node system with NVIDIA Grace™ CPU Superchip per node
- NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and CPU at 900GB/s
- Up...
AI Servers
Supermicro Product ID: ARS-221GL-NHIR
Key Features
- High density 2U 1-node GPU system with two Integrated NVIDIA H100 GPUs and two 72-core Arm Neoverse V2 CPUsNVIDIA® NVLink® high speed interconnect between both GH200 Super...
AI Servers
Supermicro Product ID: ARS-221GL-SR
Key Features
- NVIDIA Grace™ CPU Superchip up to total 144 cores
- Up to 4 double-width PCIe GPU accelerator cards
- Up to 960GB ECC LPDDR5X onboard memory option for minimum latency and...
AI Servers
Supermicro Product ID: AS-4125GS-TNRT
Key Features
- Flexible GPU support: active & passive GPUsDirect Attached Configuration for up to 10 double width, full length GPUs8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed...
AI Servers
Supermicro Product ID: AS-4125GS-TNRT2
Key Features
- Flexible GPU support: active & passive GPUsDual Root Configuration with PCIe Switch for up to 10 double width, full length GPUs8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed...
AI Servers
Supermicro Product ID: AS-4145GH-TNMR
Key Features
- Quad AMD Instinct™ MI300A processors
- Onboard 512GB HBM3 unified memory
- Optional PCIe configurations up to 8 PCIe x16 slots
- Flexible networking options with 2 AIOM...
AI Servers
Supermicro Product ID: AS-5126GS-TNRT
Key Features
- Dual Socket SP5 AMD EPYC™ 9005 Series Processors up to 500W with air cooling
- Supports up to 8 double-width PCIe GPU accelerator cards
- Supports up to 24 DIMMs slots, 6400 MT/s...
AI Servers
Supermicro Product ID: AS-5126GS-TNRT2
Key Features
- Dual processor(s) AMD EPYC™ 9005/9004 Series Processors up to 500W with air cooling
- Supports up to 10 double-width PCIe GPU accelerator cards
- Supports up to 24 DIMMs slots,...
AI Servers
• Afbeeldingen van producten op de website kunnen verschillen van het werkelijke product.
• De gepubliceerde prijzen in de winkel kunnen worden gewijzigd en kunnen variëren op basis van marktomstandigheden en beschikbaarheid van de voorraad.
15+ jaar ervaring | Preffered partner van Dell, HPE & Supermicro en meer | Advies op maat binnen 1 werkdag | Snelle levering & installatie | Wereldwijde 24/7 onsite support | Laagsteprijsgarantie
