2U GPU ARS-221GL-NHIR (ARS-221GL-NHIR)

Key Features

High density 2U 1-node GPU system with two Integrated NVIDIA H100 GPUs and two 72-core Arm Neoverse V2 CPUsNVIDIA® NVLink® high speed interconnect between both GH200 Super Chips
NVIDIA Grace™ Hopper Superchip (Grace CPU and H100 GPU)
NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and GPU at 900GB/s
Up to 1248GB of coherent memory (system as a whole), including 960GB LPDDR5X and 288GB of HBM3e for LLM applications
4x PCIe 5.0 X16 supporting one NVIDIA Bluefield 3 and two connectX-7 cards
6 Heavy Duty Fans with Optional Speed Control

€0,00

(Excl. btw)

€0,00

(Incl. btw)

Verzending binnen 3-5 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Supermicro Product ID: ARS-221GL-NHIR

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31(0)85-3018585

Begin Chat

Specificaties

Key Applications

High Performance Computing
AI/Deep Learning Training and Inference
Large Language Model (LLM) and Generative AI

Key Features

- High density 2U 1-node GPU system with two Integrated NVIDIA H100 GPUs and two 72-core Arm Neoverse V2 CPUs
- NVIDIA® NVLink® high speed interconnect between both GH200 Super Chips
NVIDIA Grace™ Hopper Superchip (Grace CPU and H100 GPU)
NVLink® Chip-2-Chip (C2C) high-bandwidth, low-latency interconnect between CPU and GPU at 900GB/s
Up to 624GB of coherent memory per node including 480GB LPDDR5X and 144GB of HBM3e for LLM applications
3x PCIe 5.0 X16 supporting one NVIDIA Bluefield 3 and two connectX-7 cards and 1x PCIe 5.0 x8 slot per node supporting a 10GB LP NIC Card

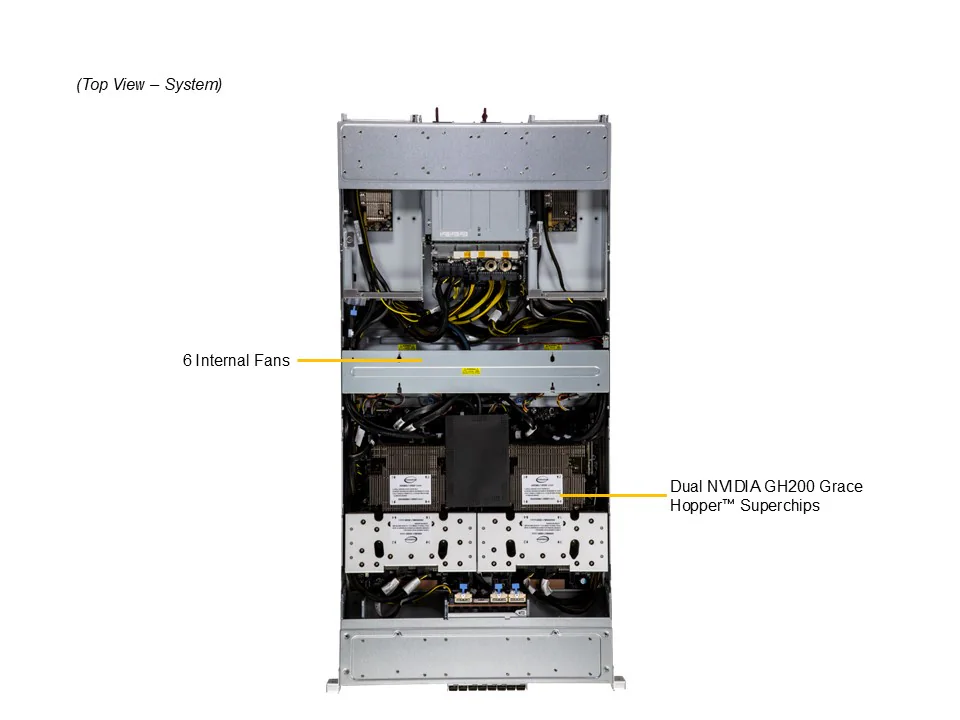

6 Hot Swap Heavy Duty Fans with Optional Speed Control

...

Product SKUs
ARS-221GL-NHIR

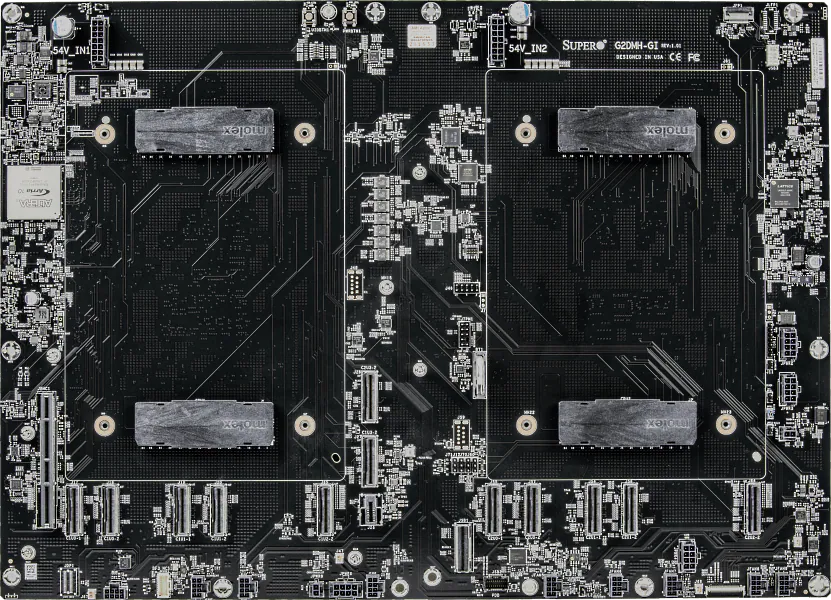

Motherboard
Super G2DMH-GI

Processor
CPU	NVIDIA 72-core NVIDIA Grace CPU on GH200 Grace Hopper™ Superchip
Note	Supports up to 1000W TDP CPUs (Air Cooled)

GPU
Max GPU Count	Up to 2 onboard GPU(s)
Supported GPU	NVIDIA: H100 Tensor Core GPU on GH200 Grace Hopper™ Superchip (Air-cooled) View GPU Options
CPU-GPU Interconnect	NVLink®-C2C
GPU-GPU Interconnect	NVIDIA® NVLink®

System Memory
Memory	Slot Count: Onboard Memory Max Memory: Up to 480GB ECC LPDDR5X Additional GPU Memory: Up to 144GB ECC HBM3

On-Board Devices
Chipset	System on Chip
Network Connectivity	View AOC Options

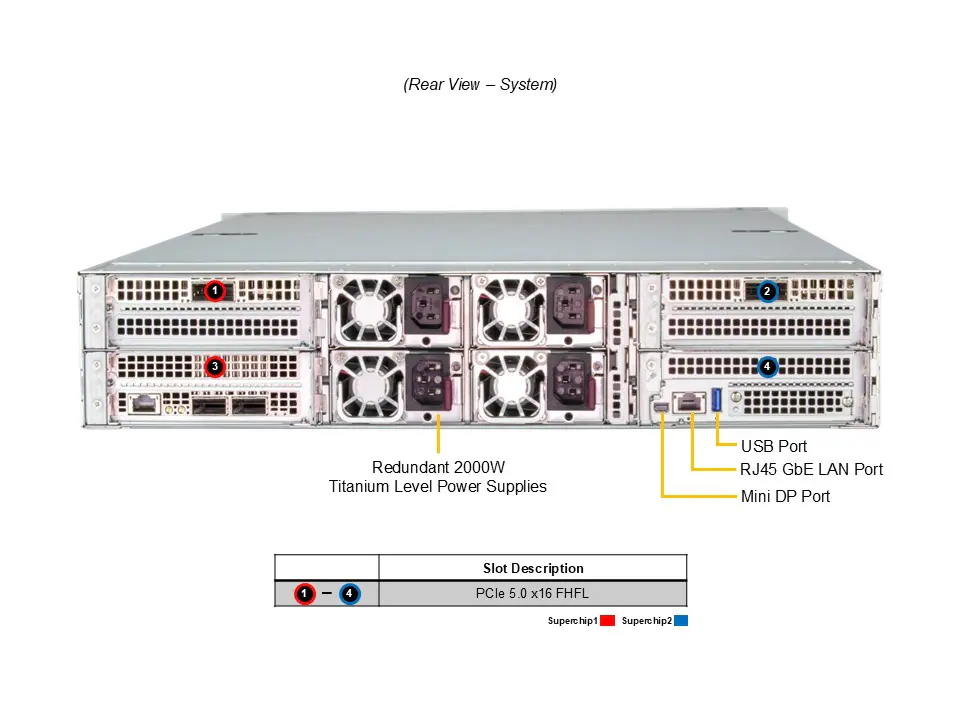

Input / Output
LAN	1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB	2 port(s) (rear)
Video	1 mini-DP port(s)

System BIOS
BIOS Type	AMI 64MB SPI Flash EEPROM

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
