SupermicroSYS-5016I-MR(EOL)X8SIL, 512-200B
Expertise in geïntegreerde oplossingen
Ongeëvenaarde kwaliteitsborging
24/7 op maat gemaakte klantenondersteuning
OndersteuningOplossingen
Supermicro logo
Supermicro Direct Partner

Supermicro

SYS-5016I-MR

(EOL)X8SIL, 512-200B

Vraag gratis offerte aan voor prijsinformatie. Binnen 1 werkdag ontvangt u een prijsopgave van een expert.

€483,04
(Excl. btw)
€483.04
€584,48
(Incl. btw)
Verzending binnen 2-3 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte aanvragen.

Op voorraad
Minimaal 1 jaar Carry-in-garantie voor servers
Wij assembleren en testen uw bestelling zorgvuldig

Supermicro  ID: SYS-5016I-MR

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

Begin Chat

currently offline

Specificaties

Key Features
1. Intel® Xeon® X3400 / L3400 series
    processors
2. Up to 32GB DDR3 1333/1066/800MHz
    ECC Registered DIMM / 16GB
    Unbuffered DIMM
3. 1 (x8) PCI-Express 2.0
4. 2x Intel® 82574L Gigabit Ethernet
   Controllers
7. Integrated Graphics
6. 1x 3.5" Internal Drive Bay
7. 200W High-Efficiency Power Supply

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SYS-5016I-MR
  • SuperServer 5016I-MR (Black)
Motherboard

Super X8SIL
Processor/Cache
CPU
  • LGA 1156 Socket
  • Intel® Xeon® X3400 series
  • Intel® Xeon® L3400 series
  • Intel® Core™ i3
  • Intel® Pentium® G6950
  • Intel® Celeron® G1101
System Memory
Memory Capacity
  • 4x 240-pin DDR3 DIMM sockets
  • Supports up to 32 GB DDR3 ECC Registered memory (RDIMM)
  • Supports up to 16 GB DDR3 ECC Un-Buffered memory (UDIMM)
  • 1333 / 1066 / 800 MHz
  • Dual Core processors of Ci3 and Pentium: support ECC UDIMM only
  • Note: Supports 1-Gb and 2-Gb x8 devices only - Intel 3420 / 3400 Chipset Memory Requirements
Memory Type
  • 1333 / 1066 / 800 MHz ECC Registered / ECC Unbuffered DDR3 SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes
  • 1GB, 2GB, 4GB, 8GB
Memory Voltage
  • 1.5 V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® 3400 chipset
SATA
  • 4x SATA (3 Gbps)
Network Controllers
  • 2x Intel® 82574L Gigabit Ethernet Controllers
  • Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
VGA
  • Matrox G200eW 16MB DDR2
Super I/O
  • Winbond 83627DHG-P
Clock Generator
  • CK505
Expansion Slots
PCI-Express
  • 1 (x8) PCI-E 2.0 slot via riser card
  • AOC Compatibility Matrix
Input / Output
Serial ATA
  • 1x 3.5 " SATA hard drive supported
LAN
  • 2x RJ45 LAN ports
USB
  • 2x USB rear ports
  • 1x USB on-board
  • 1x USB internal header (2 ports)
  • Total 5 USB 2.0 Compliant
VGA
  • 1x VGA port
Keyboard / Mouse
  • PS/2 keyboard and mouse ports
Serial Port / Header
  • 1x Fast UART 16550 serial port
  • 1x internal header
System BIOS
BIOS Type
  • 32Mb SPI Flash EEPROM with AMI BIOS
BIOS Features
  • DMI 2.3
  • PCI 2.2
  • ACPI 1.0 / 2.0
  • USB Keyboard support
  • SMBIOS 2.3
Chassis
Form Factor
  • 1U Rackmount
Model
  • CSE-512-200B
Dimensions
Height
  • 1.7" (43mm)
Width
  • 16.8" (426mm)
Depth
  • 14.0" (356mm)
Gross Weight
  • 17 lbs (7.7kg)
Available Colors
  • Black
Front Panel
Buttons
  • Power On/Off button
  • System Reset button
LEDs
  • Power LED
  • Hard drive activity LED
  • 2x Network activity LEDs
  • System Overheat LED
Ports
  • 2x USB Ports (2.0 Ready)
Drive Bays
Internal Bay
  • 1x 3.5" internal SATA drive bay
System Cooling
Fans
  • 1x 100mm blower fan
Power Supply
200W Low Noise High-Efficiency AC-DC power supply w/ PFC
AC Voltage
  • 100 - 240V, 50-60Hz, 4-2 Amp Max
+5V
  • 8.0 Amp
+5V standby
  • 2.0 Amp
+12V
  • 16.0 Amp
-12V
  • 0.5 Amp
+3.3V
  • 8.0 Amp
Certification80 PLUS   Certified
PC Health Monitoring
CPU
  • Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, +3.3V Standby, +5V Standby, VBAT, HT, Memory, Chipset Voltages.
  • 5-Phase-switching voltage regulator with auto-sense from 0.8375V-1.60V
FAN
  • Total of 5 fan headers supporting up to 5 fans
  • Five 4-pin fan headers
  • 5x fans with tachometer status monitoring
  • Status monitor for speed control
  • Status monitor for on/off control
  • Support 3-pin fans (w/o speed control)
  • Low noise fan speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • FC temperature sensing logic
  • Thermal Monitor 2 (TM2) support
  • PECI
LED
  • CPU / System Overheat LED
  • +5V Standby alert LED
Other Features
  • Chassis intrusion detection
  • Chassis intrusion header
Operating Environment
Environmental Spec.
  • Operating Temperature: 10°to 35°C (50°to 95°F)
  • Non-operating Temperature: -40°to 70°C (-40°to 158°F)
  • Operating Relative Humidity: 8% to 90% (non-condensing)
  • Non-operating Relative Humidity: 5 to 95% (non-condensing)
Gerelateerde producten van Supermicro
Supermicro SYS-5016I-MRF

Supermicro Product ID: SYS-5016I-MRF

(EOL)X8SIL-F, 512-200B

Systems Intel

€517,30
Op voorraad
SYS-5016I-MRF
Supermicro SYS-5016I-MRHF

Supermicro Product ID: SYS-5016I-MRHF

Supermicro | Products | SuperServers | 1U | 5016I-MRHF - 501 - 5016 - 5016I - 5016I - 5016I-M - 5016I-MRHF - SS501 - SS5016 - SS5016I - SS5016I-

Systems Intel

€538,50
Beschikbaarheid opvragen
SYS-5016I-MRHF

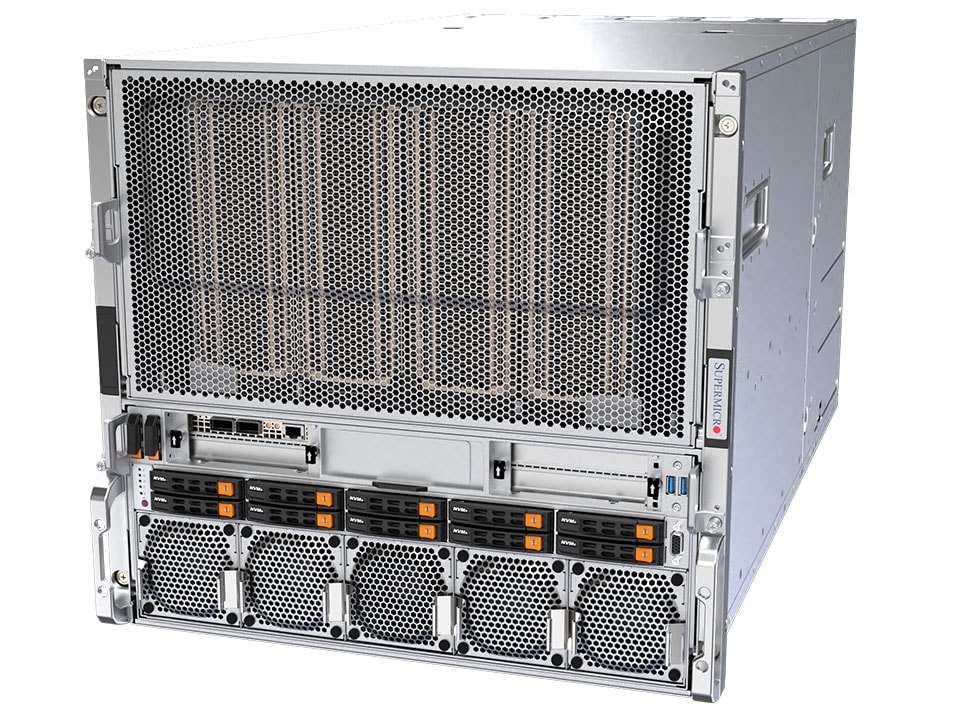

Supermicro 10U GPU SuperServer SYS-A21GE-NBRT New (SYS-A21GE-NBRT-G1)

Supermicro Product ID: SYS-A21GE-NBRT-G1

Systems Intel

(Prijs op aanvraag)
Beschikbaarheid opvragen
10U GPU SuperServer SYS-A21G...
Supermicro 10U SuperServer 9029GP-TNVRT (Complete System Only) (SYS-9029GP-TNVRT)

Supermicro Product ID: SYS-9029GP-TNVRT

9029GP-TNVRT | 10U | SuperServer | Products | Super Micro Computer - Inc. - 9029GP - 9029GP-TNVRT - SS9029GP-TNVRT - SYS-9029GP-TNVRT -

Systems Intel

€21.300,10
Op voorraad
10U SuperServer 9029GP-TNVRT...
Supermicro 1U CloudDC SuperServer SYS-112C-TN (SYS-112C-TN)

Supermicro Product ID: SYS-112C-TN

Systems Intel

(Prijs op aanvraag)
Beschikbaarheid opvragen
1U CloudDC SuperServer SYS-1...

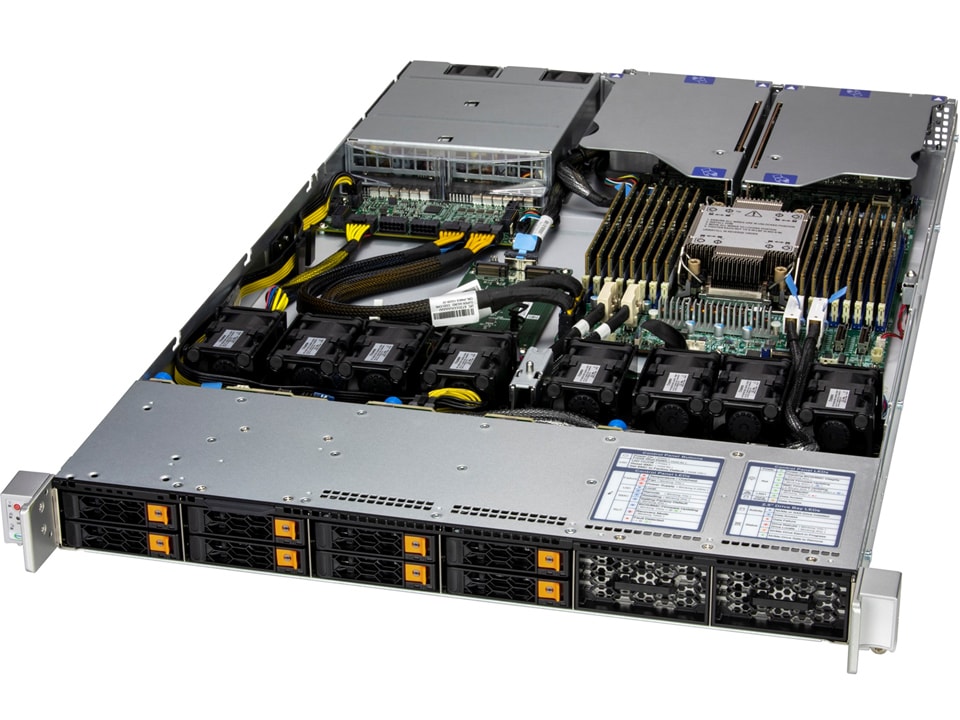

Supermicro 1U CloudDC SuperServer SYS-112C-TN (SYS-112C-TN-G1)

Supermicro Product ID: SYS-112C-TN-G1

Systems Intel

(Prijs op aanvraag)
Beschikbaarheid opvragen
1U CloudDC SuperServer SYS-1...
Supermicro 1U CloudDC SuperServer SYS-120C-TN10R (SYS-120C-TN10R)

Supermicro Product ID: SYS-120C-TN10R

SYS-120C-TN10R | 1U | SuperServer | Products | Supermicro - SYS-120C-TN10R - SS120C-TN10R - 1U - CloudDC - X12 - System - Rackmount Servers - 1U Dual Processor - rackmount - 1u-dp

Systems Intel

€1.690,43
Op voorraad
1U CloudDC SuperServer SYS-1...

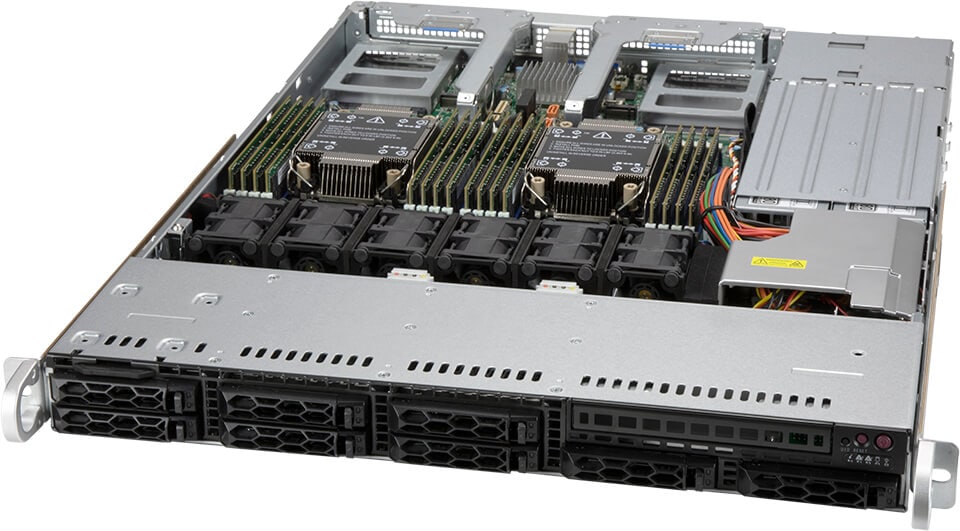

Supermicro 1U CloudDC SuperServer SYS-120C-TR (SYS-120C-TR)

Supermicro Product ID: SYS-120C-TR

SYS-120C-TR | 1U | SuperServer | Products | Supermicro - SYS-120C-TR - SS120C-TR - 1U - CloudDC - X12 - System - Rackmount Servers - 1U Dual Processor - rackmount - 1u-dp

Systems Intel

€1.676,51
Op voorraad
1U CloudDC SuperServer SYS-1...

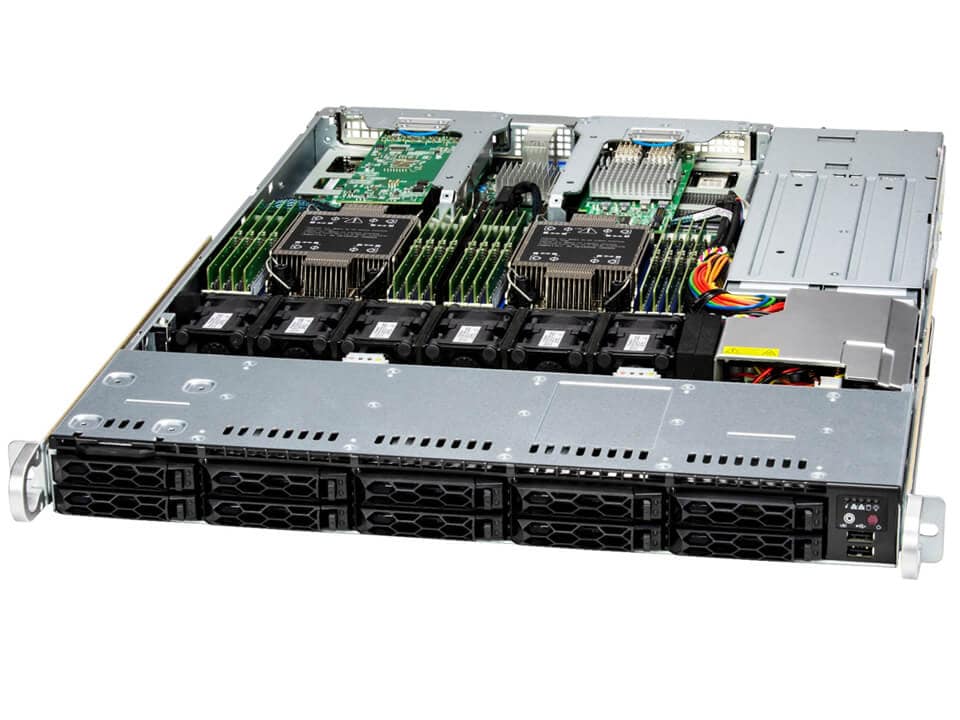

Supermicro 1U CloudDC SuperServer SYS-121C-TN10R (SYS-121C-TN10R)

Supermicro Product ID: SYS-121C-TN10R

SYS-121C-TN10R | 1U | SuperServer | Products | Supermicro - SYS-121C-TN10R - SS121C-TN10R - 1U - CloudDC - X13 - System - Rackmount Servers - 1U Dual Processor - rackmount - 1u-dp

Systems Intel

(Prijs op aanvraag)
Beschikbaarheid opvragen
1U CloudDC SuperServer SYS-1...

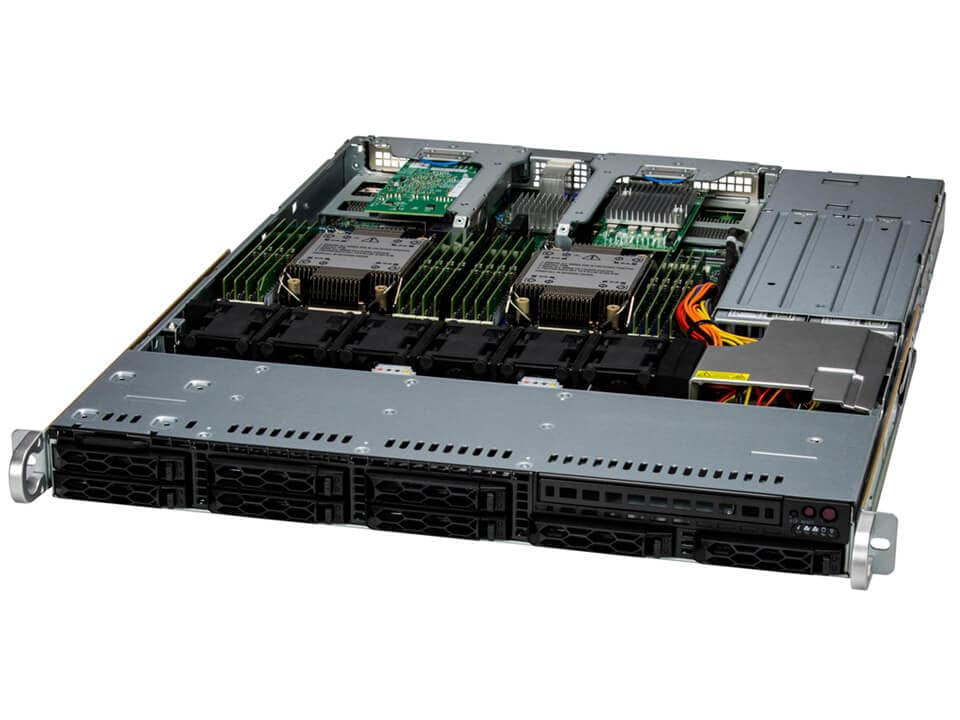

Supermicro 1U CloudDC SuperServer SYS-121C-TN2R (SYS-121C-TN2R)

Supermicro Product ID: SYS-121C-TN2R

SYS-121C-TN2R | 1U | SuperServer | Products | Supermicro - SYS-121C-TN2R - SS121C-TN2R - 1U - CloudDC - X13 - System - Rackmount Servers - 1U Dual Processor - rackmount - 1u-dp

Systems Intel

(Prijs op aanvraag)
Beschikbaarheid opvragen
1U CloudDC SuperServer SYS-1...

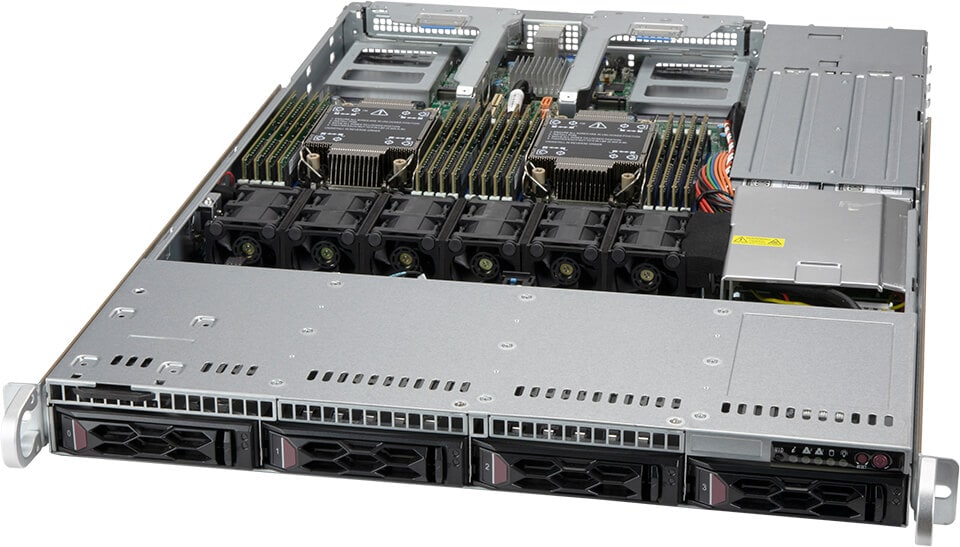

Supermicro 1U CloudDC SuperServer SYS-610C-TR (SYS-610C-TR)

Supermicro Product ID: SYS-610C-TR

SYS-610C-TR | 1U | SuperServer | Products | Supermicro - SYS-610C-TR - SS610C-TR - 1U - CloudDC - X12 - System - Rackmount Servers - 1U Dual Processor - rackmount - 1u-dp

Systems Intel

€1.644,40
Beschikbaarheid opvragen
1U CloudDC SuperServer SYS-6...

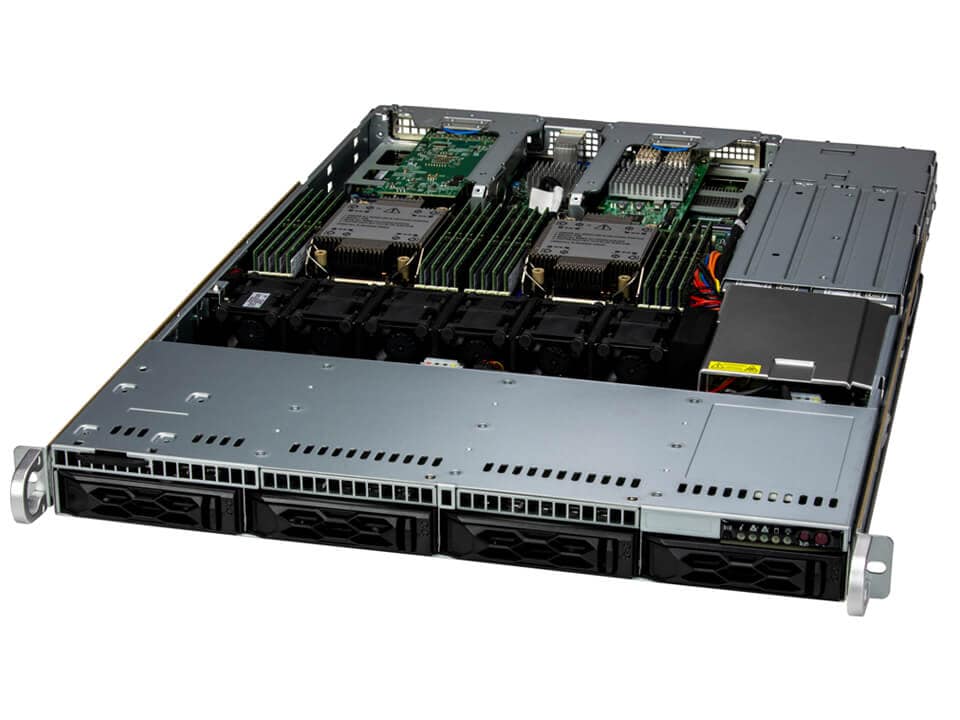

Supermicro 1U CloudDC SuperServer SYS-611C-TN4R (SYS-611C-TN4R)
