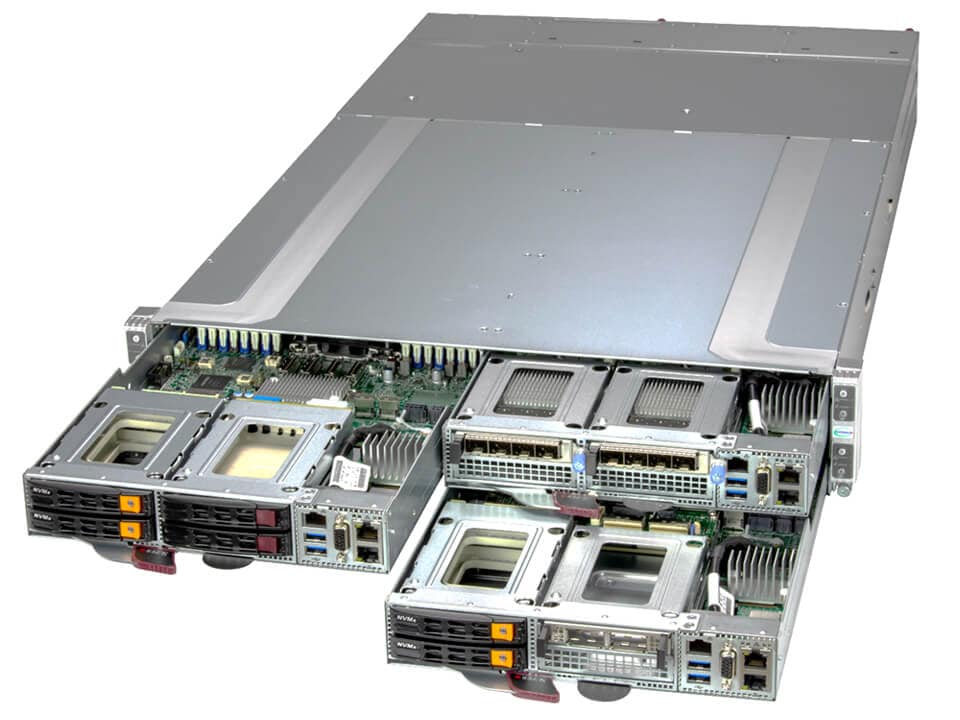

2U GrandTwin SuperServer SYS-211GT-HNTF (SYS-211GT-HNTF)

SYS-211GT-HNTF | 2U | SuperServer | Products | Supermicro - SYS-211GT-HNTF - SS211GT-HNTF - 2U - GrandTwin - X13 - System - Twin Servers - GrandTwin - twin - GrandTwin

Loading price... (€0.00)

Loading price...

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: SYS-211GT-HNTF

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 301 85 85

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

Key Applications

HPC
Cloud Gaming
MEC (Multi-Access Edge Computing)
Multi-Purpose CDN
High-availability Cache Cluster
Telco Edge Cloud
EDA (Electric Design Automation)
Mission Critical Web Applications

Key Features

Four hot-pluggable systems (nodes) in a 2U form factor. Each node supports the following:

Single-Socket, 5th/4th Gen Intel® Xeon® Scalable processors up to 350W TDP
Intel® C741
16 DIMM Slots supporting up to 4TB of memory; ECC RDIMMs up to DDR5-5600
Optional AIOM module or PCIe 5.0 x16
Integrated GrandTwin I/O Module with BMC, 2x USB, VGA and 2x 10GbE or 2x 25GbE
Two optional storage modules. Each module supports 2x NVMe or SATA drive bays
2200W Redundant Power Supplies Titanium Level (96%+); Shared Power Design

...

Get Pricing

Product SKUs
SuperServer SYS-211GT-HNTF

Motherboard
Super X13SET-G

Processor (per Node)
CPU	Single Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors Supports Intel Xeon CPU Max Series with high bandwidth memory (HBM)
Core Count	Up to 64C/128T; Up to 320MB Cache
Note	Supports up to 350W TDP CPUs (Air Cooled)

System Memory (per Node)
Memory	Slot Count: 16 DIMM slots/2 Channels Max Memory (2DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM View Memory Options

On-Board Devices (per Node)
Chipset	Intel® C741
Network Connectivity	Via IO Module View AIOM Options View AOC Options
NVMe	View NVMe Options

Input / Output (per Node)
LAN	1 RJ45 1 GbE Dedicated BMC LAN port(s)
USB	2 USB 3.0 port(s)
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB Flash ROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment
CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 8+4 Phase-switching voltage regulator
