8U GPU SuperServer SYS-821GE-TNHR (SYS-821GE-TNHR)

Key Features

5th/4th Gen Intel® Xeon® Scalable processor support
Support for NVIDIA HGX™ H100/H200 8-GPU
32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
8 PCIe Gen 5.0 X16 LP2 PCIe Gen 5.0 X16 FHHL Slots, 2 PCIe Gen 5.0 X16 FHHL Slots (optional)
Flexible networking options
2 M.2 NVMe for boot drive only16x 2.5" Hot-swap NVMe drive bays (12x by default, 4x optional)3x 2.5" Hot-swap SATA drive baysOptional: 8x 2.5" Hot-swap SATA drive bays
10 heavy duty fans with optimal fan speed control
Optional: 8x 3000W (4+4) Redundant Power Supplies, Titanium Level6x 3000W (4+2) Redundant Power Supplies, Titanium Level

€20.713,20

(Excl. btw)

€25.062,97

(Incl. btw)

Verzending binnen 2-3 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Supermicro Product ID: SYS-821GE-TNHR

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31(0)85-3018585

Begin Chat

Specificaties

Key Applications

High Performance Computing
AI/Deep Learning Training
Industrial Automation, Retail
Healthcare
Conversational AI
Business Intelligence & Analytics
Drug Discovery
Climate and Weather Modeling
Finance & Economics

Key Features

5th/4th Gen Intel® Xeon® Scalable processor support

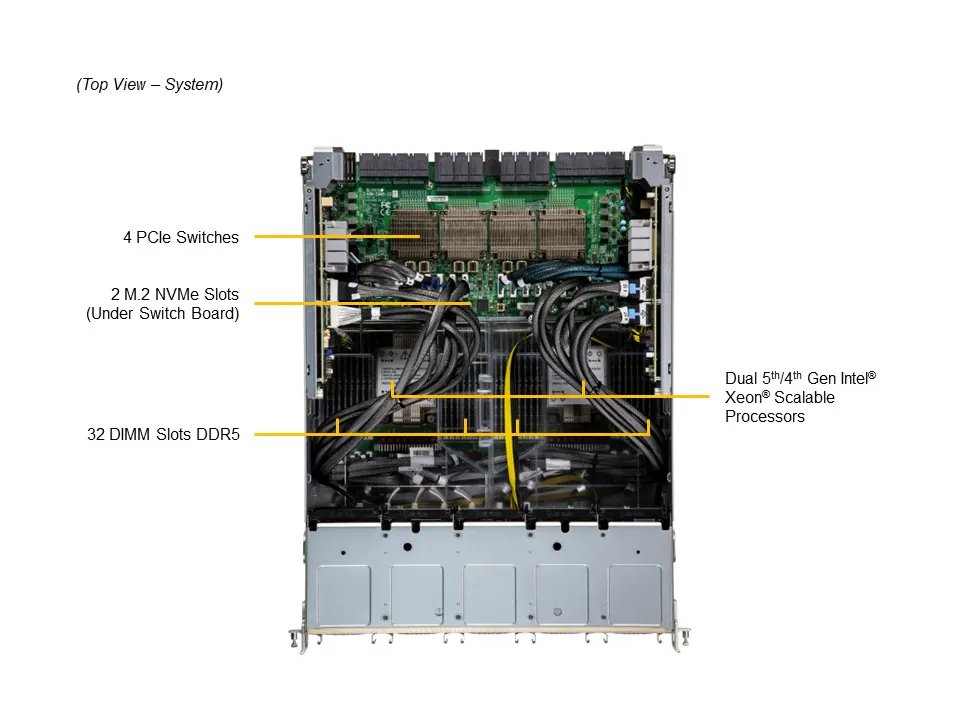

32 DIMM slots Up to 8TB: 32x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
- 8 PCIe Gen 5.0 X16 LP
- 2 PCIe Gen 5.0 X16 FHHL Slots, 2 PCIe Gen 5.0 X16 FHHL Slots (optional)
Flexible networking options
- 2 M.2 NVMe for boot drive only

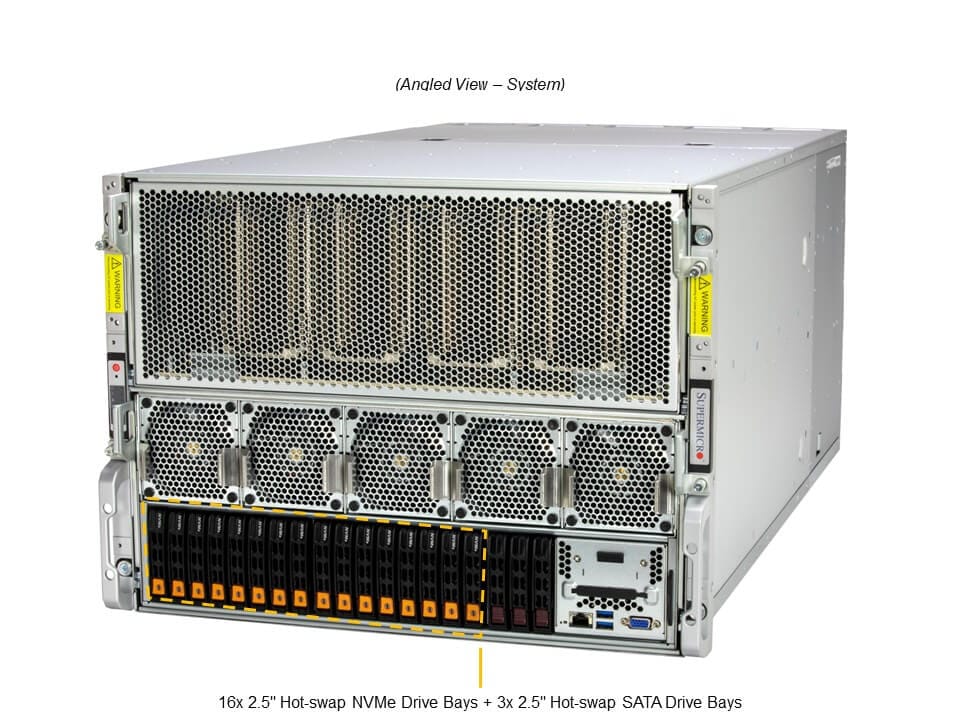

- 16x 2.5" Hot-swap NVMe drive bays (12x by default, 4x optional)
- 3x 2.5" Hot-swap SATA drive bays
- Optional: 8x 2.5" Hot-swap SATA drive bays
10 heavy duty fans with optimal fan speed control
- Optional: 8x 3000W (4+4) Redundant Power Supplies, Titanium Level
- 6x 3000W (4+2) Redundant Power Supplies, Titanium Level

...

Get Pricing

Product SKUs
SuperServer SYS-821GE-TNHR

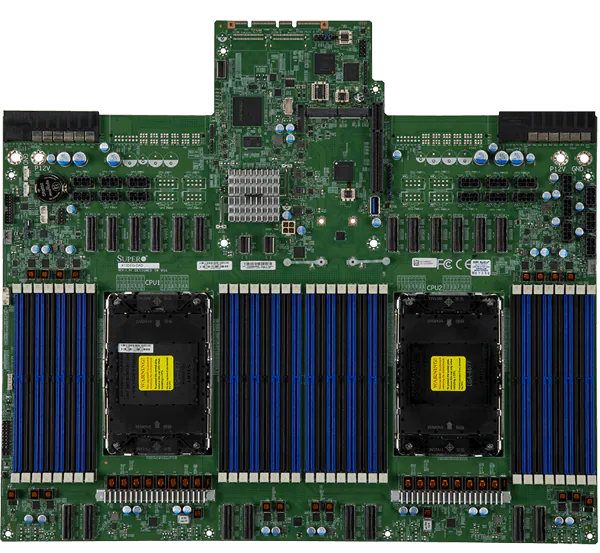

Motherboard
Super X13DEG-OAD

Processor
CPU	Dual Socket E (LGA-4677) 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count	Up to 64C/128T; Up to 320MB Cache per CPU
Note	Supports up to 350W TDP CPUs (Air Cooled) Supports up to 385W TDP CPUs (Liquid Cooled)

GPU
Max GPU Count	Up to 8 onboard GPU(s)

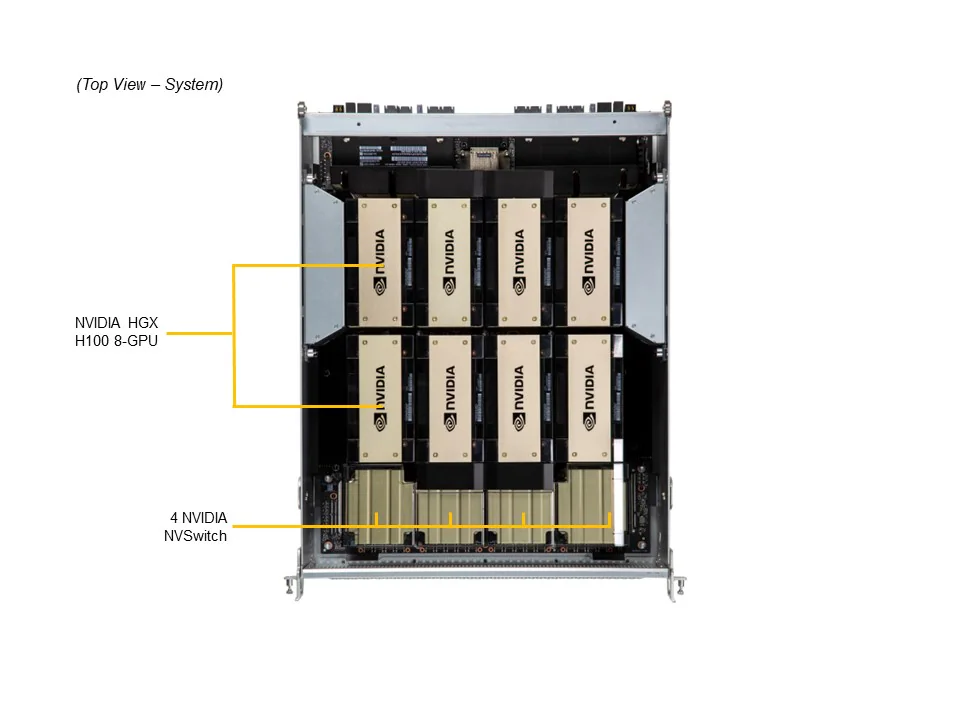

Supported GPU	NVIDIA SXM: HGX H100 8-GPU (80GB) View GPU Options
CPU-GPU Interconnect	PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink® with NVSwitch™
Certification

System Memory
Memory	Slot Count: 32 DIMM slots Max Memory (1DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM Max Memory (2DPC): Up to 8TB 4400MT/s ECC DDR5 RDIMM View Memory Options
Memory Voltage	1.1V

On-Board Devices
Chipset	Intel® C741
Network Connectivity	2 RJ45 10GbE with Intel® X550-AT2 (optional) 2 SFP28 25GbE with Broadcom® BCM57414 (optional) 2 RJ45 10GbE with Intel® X710-AT2 (optional) View AOC Options
NVMe	View NVMe Options

Input / Output
Video	1 VGA port(s)

System BIOS
BIOS Type	AMI 32MB SPI Flash EEPROM

Management
Software	SuperCloud Composer Supermicro Server Manager (SSM) Supermicro Update Manager (SUM) Supermicro SuperDoctor® 5 (SD5) Super Diagnostics Offline (SDO) Supermicro Thin-Agent Service (TAS) SuperServer Automation Assistant (SAA) New!
Power configurations	Power-on mode for AC power recovery ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0 Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features	Cryptographically Signed Firmware Secure Boot Secure Firmware Updates Automatic Firmware Recovery Supply Chain Security: Remote Attestation Runtime BMC Protections System Lockdown

PC Health Monitoring
CPU	Monitors for CPU Cores, Chipset Voltages, Memory 8+4 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
