Supermicro4U GPU SuperServer SYS-420GP-TNR (SYS-420GP-TNR)
Key Features
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  • Intel® C621A Chipset
  • 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  • AIOM/OCP 3.0 Support12 PCIe Gen 4.0 X16 FHFL Slots
  • Flexible networking options
  • Total 24x 2.5" Hot-swap drive bays8x HOT SWAP 2.5” NVMe8x HOT SWAP 2.5” SATA8x HOT SWAP 2.5” SATA/SAS (AOC required)2x M.2 NVMe for boot drive only
  • 8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  • 4x 2000W redundant Titanium level power supplies
Expertise in geïntegreerde oplossingen
Ongeëvenaarde kwaliteitsborging
24/7 op maat gemaakte klantenondersteuning
Supermicro Direct Partner

Supermicro

4U GPU SuperServer SYS-420GP-TNR (SYS-420GP-TNR)

Key Features
  • Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  • Intel® C621A Chipset
  • 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
  • AIOM/OCP 3.0 Support12 PCIe Gen 4.0 X16 FHFL Slots
  • Flexible networking options
  • Total 24x 2.5" Hot-swap drive bays8x HOT SWAP 2.5” NVMe8x HOT SWAP 2.5” SATA8x HOT SWAP 2.5” SATA/SAS (AOC required)2x M.2 NVMe for boot drive only
  • 8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  • 4x 2000W redundant Titanium level power supplies

Vraag offerte aan voor prijsinformatie

6.745,61
(Excl. btw)
6745.61
8.162,19
(Incl. btw)
Beschikbaarheid opvragen

Supermicro  ID: SYS-420GP-TNR

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

Specificaties

Key Applications

  • High Performance Computing
  • Rendering
  • VDI
  • AI/Deep Learning Training

Key Features

  1. Dual Socket P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable Processors
  2. Intel® C621A Chipset
  3. 32 DIMM Slots; Up to 8TB DRAM; Up to 8TB Intel® Optane™ Persistent Memory (up to 12TB with DRAM); 3200/2933/2666 ECC DDR4 LRDIMM;RDIMM; Intel® Optane™ Persistent Memory 200 series
    • AIOM/OCP 3.0 Support
    • 12 PCIe Gen 4.0 X16 FHFL Slots
  4. Flexible networking options

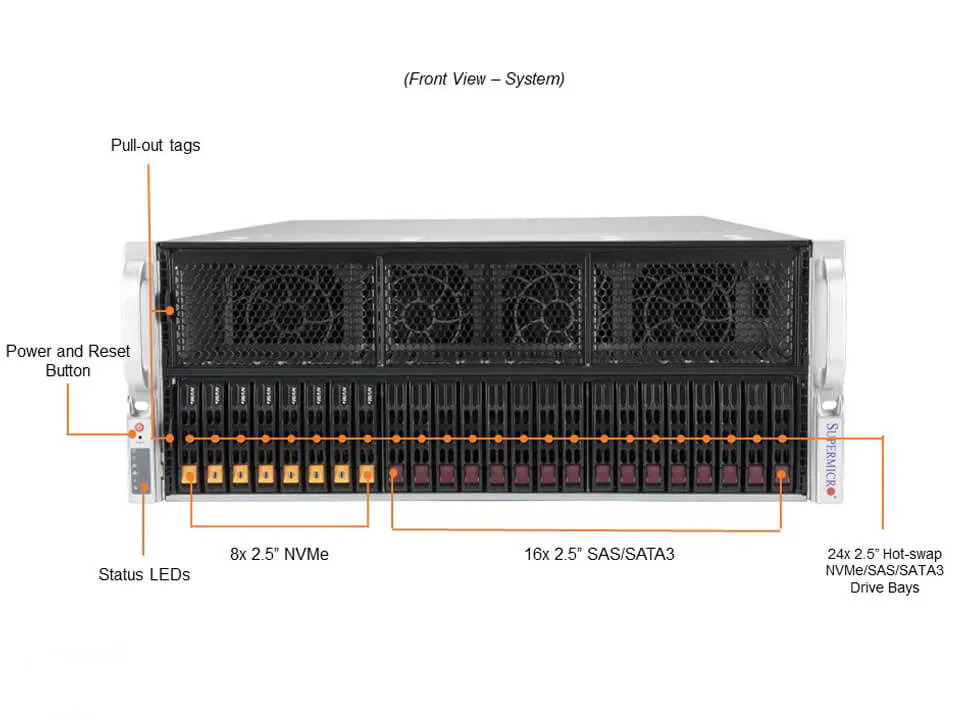

    • Total 24x 2.5" Hot-swap drive bays
    • 8x HOT SWAP 2.5” NVMe
    • 8x HOT SWAP 2.5” SATA
    • 8x HOT SWAP 2.5” SATA/SAS (AOC required)
    • 2x M.2 NVMe for boot drive only
  5. 8 Hot-Swap Heavy Duty Fans with Optimal Fan Speed Control
  6. 4x 2000W redundant Titanium level power supplies
...
...
SYS-420GP-TNR
Product SKUs
SuperServer SYS-420GP-TNR

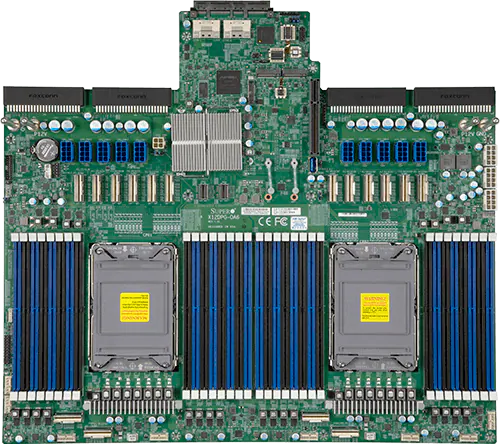

Motherboard
Super X12DPG-OA6
Processor
CPU
  • Dual Socket P+ (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 10 double-width or 10 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: H100, L40, RTX A5500, A40, RTX A6000, RTX A5000, RTX A4500, RTX A4000, RTX A2000, A40, A30, A16, A2, A100, A10
  • Intel PCIe: Intel Data Center GPU Flex 170
  • View GPU Options
CPU-GPU Interconnect
  • PCIe 4.0 x16 Switch Dual-Root
GPU-GPU Interconnect
  • NVIDIA® NVLink® Bridge (optional)
Certification
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
Chipset
  • Intel® C621A
Network Connectivity
  • 2 RJ45 1GbE with Intel® I350
  • View AOC Options
NVMe
  • View NVMe Options
Input / Output
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 +1 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
