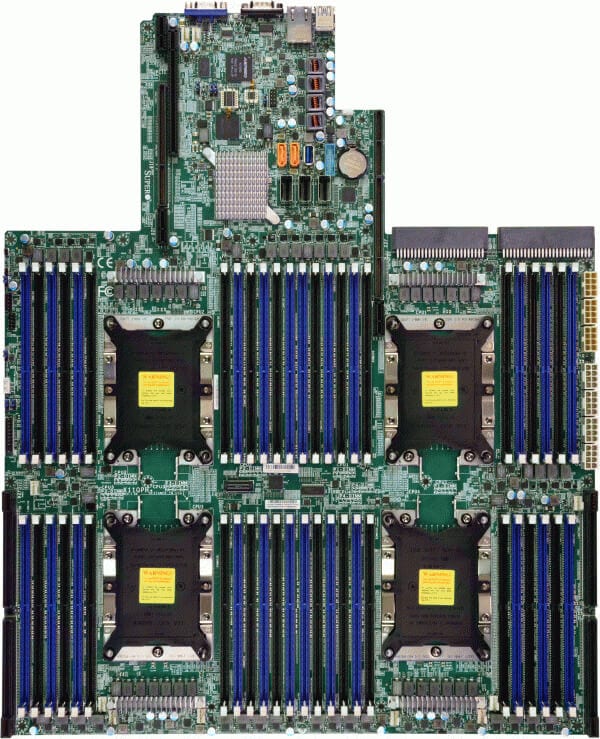

Motherboard X11QPH+ Quad 2nd Gen Intel® Xeon® Scalable Processor

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors - Proprietary - Intel® C621 - Quad - Up to 205W TDP - DDR4 3DS RDIMM12TB - PCI-E 3.0

Loading price... (€0.00)

Loading price...

Verzending binnen 7-10 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: MBD-X11QPH+

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 301 85 85

Begin Chat

Now online: 9.00 am - 17.30 pm

Loading: Specificaties...

Specificaties

P/N: X11QPH+

Key Features

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Quad Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s
Intel® C621
Up to 12TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 12TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 12TB 3DS ECC DCPMM, DDR4-2666MHz, in 48 DIMM slots
1 PCIe 3.0 x32 Left Riser._x000D_ _x000D_ 1 PCIe 3.0 x40 Ultra Riser._x000D_ _x000D_ 1 PCIe 3.0 x8 in x16 slot rear Middle Riser. _x000D_ _x000D_ 1 PCIe 3.0 x32 for 2U (or x48+x8 for 4U) on front for NVMe card support. _x000D_ _x000D_ 1 PCIe 3.0 (x32 for 2U or x48 for 4U) on front for NVMe card support.
Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
1 VGA port
Networking options provided via Ultra Riser

...

Optimized Servers

SYS-2049U-TR4 SYS-8049U-E1CR4T

Product SKUs
MBD-X11QPH+

Physical Stats
Form Factor	Proprietary
Dimension	16.8" x 20.5" (42.67cm x 52.07cm)

Processor
CPU	2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Quad Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
Core	Up to 28 cores
Note	BIOS version 3.0 or above is required to support 2nd Gen Intel® Xeon® Scalable processors

System Memory
Memory Capacity	48 DIMM slots Up to 12TB 3DS Intel® Optane™ Persistent Memory 200 Series, DDR4-2666MT/s Up to 12TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 12TB 3DS ECC RDIMM, DDR4-2933MT/s
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes	LRDIMM: 8GB, 16GB, 32GB, 64GB, 128GB RDIMM: 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel® C621
IPMI	ASPEED AST2500
Graphics	1 ASPEED AST2500 BMC port(s)
Network Controllers	Networking options provided via Ultra Riser
SATA	Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10

Input / Output
SATA	2 SATA3 (6Gbps) port(s) 12 SATA3 (6Gbps) port(s)
USB	2 USB 2.0 port(s) (2 via header) 1 USB 3.2 Gen1 port(s) (1 type A) 2 USB 3.0 port(s) (2 rear)
Video Output	1 VGA port(s)
Serial Port	1 COM Port(s) (1 rear)
DOM	2 SuperDOM (Disk on Module) power connector
TPM	1 TPM Header

Expansion Slots
PCIe	1 PCIe 3.0 x32 Left Riser. 1 PCIe 3.0 x40 Ultra Riser. 1 PCIe 3.0 x8 in x16 slot rear Middle Riser. 1 PCIe 3.0 x32 for 2U (or x48+x8 for 4U) on front for NVMe card support. 1 PCIe 3.0 (x32 for 2U or x48 for 4U) on front for NVMe card support.

System BIOS
BIOS Type	AMI UEFI

Management
Software	SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, IPMI2.0, Watchdog
System Management Software	SMCIPMITool

PC Health Monitoring
Voltage	VBAT, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 4 -fan status, +5V standby, +5V, +3.3V, +12V, +1.8V, 5 Phase-switching voltage regulator
LED	CPU / System Overheat LED
FAN	4x 4-pin fan headers (up to 4 fans) PWM fan speed control Low noise fan speed control Status monitoring for speed control Status monitoring for on/off control
Other Features	SDDC RoHS, Halogen Free 4x 8-pin GPU power connectors
