SupermicroSYS-6013P-TSuper Micro Computer - Inc. - Products | SuperServers | 1U | 6013P-T / 6013P-TB - 601 - 6013 - 6013P - 6013P - SS601 - SS6013 - SS6013P - SS6013P - SS6013P-T
Expertise in geïntegreerde oplossingen
Ongeëvenaarde kwaliteitsborging
24/7 op maat gemaakte klantenondersteuning
OndersteuningOplossingen
Supermicro logo
Supermicro Direct Partner

Supermicro

SYS-6013P-T

Super Micro Computer - Inc. - Products | SuperServers | 1U | 6013P-T / 6013P-TB - 601 - 6013 - 6013P - 6013P - SS601 - SS6013 - SS6013P - SS6013P - SS6013P-T

Vraag gratis offerte aan voor prijsinformatie. Binnen 1 werkdag ontvangt u een prijsopgave van een expert.

€0,00
(Excl. btw)
€0.00
€0,00
(Incl. btw)

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Beschikbaarheid opvragen
Minimaal 1 jaar Carry-in-garantie voor servers
Wij assembleren en testen uw bestelling zorgvuldig

Supermicro  ID: SYS-6013P-T

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

Begin Chat

currently offline

Specificaties

Key Features
1. Dual Intel® Xeon® up to 3.20 GHz
2. Up to 12GB DDR 266/200 SDRAM
3. 1 x 64-bit 133/100MHz Full-height, Full-length PCI-X eExpansion Slot
4. 1 x 64-bit 66MHz Low-profile PCI-X Expansion Slot
5. 2 x Intel 82546EB Gigabit Ethernet
6. 4 x 3.5" Hot-swap Serial ATA Drive Bays
7. 500W Coldswap Power Supply

Product SKUs - Discontinued SKU (EOL). Please contact sales-rep for alternative options.
SYS-6013P-T
  • SuperServer 6013P-T (Beige)
SYS-6013P-TB
  • SuperServer 6013P-TB (Black)
Motherboard
Super X5DPR-TG2+
Processor/Cache
CPU• Dual mPGA604 ZIF Sockets
• Supports up to two Intel® Xeon® processor(s) with 1MB integrated Advanced Transfer Cache up to 3.20GHz
System Bus533MHz/400MHz system bus
System Memory
Memory Capacity• Six 184-pin DIMM sockets
• Supports up to 12 GB DDR266/200 memory
• Dual channel memory bus
• Memory must be populated in pairs
Memory TypeDDR266/200 registered ECC SDRAM 72-bit, 184-pin gold-plated DIMMs
DIMM Sizes256 MB, 512 MB, 1 GB, 2 GB
Memory Voltage2.5 V only
On-Board Devices
Chipset• Intel® E7501 chipset
• MCH + ICH3-S + P64H2
IPMISupport for Intelligent Platform Management Interface v.1.5 (Optional)
Serial ATA• Dual Silicon 3112A controllers
• Four Serial ATA ports
• RAID 0, 1 Supported
RAIDSupport for Zero-Channel RAID ZCR Card (Card NOT included)
Network Controllers• Dual Port Intel® 82546EB Gigabit Ethernet
• Supports 10BASE-T, 100BASE-TX, and 1000BASE-T, RJ45 output
GraphicsATI Rage XL SVGA PCI video controller with 8 MB of video memory
Expansion Slots
• 1x full-height, full-length 64-bit 133/100MHz PCI-X (3.3V) expansion slot (Riser card required) w/ VXB (Virtual Extended Bus) slot
• 1x low-profile slim 64-bit 66MHz PCI-X (3.3V) expansion slot (Riser card required)
Input / Output
IDE • Dual EIDE channels support up to four UDMA IDE devices
• Supports UDMA Mode 5, PIO Mode 4, and ATA/100
USB2x USB ports
Serial Ports1x Fast UART 16550 serial ports
Floppy1 Floppy controller; 1.44 MB, 2.88 MB, 3-mode support
Keyboard / MousePS/2 keyboard and mouse ports
System BIOS
BIOS Type4Mb Flash EEPROM with Phoenix® BIOS
BIOS Features• Plug and Play (PnP)
• SMBIOS 2.3
• DMI 2.1
• ACPI 1.0
• BIOS rescue hot keys
• Hardware BIOS virus protection
Chassis
Form Factor1U Rackmount
ModelSC813T-500
Dimensions
Height1.7" (43mm)
Width17.2" (437mm)
Depth25.6" (650mm)
Gross Weight42 lbs (19.1 kg)
Available ColorsBeige, Black
Front Panel
Buttons • Power On/Off button
• System Reset button
LEDs • Power LED
• Hard drive activity LED
• 2x Network activity LEDs
• System Overheat LED
Portsnone
Drive Bays
Hot-swap4x 3.5"SATA Hot-swap drive bays
Peripheral Drives
FloppyTEAC 3.5" 1.44MB Slim Floppy Drive
CD-ROMTEAC Slim 24x CD-ROM drive
SATA Backplane
1x 1U Serial ATA backplane
System Cooling
Fans2x 10cm blower fans
Power Supply
Cold-swappable 500W AC power supply module w/ PFC
[ 20-pin, (8-pin=12V) ]
AC Voltage• 100 - 240V, 60-50Hz, 10 Amp
DC Output• 5V + 3.3V ≤ 160W
+5V30.0 amp
+5V standby2.0 amp
+12V39.0amp
-12V1.0 amp
+3.3V21.0 amp
PC Health Monitoring
CPU• Monitors for CPU Cores, +1.8V, +3.3V, +5V, ±12V, 3.3V Standby
• CPU Core 3-Phase-switching voltage regulator with auto-sense from 1.3V-1.5V
• Adjustable CPU clock frequency ratio settings (via BIOS)
FAN• Total of four 3-pin fan headers
• 3x fans with tachometer monitoring
• Overheat backup fan connector
• Status monitor with firmware/software on/off control
Temperature• Monitoring for CPU, chassis, environment
• CPU thermal trip support
LED• CPU Overheat LED
• System Overheat LED
• Suspend-state indicator LED
Other Features• Chassis intrusion detection
• Chassis intrusion header
• Chipkill support
Gerelateerde producten van Supermicro
Supermicro 10U GPU SuperServer SYS-A21GE-NBRT New (SYS-A21GE-NBRT-G1)

Supermicro Product ID: SYS-A21GE-NBRT-G1

Systems Intel

(Prijs op aanvraag)
Beschikbaarheid opvragen
10U GPU SuperServer SYS-A21G...
Supermicro 10U SuperServer 9029GP-TNVRT (Complete System Only) (SYS-9029GP-TNVRT)

Supermicro Product ID: SYS-9029GP-TNVRT

9029GP-TNVRT | 10U | SuperServer | Products | Super Micro Computer - Inc. - 9029GP - 9029GP-TNVRT - SS9029GP-TNVRT - SYS-9029GP-TNVRT -

Systems Intel

€21.348,60
Op voorraad
10U SuperServer 9029GP-TNVRT...
Supermicro 1U CloudDC SuperServer SYS-112C-TN (SYS-112C-TN)

Supermicro Product ID: SYS-112C-TN

Systems Intel

(Prijs op aanvraag)
Beschikbaarheid opvragen
1U CloudDC SuperServer SYS-1...
Supermicro 1U CloudDC SuperServer SYS-112C-TN (SYS-112C-TN-G1)

Supermicro Product ID: SYS-112C-TN-G1

Systems Intel

(Prijs op aanvraag)
Beschikbaarheid opvragen
1U CloudDC SuperServer SYS-1...
Supermicro 1U CloudDC SuperServer SYS-120C-TN10R (SYS-120C-TN10R)

Supermicro Product ID: SYS-120C-TN10R

SYS-120C-TN10R | 1U | SuperServer | Products | Supermicro - SYS-120C-TN10R - SS120C-TN10R - 1U - CloudDC - X12 - System - Rackmount Servers - 1U Dual Processor - rackmount - 1u-dp

Systems Intel

€1.694,28
Op voorraad
1U CloudDC SuperServer SYS-1...
Supermicro 1U CloudDC SuperServer SYS-120C-TR (SYS-120C-TR)

Supermicro Product ID: SYS-120C-TR

SYS-120C-TR | 1U | SuperServer | Products | Supermicro - SYS-120C-TR - SS120C-TR - 1U - CloudDC - X12 - System - Rackmount Servers - 1U Dual Processor - rackmount - 1u-dp

Systems Intel

€1.680,33
Op voorraad
1U CloudDC SuperServer SYS-1...
Supermicro 1U CloudDC SuperServer SYS-121C-TN10R (SYS-121C-TN10R)

Supermicro Product ID: SYS-121C-TN10R

SYS-121C-TN10R | 1U | SuperServer | Products | Supermicro - SYS-121C-TN10R - SS121C-TN10R - 1U - CloudDC - X13 - System - Rackmount Servers - 1U Dual Processor - rackmount - 1u-dp

Systems Intel

(Prijs op aanvraag)
Beschikbaarheid opvragen
1U CloudDC SuperServer SYS-1...
Supermicro 1U CloudDC SuperServer SYS-121C-TN2R (SYS-121C-TN2R)

Supermicro Product ID: SYS-121C-TN2R

SYS-121C-TN2R | 1U | SuperServer | Products | Supermicro - SYS-121C-TN2R - SS121C-TN2R - 1U - CloudDC - X13 - System - Rackmount Servers - 1U Dual Processor - rackmount - 1u-dp

Systems Intel

(Prijs op aanvraag)
Beschikbaarheid opvragen
1U CloudDC SuperServer SYS-1...
Supermicro 1U CloudDC SuperServer SYS-610C-TR (SYS-610C-TR)

Supermicro Product ID: SYS-610C-TR

SYS-610C-TR | 1U | SuperServer | Products | Supermicro - SYS-610C-TR - SS610C-TR - 1U - CloudDC - X12 - System - Rackmount Servers - 1U Dual Processor - rackmount - 1u-dp

Systems Intel

€1.648,14
Beschikbaarheid opvragen
1U CloudDC SuperServer SYS-6...
Supermicro 1U CloudDC SuperServer SYS-611C-TN4R (SYS-611C-TN4R)

Supermicro Product ID: SYS-611C-TN4R

SYS-611C-TN4R | 1U | SuperServer | Products | Supermicro - SYS-611C-TN4R - SS611C-TN4R - 1U - CloudDC - X13 - System - Rackmount Servers - 1U Dual Processor - rackmount - 1u-dp

Systems Intel

(Prijs op aanvraag)
Beschikbaarheid opvragen
1U CloudDC SuperServer SYS-6...
Supermicro 1U GPU SuperServer SYS-120GQ-TNRT (SYS-120GQ-TNRT)

Supermicro Product ID: SYS-120GQ-TNRT

SYS-120GQ-TNRT | 1U | SuperServer | Products | Supermicro - SYS-120GQ-TNRT - SS120GQ-TNRT - 1U - GPU - X12 - System - GPU Servers - 1U GPU Lines - gpu - gpu

Systems Intel

€3.296,28
Beschikbaarheid opvragen
1U GPU SuperServer SYS-120GQ...

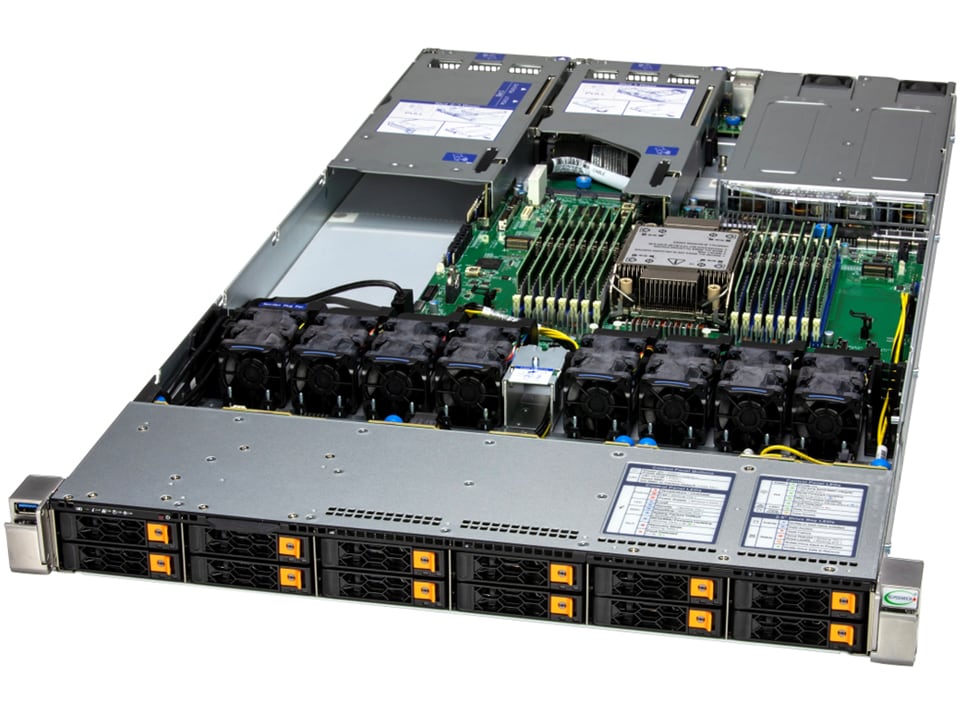

Supermicro 1U Hyper SuperServer SYS-112H-TN New (SYS-112H-TN)
