2U Storage SuperServer SSG-521E-E1CR24H (SSG-521E-E1CR24H)

SSG-521E-E1CR24H | 2U | SuperServer | Products | Supermicro - SSG-521E-E1CR24H - SS521E-E1CR24H - 2U - Storage - X13 - System - Storage Servers - Enterprise Optimized Storage - storage - general-purpose-storage

Vraag gratis offerte aan voor prijsinformatie. Binnen 1 werkdag ontvangt u een prijsopgave van een expert.

€4.243,97
(Excl. btw)
€4243.97
€5.135,20
(Incl. btw)
Verzending binnen 2-3 werkdagen

Via uw winkelmand kunt u ook direct een gratis offerte genereren.

Beschikbaarheid opvragen
Minimaal 1 jaar Carry-in-garantie voor servers
Wij assembleren en testen uw bestelling zorgvuldig

Supermicro  ID: SSG-521E-E1CR24H

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

Begin Chat

currently offline

Specificaties
Product SKUs
SuperServer SSG-521E-E1CR24H
Motherboard
Super X13SEDW-F
Processor
CPU
  • Single Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 36C/72T; Up to 180MB Cache
Note
  • Supports 120W - 300W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 5600MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
  • Via AIOM
  • View AIOM Options
  • View AOC Options
NVMe
  • View NVMe Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
Video
  • 1 VGA port(s)
DOM
  • 2 SuperDOM (Disk on Module) port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
Gerelateerde producten van Supermicro
Supermicro 2U Storage SuperServer SSG-521E-E1CR24H (SSG-521E-E1CR24H-G1)

Supermicro Product ID: SSG-521E-E1CR24H-G1

Systems

(Prijs op aanvraag)
Beschikbaarheid opvragen
2U Storage SuperServer SSG-5...
Supermicro 2U Storage SuperServer SSG-221E-NE324R (SSG-221E-NE324R)

Supermicro Product ID: SSG-221E-NE324R

SSG-221E-NE324R | 2U | SuperServer | Products | Supermicro - SSG-221E-NE324R - SS221E-NE324R - 2U - STORAGE - X13 - System - Storage Servers - All-Flash NVMe - storage - nvme

Storage Systems

€4.613,48
Op voorraad
2U Storage SuperServer SSG-2...
Supermicro 2U Storage SuperServer SSG-521E-E1CR24L (SSG-521E-E1CR24L)

Supermicro Product ID: SSG-521E-E1CR24L

SSG-521E-E1CR24L | 2U | SuperServer | Products | Supermicro - SSG-521E-E1CR24L - SS521E-E1CR24L - 2U - Storage - X13 - System - Storage Servers - Enterprise Optimized Storage - storage - general-purpose-storage

Storage Systems

€3.888,35
Op voorraad
2U Storage SuperServer SSG-5...

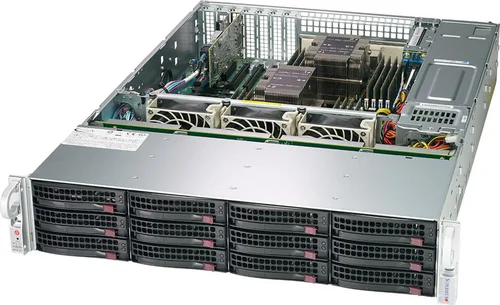

Supermicro 2U Storage SuperServer SSG-620P-ACR12H (SSG-620P-ACR12H)

Supermicro Product ID: SSG-620P-ACR12H

SSG-620P-ACR12H | 2U | SuperServer | Products | Supermicro - SSG-620P-ACR12H - SS620P-ACR12H - 2U - STORAGE - X12 - System - Storage Servers - Enterprise Optimized Storage - storage - general-purpose-storage

Storage Systems

€3.077,79
Beschikbaarheid opvragen
2U Storage SuperServer SSG-6...
Supermicro 2U Storage SuperServer SSG-620P-ACR12L (SSG-620P-ACR12L)

Supermicro Product ID: SSG-620P-ACR12L

SSG-620P-ACR12L | 2U | SuperServer | Products | Supermicro - SSG-620P-ACR12L - SS620P-ACR12L - 2U - STORAGE - X12 - System - Storage Servers - Enterprise Optimized Storage - storage - general-purpose-storage

Storage Systems

€2.720,03
Op voorraad
2U Storage SuperServer SSG-6...
Supermicro 2U Storage SuperServer SSG-620P-ACR16H (SSG-620P-ACR16H)

Supermicro Product ID: SSG-620P-ACR16H

SSG-620P-ACR16H | 2U | SuperServer | Products | Supermicro - SSG-620P-ACR16H - SS620P-ACR16H - 2U - STORAGE - X12 - System - Storage Servers - Enterprise Optimized Storage - storage - general-purpose-storage

Storage Systems

€3.440,89
Op voorraad
2U Storage SuperServer SSG-6...

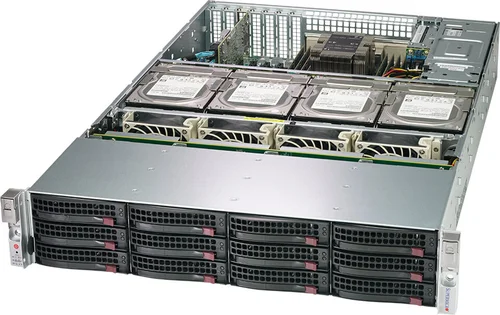

Supermicro 2U Storage SuperServer SSG-620P-ACR16L (SSG-620P-ACR16L)

Supermicro Product ID: SSG-620P-ACR16L

SSG-620P-ACR16L | 2U | SuperServer | Products | Supermicro - SSG-620P-ACR16L - SS620P-ACR16L - 2U - STORAGE - X12 - System - Storage Servers - Enterprise Optimized Storage - storage - general-purpose-storage

Storage Systems

€3.083,13
Beschikbaarheid opvragen
2U Storage SuperServer SSG-6...

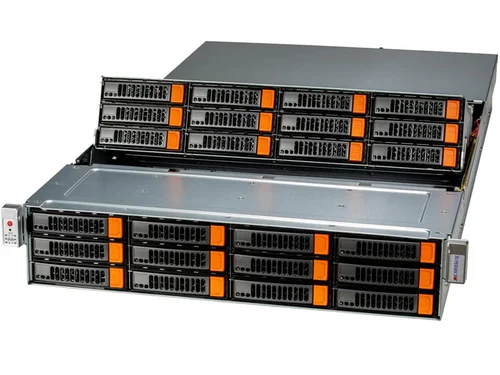

Supermicro 2U Storage SuperServer SSG-620P-E1CR24H (SSG-620P-E1CR24H)

Supermicro Product ID: SSG-620P-E1CR24H

SSG-620P-E1CR24H | 2U | SuperServer | Products | Supermicro - SSG-620P-E1CR24H - SS620P-E1CR24H - 2U - STORAGE - X12 - System - Storage Servers - Enterprise Optimized Storage - storage - general-purpose-storage

Storage Systems

€4.510,96
Beschikbaarheid opvragen
2U Storage SuperServer SSG-6...
Supermicro 2U Storage SuperServer SSG-620P-E1CR24L (SSG-620P-E1CR24L)

Supermicro Product ID: SSG-620P-E1CR24L

SSG-620P-E1CR24L | 2U | SuperServer | Products | Supermicro - SSG-620P-E1CR24L - SS620P-E1CR24L - 2U - STORAGE - X12 - System - Storage Servers - Enterprise Optimized Storage - storage - general-purpose-storage

Storage Systems

€4.140,38
Beschikbaarheid opvragen
2U Storage SuperServer SSG-6...

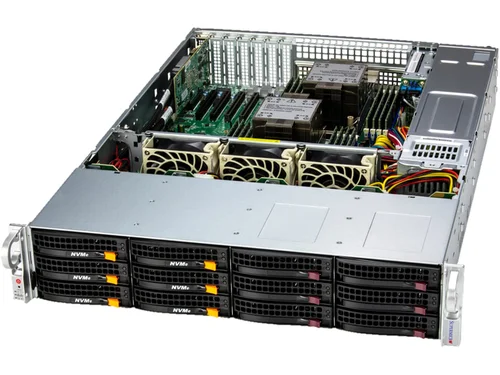

Supermicro 2U Storage SuperServer SSG-621E-ACR12H (SSG-621E-ACR12H)
