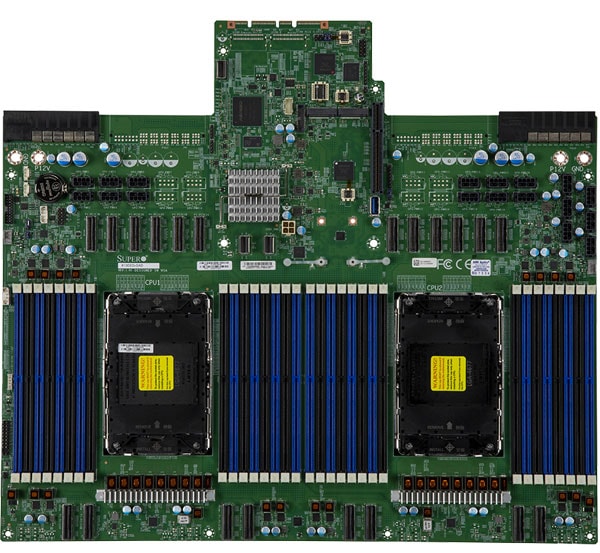

Motherboard X13DEG-OAD Dual 5th/4th Gen Intel® Xeon® Scalable processors

5th/4th Gen Intel® Xeon® Scalable processors and Intel® Xeon® Max series processors - Proprietary - Intel® C741 - Dual - Up to 350W TDP - DDR5 3DS RDIMM8TB - PCI-E 3.0

Loading price... (€0.00)

Loading price...

Verzending binnen 7-10 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: MBD-X13DEG-OAD

Hulp nodig? Neem contact op met onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 301 85 85

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

P/N: X13DEG-OAD

Key Features

Support HBM
5th/4th Gen Intel® Xeon® Scalable processors and Intel® Xeon® Max series processors, Dual Sockets LGA-4677 (Socket E) supported, CPU TDP supports Up to 350W TDP
Intel C741® Chipset
Up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s in 32 DIMM slots
12 PCIe 5.0 MCIO x8

...

Optimized Servers

SYS-821GE-TNHR

Product SKUs
MBD-X13DEG-OAD

Physical Stats
Form Factor	Proprietary
Dimension	15" x 17" (38.1cm x 43.18cm)

Processor
CPU	5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors and Intel® Xeon® Max Series processors Dual Socket Socket E (LGA-4677) supported, CPU TDP supports Up to 350W TDP SP XCC, SP MCC, and MAX Series (HBM) SKUs are supported
Core	Up to 64 cores

System Memory
Memory Capacity	32 DIMM slots Up to 8TB 3DS ECC RDIMM, DDR5-5600MT/s
Memory Type	5600/5200/4800/4400/4000 MT/s ECC DDR5 RDIMM (3DS) Up to 256GB of memory with speeds of up to 5600MT/s(1DPC) or 4400 MT/s (2DPC)
DIMM Sizes	16GB, 32GB, 64GB, 96(XCC Only)GB, 128GB, 256GB RDIMM: Up to 256GB
Memory Voltage	1.1V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel® C741
SATA	Intel® C741 controller for 8 SATA3 ports
Network Controllers	N/A

Input / Output
TPM	1 TPM Header

Expansion Slots
PCIe	1 PCIe 5.0 x16 AIOM, 12 PCIe 5.0 x8 PCIe5.0 MCIO connector
M.2	M.2 Interface: 2 PCIe 4.0 x4 Form Factor: 22110, 2280 Key: M-Key

System BIOS
BIOS Type	AMI 64MB AMI UEFI
BIOS Features	ACPI 6.4 SMBIOS 2.8/3.5 UEFI 2.8A Plug and Play (PnP) PCI FW 3.2

Management
Software	Redfish API, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0

PC Health Monitoring
Voltage	VBAT, System level control, Supports system management utility, Monitors CPU voltages, Chipset Voltage, Chassis intrusion header, 5 -fan status, +5V standby, +5V, +3.3V, +12V, Memory Voltages
LED	UID/Remote UID CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Thermal Monitor 2 (TM2) support PECI
FAN	2x 4-pin fan headers (up to 2 fans) Fan speed control 5 fans with tachometer status monitoring Overheat LED indication
Other Features	UID, Node Manager Support, M.2 NGFF connector, Control of power-on for recovery from AC power loss, Chassis intrusion detection, ACPI power management

Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
