SupermicroMotherboard X12SCV-W Single Intel® Xeon® W-1200 Processor11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 ProcessorIntel® Xeon® W-1200 Processors11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor - Mini-ITX - Intel® W480E - Single - Up to 65W TDP - DDR4 SODIMM64GB - PCI-E 3.0
Expertise in geïntegreerde oplossingen
Ongeëvenaarde kwaliteitsborging
24/7 op maat gemaakte klantenondersteuning
Supermicro Direct Partner

Supermicro

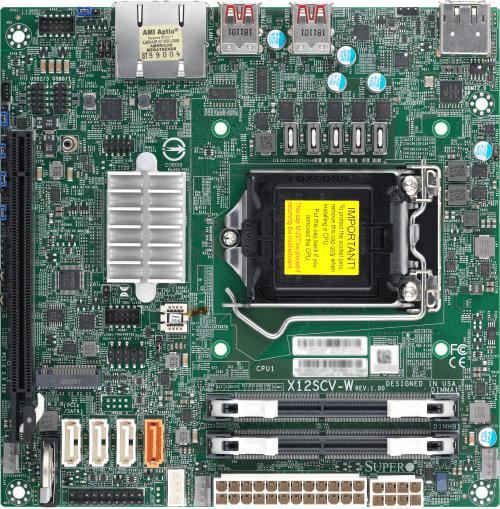

Motherboard X12SCV-W Single Intel® Xeon® W-1200 Processor11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor

Intel® Xeon® W-1200 Processors11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor - Mini-ITX - Intel® W480E - Single - Up to 65W TDP - DDR4 SODIMM64GB - PCI-E 3.0

Vraag offerte aan voor prijsinformatie

316,87
(Excl. btw)
316.87
383,41
(Incl. btw)
Op voorraad

Supermicro  ID: MBD-X12SCV-W

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

Specificaties
P/N: X12SCV-W

Key Features


  1. 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor, Intel® Xeon® W-1200 Processors
    Single Socket LGA-1200 (Socket H5) supported, CPU TDP supports Up to 65W TDP
  2. Intel® W480E
  3. Single LAN with Intel® Ethernet i225LM
    Single LAN with Intel® Ethernet i225V
  4. Up to 64GB DDR4 ECC/non-ECC SO-DIMM, DDR4-2933MHz, in 2 DIMM slots
  5. 1 PCIe 3.0 x16 slots (16/NA or 8/8)
    1 M.2 M-Key PCIe 3.0 x4, 2280
  6. Intel® W480E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
  7. 1 HDMI port, 1 DP (DisplayPort) port
...
...
Product SKUs
MBD-X12SCV-W
Physical Stats
Form Factor
  • Mini-ITX
Dimension
  • 6.7" x 6.7" (17.02cm x 17.02cm)
Processor
CPU
  • Intel® Xeon® W-1200 Processors, 11th/10th Generation Intel® Core™ i9/Core™ i7/Core™ i5/Core™ i3 Processor
  • Single Socket Socket H5 (LGA-1200) supported, CPU TDP supports Up to 65W TDP
Core
  • Up to 10 cores
Note
  • ** Motherboard supports this maximum TDP. Please verify your system can thermally support.
    **The X12SCV-W does not support the Intel 10th/11th generation processor 2M cache SKUs. These processors will not boot with the latest BIOS version.
System Memory
Memory Capacity
  • 2 DIMM slots
  • Up to 64GB ECC/non-ECC SODIMM, DDR4-2933MT/s
Memory Type
  • 2933/2666/2400/2133 MT/s ECC/non-ECC DDR4 SODIMM
DIMM Sizes
  • 4GB, 8GB, 16GB, 32GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® W480E
SATA
  • Intel® W480E controller for 4 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Audio
  • ALC 888S HD Audio
Graphics
  • 1 Intel® HD Graphics port(s)
Network Controllers
  • Single LAN with Intel® Ethernet i225V
  • Single LAN with Intel® Ethernet i225LM
Input / Output
SATA
  • 4 SATA3 (6Gbps) port(s)
LAN
  • 2 RJ45 2.5 Gigabit Ethernet LAN port
USB
  • 4 USB 2.0 port(s) (4 via header)
  • 4 USB 3.2 Gen2 port(s) (4 rear type A)
Video Output
  • 1 DP (DisplayPort) port(s), 1 HDMI port(s)
Serial Port
  • 1 COM Port(s) (1 header)
DOM
  • 1 SuperDOM (Disk on Module) ports
TPM
  • 1 TPM Header & Chip both
Expansion Slots
PCIe
  • 1 PCIe 3.0 x16 slots (16/NA or 8/8)
M.2
  • M.2 Interface: 1 PCIe 3.0 x4
  • Form Factor: 2280
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.1
  • SMBIOS 3.1
  • PCI FW 3.0
  • UEFI 2.7
  • RTC (Real Time Clock) Wakeup
Management
System Management Software
  • SuperDoctor 5
Power Configurations
  • ATX Power connector, ACPI / ACPM Power Management, +12V DC Power Input
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
PC Health Monitoring
Voltage
  • VBAT, System temperature, System level control, PCH temperature, Monitors CPU voltages, HT, CPU temperature, Chipset Voltage, 3 -fan status, +3.3V, +1.8V
LED
  • Power LED
Temperature
  • Thermal Control for 3 Fan Connectors
FAN
  • 3x 4-pin fan headers (up to 3 fans)
  • System level control
  • PWM fan speed control
  • Fan speed control
  • 3 fans with tachometer monitoring
Other Features
  • WOL, System level control, RoHS, M.2 NGFF connector, Chassis intrusion header, ATX Power connector, ACPI power management, 8-pin 12v DC power connector, 12V DC or ATX Power Source
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -40°C - 85°C (-40°F - 185°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
