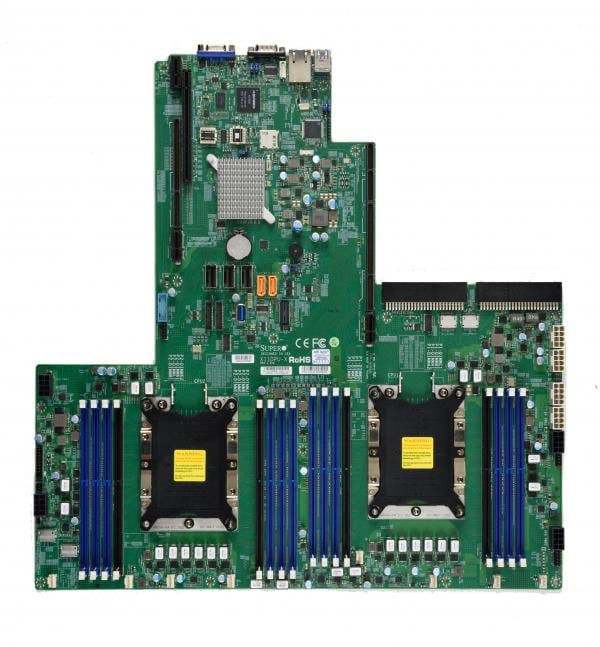

Motherboard X11DPU-XLL Dual 2nd Gen Intel® Xeon® Scalable Processor

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors - Proprietary Ultra - Intel® C621 - Dual - Up to 205W TDP - DDR4 3DS RDIMM4TB - PCI-E 3.0 1 x32 Left Riser Slot1 x40 Far Right Riser Slot1 x8 Center Right Riser Slot

Loading price... (€0.00)

Loading price...

Verzending binnen 7-10 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Laagste prijsgarantie

Supermicro Product ID: MBD-X11DPU-XLL

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31 (0) 85 301 85 85

Begin Chat

currently offline

Loading: Specificaties...

Specificaties

P/N: X11DPU-XLL

Key Features

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
Intel® C621
Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz, in 16 DIMM slots
1 PCIe 3.0 x32 Left Riser Slot,
1 PCIe 3.0 x8 Center Right Riser Slot,
1 PCIe 3.0 x40 Far Right Riser Slot,
4 PCIe 3.0 NVMe x4 Internal Port(s)
Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
1 VGA port
Networking options provided via Ultra Riser

...

Optimized Servers

SYS-1029UX-LL1-C16 SYS-1029UX-LL1-S16 SYS-1029UX-LL2-C16 SYS-1029UX-LL2-S16 SYS-1029UX-LL3-C16 SYS-1029UX-LL3-S16 SYS-1029UX-LL4-C16

Product SKUs
MBD-X11DPU-XLL

Physical Stats
Form Factor	Proprietary Ultra
Dimension	17" x 16.8" (43.18cm x 42.67cm)

Processor
CPU	2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
Core	Up to 28 cores
Note	BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)

System Memory
Memory Capacity	16 DIMM slots Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes	LRDIMM: 128GB RDIMM: 64GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel® C621
SATA	Intel® C621 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Graphics	1 ASPEED AST2500 BMC port(s)
Network Controllers	Networking options provided via Ultra Riser

Input / Output
SATA	14 SATA3 (6Gbps) port(s)
USB	1 USB 3.2 Gen1 port(s) (1 type A) 2 USB 3.0 port(s) (2 rear)
Video Output	1 VGA port(s)
Serial Port	1 COM Port(s) (1 rear)
DOM	2 SuperDOM (Disk on Module) ports
TPM	1 TPM Header
Others	1 ports SuperDOM

Expansion Slots
PCIe	1 PCIe 3.0 x32 Left Riser Slot, 1 PCIe 3.0 x8 Center Right Riser Slot, 1 PCIe 3.0 x40 Far Right Riser Slot

System BIOS
BIOS Type	AMI UEFI

Management
Software	SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management

PC Health Monitoring
Voltage	Monitors CPU voltages, +5V standby, +5V, +3.3V, +12V
LED	UID/Remote UID Power LED BMC/IPMI Heartbeat LED CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Support to monitor Supermicro AOC temperatures from IPMI or SD 5 Thermal Control for 8 Fan Connectors
FAN	8x 4-pin fan headers (up to 8 fans) PWM fan speed control
Other Features	UID, RoHS, Node Manager Support, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, SDDC, Hyper-Speed Technology hardware acceleration

Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
