GIGABYTEHPC/AI Server - AMD EPYC™ 9005/9004 - 4U DP HGX™ H200 8-GPU DLC (G4L3-ZD1-LAX3)Available to order now. This configuration has been put together by ServerDirect and can be fully customized, contact our sales team for a different configuration.
Release date: February/March 2025

In this configuration:
  • 2x AMD EPYC™ 9555 | 64 Cores | 128 Threads | 3.2GHz base | 4.4GHz Turbo
  • 8x DDR5 64GB 4800MHz Registered DIMM 2Rank x4
  • 2x Samsung PM9A3 960GB M.2 (22x110) PCIe 4.0 x4 TLC Data Center SSD V6
Specifications (standard features include):
  • Liquid-cooled NVIDIA HGX™ H200 8-GPU

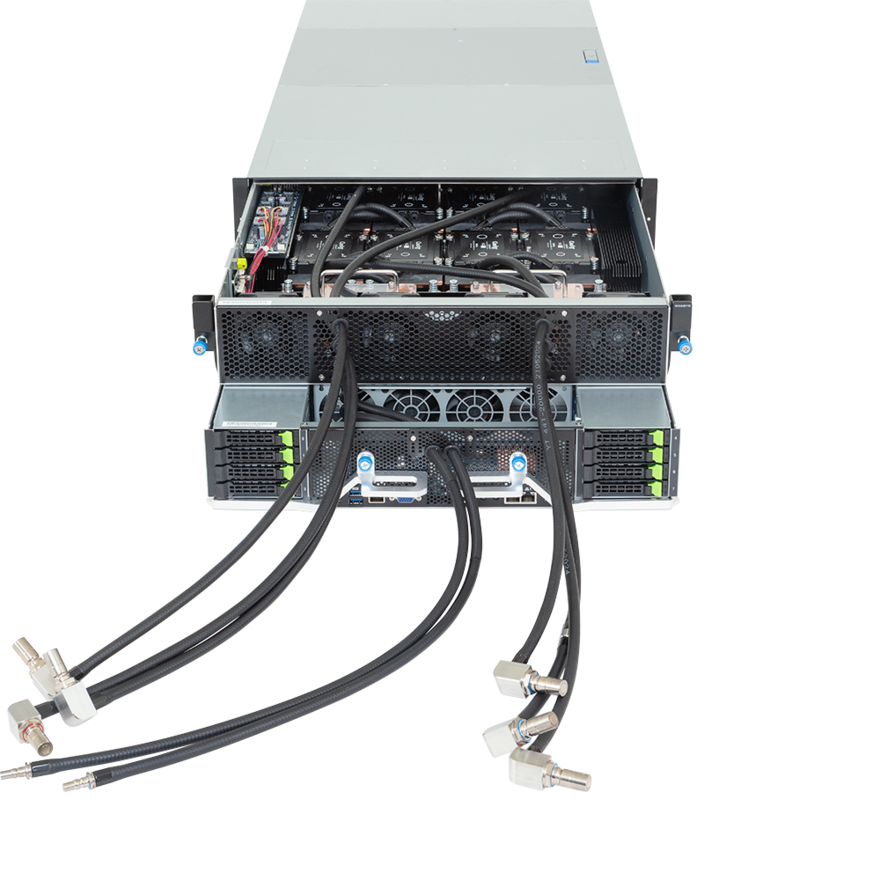

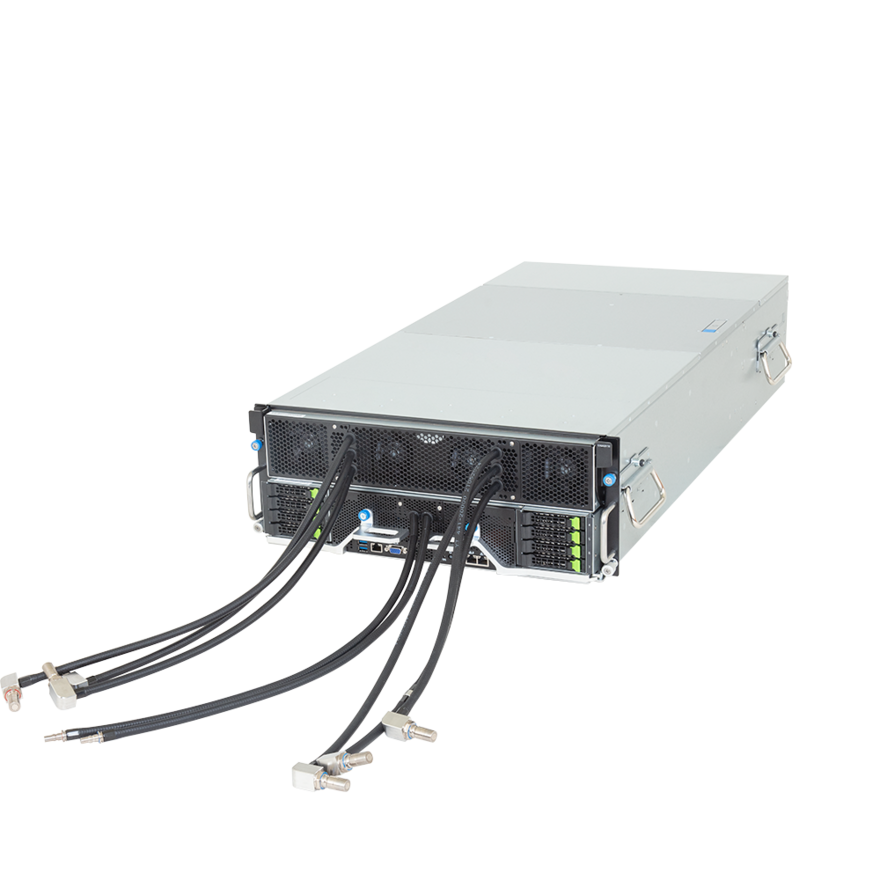

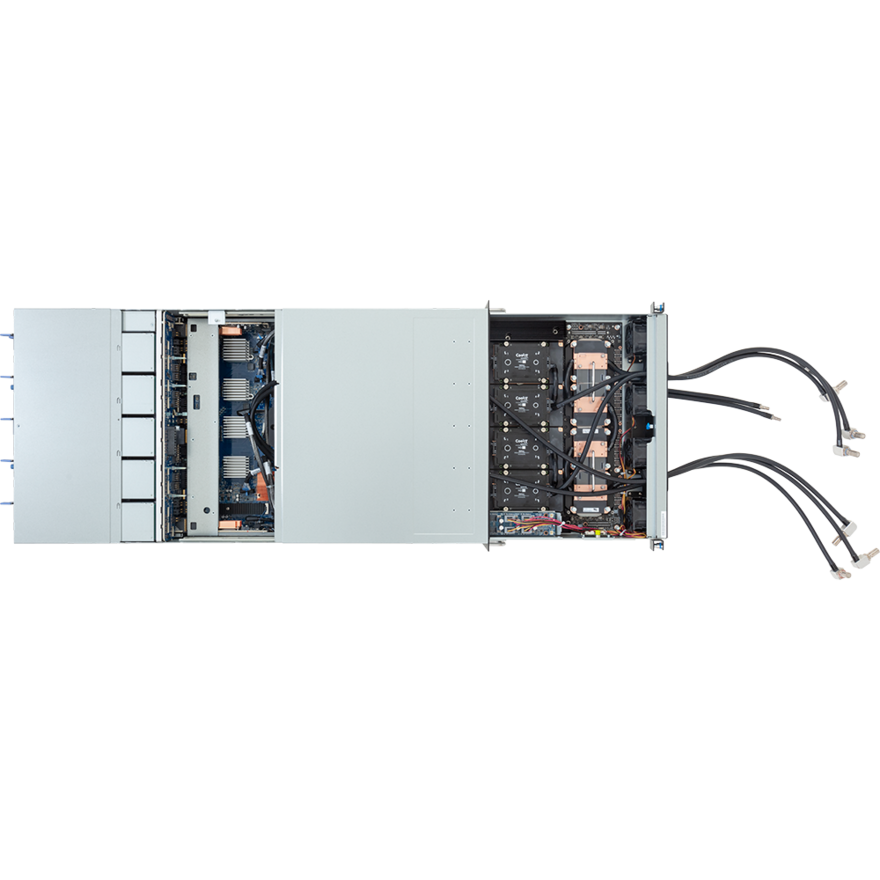

  • CPU+GPU direct liquid cooling solution with leak detection
  • 900GB/s GPU-to-GPU bandwidth with NVLink® and NVSwitch™
  • Dual ROM Architecture
  • Compatible with NVIDIA BlueField®-3 DPUs and ConnectX®-7 NICs
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 8 x 2.5" Gen5 NVMe hot-swap bays
  • 4 x FHHL dual-slot PCIe Gen5 x16 slots
  • 8 x FHHL single-slot PCIe Gen5 x16 slots
  • 4+4 3000W 80 PLUS Titanium redundant power supplies
Expertise in geïntegreerde oplossingen
Ongeëvenaarde kwaliteitsborging
24/7 op maat gemaakte klantenondersteuning
GIGABYTE Direct Partner

GIGABYTE

HPC/AI Server - AMD EPYC™ 9005/9004 - 4U DP HGX™ H200 8-GPU DLC (G4L3-ZD1-LAX3)

Available to order now. This configuration has been put together by ServerDirect and can be fully customized, contact our sales team for a different configuration.
Release date: February/March 2025

In this configuration:
  • 2x AMD EPYC™ 9555 | 64 Cores | 128 Threads | 3.2GHz base | 4.4GHz Turbo
  • 8x DDR5 64GB 4800MHz Registered DIMM 2Rank x4
  • 2x Samsung PM9A3 960GB M.2 (22x110) PCIe 4.0 x4 TLC Data Center SSD V6
Specifications (standard features include):
  • Liquid-cooled NVIDIA HGX™ H200 8-GPU
  • CPU+GPU direct liquid cooling solution with leak detection
  • 900GB/s GPU-to-GPU bandwidth with NVLink® and NVSwitch™
  • Dual ROM Architecture
  • Compatible with NVIDIA BlueField®-3 DPUs and ConnectX®-7 NICs
  • 2 x 10Gb/s LAN ports via Intel® X710-AT2
  • 8 x 2.5" Gen5 NVMe hot-swap bays
  • 4 x FHHL dual-slot PCIe Gen5 x16 slots
  • 8 x FHHL single-slot PCIe Gen5 x16 slots
  • 4+4 3000W 80 PLUS Titanium redundant power supplies

Vraag offerte aan voor prijsinformatie

0,00
(Excl. btw)
0.00
0,00
(Incl. btw)
Beschikbaarheid opvragen

GIGABYTE  ID: G4L3-ZD1-LAX3

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

Specificaties
TitleDescription
Dimensions (WxHxD, mm)4U
447 x 175.3 x 900
MotherboardMZB3-PE0
CPU AMD EPYC™ 9005 Series Processors
AMD EPYC™ 9004 Series Processors

Dual processor, cTDP up to 500W[1]

[1] The ambient temperature is limited to 30°C when NVIDIA BlueField®-3 DPUs are installed.

[Note] If only 1 CPU is installed, some PCIe or memory functions might be unavailable.
Socket2 x LGA 6096
Socket SP5
ChipsetSystem on Chip
Memory 24 x DIMM slots
DDR5 memory supported
12-Channel memory architecture

AMD EPYC™ 9005:
RDIMM: Up to 6000 MT/s

AMD EPYC™ 9004:
RDIMM: Up to 4800 MT/s
LANFront (I/O board - CFPG540):
2 x 10Gb/s LAN (1 x Intel® X710-AT2)
- Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Rear (MLAN board - CDB66):
1 x 10/100/1000 Mbps Management LAN

[Note] When both MLAN ports are connected with cables, the front MLAN port will be set as the default.
VideoIntegrated in Aspeed® AST2600
- 1 x VGA port
StorageFront hot-swap:
8 x 2.5" Gen5 NVMe
- (NVMe from PEX89104)

Internal M.2:
1 x M.2 (2280/22110), PCIe Gen3 x4, from CPU_1
1 x M.2 (2280/22110), PCIe Gen3 x1, from CPU_0
SASN/A
RAIDRequire RAID add-in cards
Modular GPULiquid-cooled NVIDIA HGX™ H200 with 8 x SXM GPUs
PCIe Expansion SlotsPCIe Bridge Board - CBG76:
- 8 x FHHL x16 (Gen5 x16), from PEX89104

PCIe Bridge Board - CPBG045 x 2:
- 4 x FHHL x16 (Gen5 x16), from PEX89048

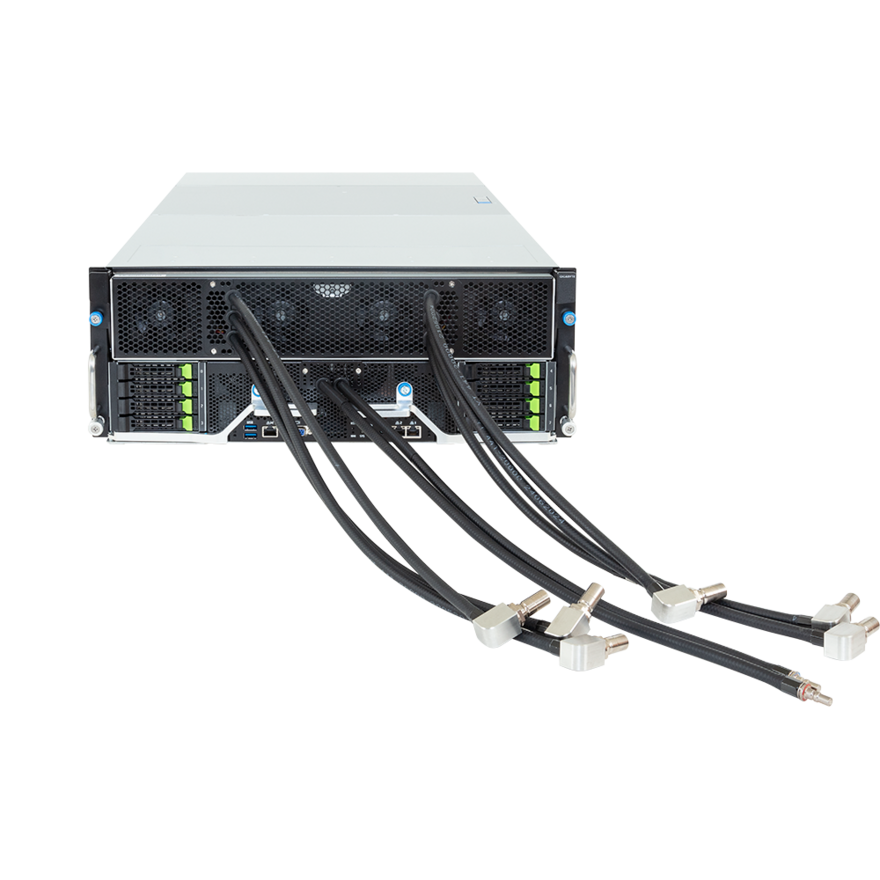

Front I/OI/O board - CFPG540:
2 x USB 3.2 Gen1 ports (Type-A)
1 x VGA port
2 x RJ45 ports
1 x MLAN port (default)
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
1 x Storage activity LED
1 x System status LED

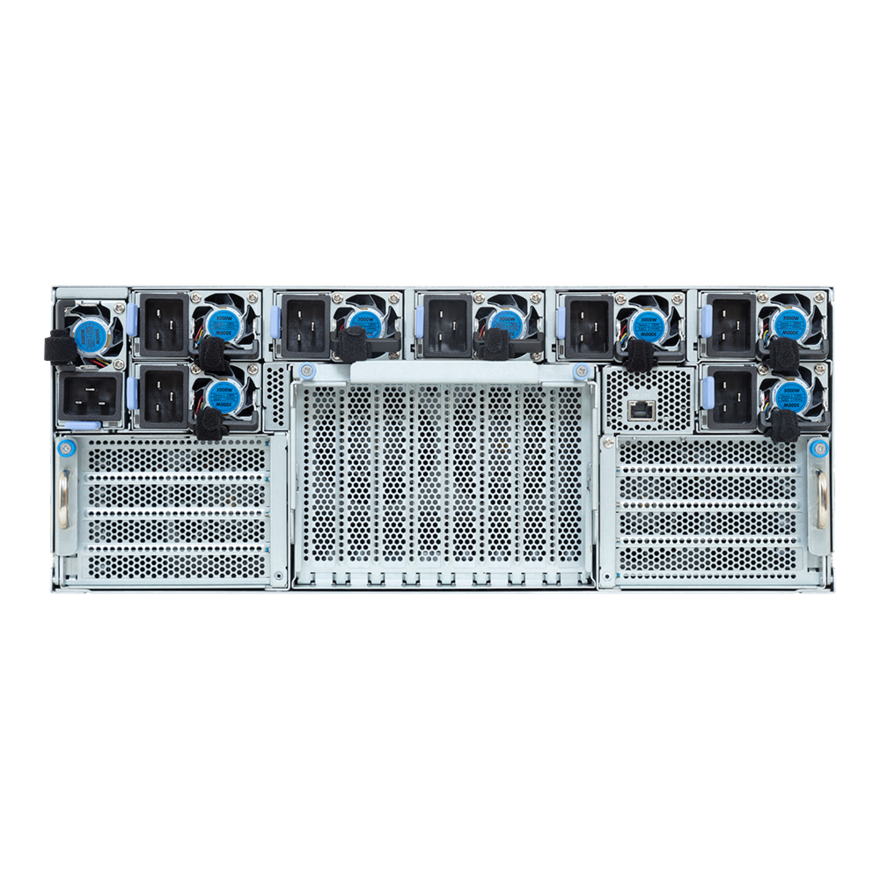

Rear I/OMLAN board - CDB66:
1 x MLAN port
Backplane BoardSpeed and bandwidth:
PCIe Gen5 x4
Security Modules 1 x TPM header with SPI interface
- Optional TPM2.0 kit: CTM010

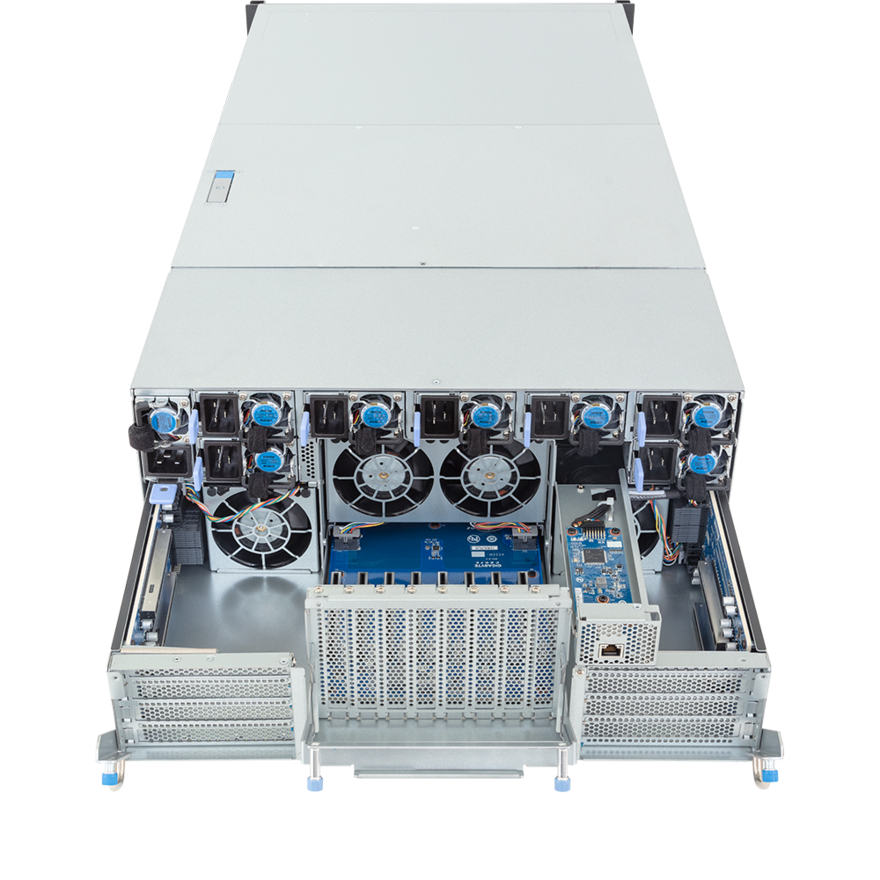

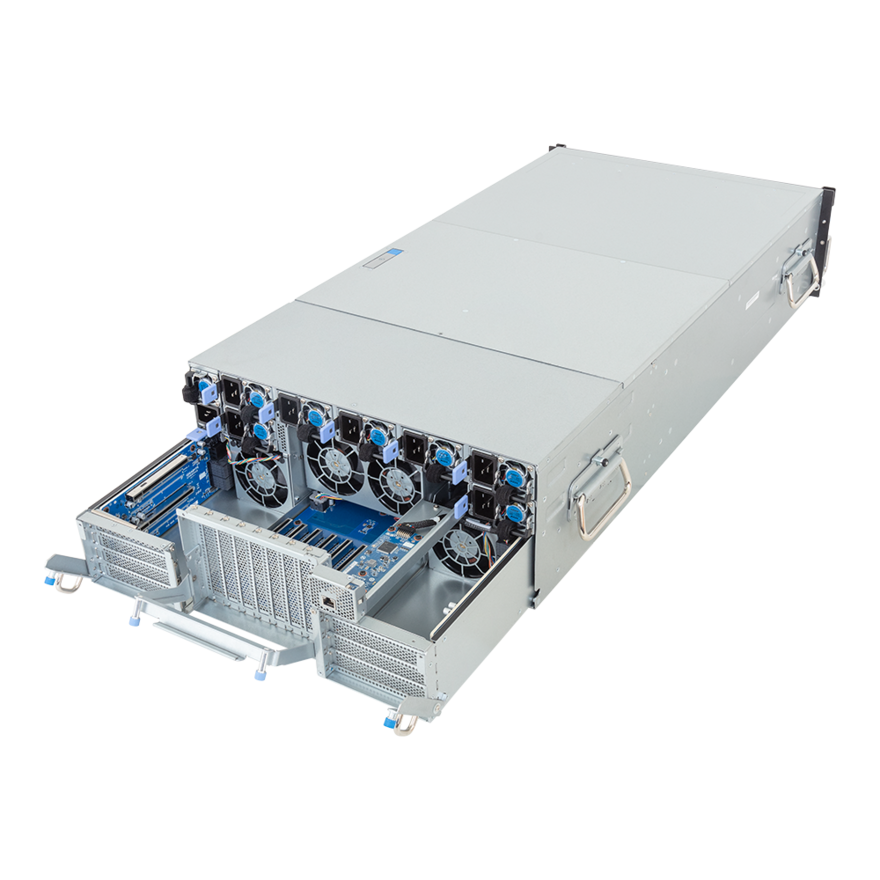

Power Supply 4+4 3000W 80 PLUS Titanium redundant power supplies[1]

AC Input:
- 115-127V~/ 14.2A, 50-60Hz
- 200-220V~/ 15.8A, 50-60Hz
- 220-240V~/ 14.9A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 14A

DC Output:
- Max 1450W/ 115-127V~
+54V/ 26.6A
+12Vsb/ 3A
- Max 2900W/ 200-220V~
+54V/ 53.4A
+12Vsb/ 3A
- Max 3002.4W/ 220-240V~ or 240Vdc Input
+54V/ 55.6A
+12Vsb/ 3A

[1] The system power supply requires C19 power cord.
System Management Aspeed® AST2600 Baseboard Management Controller
GIGABYTE Management Console web interface

  • Dashboard
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • Advanced power capping
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings
OS CompatibilityPlease refer to OS compatibility table in support page
System Fans Motherboard:
2 x 60x60x56mm
2 x 60x60x76mm

PCIe slots:
4 x 80x80x56mm (15,500rpm)

GPU tray:
4 x 60x60x38mm (24,000rpm)
Operating Properties Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

[Note] To ensure system stability and prevent condensation, when the relative humidity exceeds 50%, the coolant inlet temperature must be higher than the dry-bulb temperature and it should not exceed 40°C.
Packaging Content1 x G4L3-ZD1-LAX3
1 x CPU cold plate loop
1 x L-shape Rail kit
