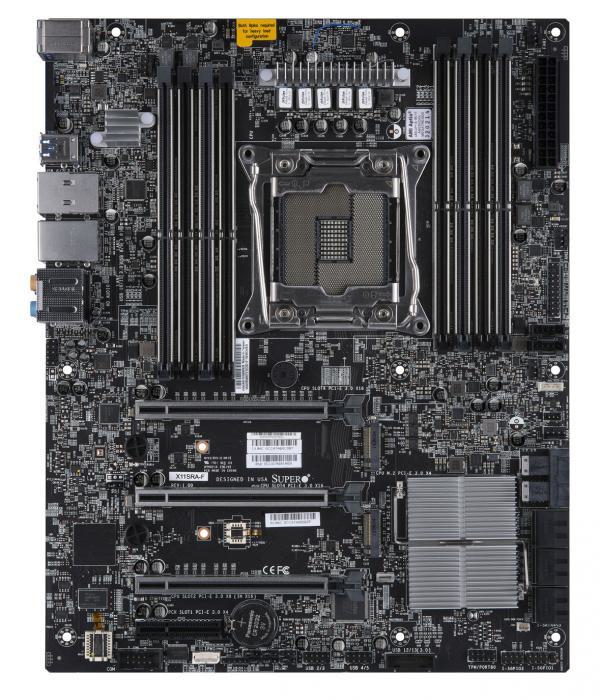

Motherboard X11SRA Single Intel® Xeon® W-2100 ProcessorIntel® Xeon® W-2200 Processor

Name: Supermicro Motherboard X11SRA Single Intel® Xeon® W-2100 ProcessorIntel® Xeon® W-2200 Processor
Brand: Supermicro
SKU: MBD-X11SRA
Price: 389.16 EUR
Availability: InStock

Intel® Xeon® W-2100 ProcessorsIntel® Xeon® W-2200 Processors - ATX - Intel® C422 - Single - Up to 165W TDP - DDR4 RDIMM1TB - PCI-E 3.0

€389,16

(Excl. btw)

€470,88

(Incl. btw)

Verzending binnen 7-10 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Supermicro Product ID: MBD-X11SRA

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31(0)85-3018585

Begin Chat

Specificaties

P/N: X11SRA

Key Features

Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors
Single Socket LGA-2066 (Socket R4) supported, CPU TDP supports Up to 165W TDP
Intel® C422
Up to 512GB Registered ECC RDIMM, DDR4-2666MHz; Up to 1TB Registered ECC LRDIMM, DDR4-2666MHz, in 8 DIMM slots(DDR4-2933MHz: RDIMM Max. Memory Capacity 256GB Registered ECC, LRDIMM Max. Memory Capacity 512GB Registered ECC)
3 PCIe 3.0 x16 (8/16/16, 48 lanes) 1 PCIe 3.0 x4 M.2 Interface: 2 PCIe 3.0 x4 M.2 Form Factor: 2280/22110 M.2 Key: M-Key (RAID 0, 1) *M-Key for SSD and Optane (up to Intel POR). Intel VROC Hardware License Key is needed to enable RAID function. U.2 Interface: 2 PCIe 3.0 x4
Intel® C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10
*iRST enabled, only SATA2 to SATA5 support RAID.
Single LAN with Intel® PHY I219LM LAN controller
Single LAN with Aquantia 5G LAN chip AQC108

...

Optimized Servers

SYS-5039A-I

Product SKUs
MBD-X11SRA

Physical Stats
Form Factor	ATX
Dimension	12" x 9.6" (30.48cm x 24.38cm)

Processor
CPU	Intel® Xeon® W-2100 Processors, Intel® Xeon® W-2200 Processors Single Socket Socket R4 (LGA-2066) supported, CPU TDP supports Up to 165W TDP As Intel® Xeon® Processor W Family

System Memory
Memory Capacity	8 DIMM slots Up to 1TB ECC LRDIMM, DDR4-2666MT/s; Up to 512GB ECC RDIMM, DDR4-2666MT/s (DDR4-2933MHz: RDIMM Max. Memory Capacity 256GB Registered ECC, LRDIMM Max. Memory Capacity 512GB Registered ECC)
Memory Type	2666/2400/2133/1866/1600 MT/s ECC DDR4 LRDIMM, RDIMM SDRAM 72-bit, 288-pin
DIMM Sizes	4GB, 8GB, 16GB, 32GB, 64GB, 128GB
Memory Voltage	1.2V

On-Board Devices
Chipset	Intel® C422
SATA	Intel® C422 controller for 6 SATA3 (6 Gbps) ports; RAID 0,1,5,10 *iRST enabled, only SATA2 to SATA5 support RAID.
Audio	ALC 1220 7.1 HD Audio
Network Controllers	Single LAN with Intel® PHY I219LM LAN controller Single LAN with Aquantia 5G LAN chip AQC108

Input / Output
USB	6 USB 2.0 port(s) (4 via header; 2 rear) 6 USB 3.2 Gen1 port(s) (2 via header; 4 rear) 2 USB 3.2 Gen2 port(s) (2 type A)
Serial Port	1 COM Port(s) (1 header)
TPM	1 TPM Header

Expansion Slots
PCIe	3 PCIe 3.0 x16, 1 PCIe 3.0 x4 *3xPCIe3.0 x16 Slots(8/16/16 (Skylake-W 48 lanes), 1xPCIe3.0x4 slots*
M.2	M.2 Interface: 2 PCIe 3.0 x4, RAID 0,1 Form Factor: 2280/22110 Key: M-Key *M-Key for SSD and Optane(up to Intel POR). Intel VROC Hardware license Key is needed to enable RAID function.

System BIOS
BIOS Type	256MB UEFI

Management
Software	SuperDoctor® 5, AMT, Watchdog

PC Health Monitoring
Voltage	VBAT, System temperature, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, 1.2V (VDIMM), 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, Monitors for CPU Cores, 5 (4-pin)
LED	CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support Support to monitor Supermicro AOC temperatures from IPMI or SD 5 PECI
FAN	5x 4-pin fan headers (up to 5 fans) PWM fan speed control Fan speed control Overheat LED indication
Other Features	WOL, RoHS, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, Voltage and Frequency Overclocking, Intel Smart Response Technology

Operating Environment
Operating Temperature Range	0°C - 50°C (32°F - 122°F)
Non-Operating Temperature Range	-20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range	10% - 85% (non-condensing)
Non Operating Relative Humidity Range	10% - 95% (non-condensing)
