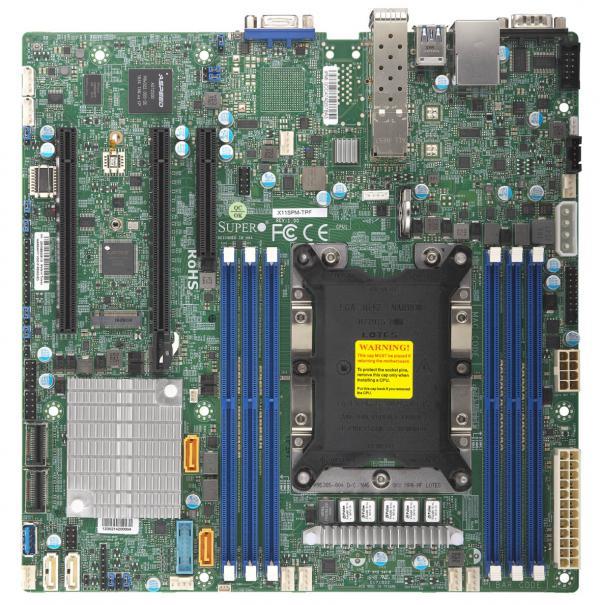

Motherboard X11SPM-TPF Single 2nd Gen Intel® Xeon® Scalable Processor

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors - microATX - Intel® C622 - Single - Up to 165W TDP - DDR4 3DS RDIMM1.5TB - PCI-E 3.0 2 x161 x8

Vraag offerte aan voor prijsinformatie

506,02
(Excl. btw)
506.02
612,28
(Incl. btw)
Beschikbaarheid opvragen

Supermicro  ID: MBD-X11SPM-TPF

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

Specificaties
P/N: X11SPM-TPF

Key Features


  1. 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors, , Single Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 165W TDP
  2. Intel® C622 chipset
  3. Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MHz, in 6 DIMM slots;
    Up to 1TB Intel Optane DC Persistent Memory in memory mode (Cascade Lake Only)
  4. Expansion slots: 2 PCIe 3.0 x16, 1 PCIe 3.0 x8 (in x8)
  5. M.2 NGFF connector
    M.2 Interface: PCIe 3.0 x4
    Form Factor: 2242, 2280
    Key: M-Key

  6. 2 10G SFP+
  7. 12 SATA3 (6Gbps) via C622
  8. Supports 12V DC power input
  9. 5 USB 3.0 (2 rear, 1 Type-A, 2 via header), 6 USB 2.0 (2 rear, 4 via headers)
  10. I/O: 1 VGA, 2 COM, 1 TPM header
...
...
Product SKUs
MBD-X11SPM-TPF
Physical Stats
Form Factor
  • microATX
Dimension
  • 9.6" x 9.6" (24.38cm x 24.38cm)
Processor
CPU
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Single Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 165W TDP
Core
  • Up to 28 cores
System Memory
Memory Capacity
  • 6 DIMM slots
  • Up to 1.5TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 1.5TB 3DS ECC RDIMM, DDR4-2933MT/s
Memory Type
  • 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
  • LRDIMM: 32GB, 64GB, 128GB
  • RDIMM: 8GB, 16GB, 32GB, 64GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
On-Board Devices
Chipset
  • Intel® C622
SATA
  • Intel® C622 controller for 12 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Graphics
  • 1 ASPEED AST2500 BMC port(s)
Network Controllers
  • Dual LAN with 10G SFP+ with Intel® X722 + Inphi CS4227
Input / Output
SATA
  • 12 SATA3 (6Gbps) port(s)
LAN
  • 2 10G SFP+ LAN ports
USB
  • 6 USB 2.0 port(s) (4 via header; 2 rear)
  • 2 USB 3.0 port(s) (2 rear)
  • 3 USB 3 port(s) (2 via header; 1 type A)
Video Output
  • 1 VGA port(s)
Serial Port
  • 2 COM Port(s) (1 header; 1 rear)
DOM
  • 2 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 2 PCIe 3.0 x16,
  • 1 PCIe 3.0 x8
M.2
  • M.2 Interface: PCIe 3.0 x4
  • Form Factor: 2280, 2242
  • Key: M-Key
System BIOS
BIOS Type
  • AMI UEFI
BIOS Features
  • ACPI 6.0
  • RTC (Real Time Clock) Wakeup
  • SMBIOS 3.0 or later
Management
Software
  • SuperDoctor® 5, NMI, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, IPMI2.0, Watchdog
Power Configurations
  • Power-on mode for AC power recovery, ACPI Power Management
PC Health Monitoring
Voltage
  • VBAT, Supports system management utility, Monitors CPU voltages, Chassis intrusion header, 3.3V standby, +5V standby, +5V, +3.3V, +12V, +1.8V, 8 -fan status
LED
  • UID/Remote UID
  • Suspend static indicator LED
  • CPU / System Overheat LED
Temperature
  • CPU thermal trip support
  • PECI
FAN
  • 8x 4-pin fan headers (up to 8 fans)
  • System level control
  • PWM fan speed control
  • Fan speed control
  • Overheat LED indication
Other Features
  • WOL, UID, RoHS, M.2 NGFF connector, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, ACPI power management
Operating Environment
Operating Temperature Range
  • 0°C - 60°C (32°F - 140°F)
Non-Operating Temperature Range
  • -20°C - 60°C (-4°F - 140°F)
Operating Relative Humidity Range
  • 10% - 85% (non-condensing)
Non Operating Relative Humidity Range
  • 10% - 95% (non-condensing)
