Supermicro4U GPU SuperServer SYS-741GE-TNRT (SYS-741GE-TNRT)
Key Features
  • 5th/4th Gen Intel® Xeon® Scalable processor support
  • 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
  • Up to 4x double width, full length GPUs4x PCIe 5.0 x16 (double-width) slots, 3x PCIe 5.0 x16 (single-width) slots
  • Total 8x 3.5" Hot-swap SATA/NVMe/SAS drive bays2x M.2 NVMe for boot drive onlyUp to 8x NVMe drives (8 NVMe drives supported by default)
  • 4 Removable heavy duty fans w/ Optimal Fan Speed Control
  • 2x 2000W (1+1) Redundant Power Supplies, Titanium Level
Expertise in geïntegreerde oplossingen
Ongeëvenaarde kwaliteitsborging
24/7 op maat gemaakte klantenondersteuning
Supermicro Direct Partner

Supermicro

4U GPU SuperServer SYS-741GE-TNRT (SYS-741GE-TNRT)

Key Features
  • 5th/4th Gen Intel® Xeon® Scalable processor support
  • 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
  • Up to 4x double width, full length GPUs4x PCIe 5.0 x16 (double-width) slots, 3x PCIe 5.0 x16 (single-width) slots
  • Total 8x 3.5" Hot-swap SATA/NVMe/SAS drive bays2x M.2 NVMe for boot drive onlyUp to 8x NVMe drives (8 NVMe drives supported by default)
  • 4 Removable heavy duty fans w/ Optimal Fan Speed Control
  • 2x 2000W (1+1) Redundant Power Supplies, Titanium Level

Vraag offerte aan voor prijsinformatie

3.661,28
(Excl. btw)
3661.28
4.430,15
(Incl. btw)
Beschikbaarheid opvragen

Supermicro  ID: SYS-741GE-TNRT

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

Specificaties

Key Applications

  • High Performance Computing
  • VDI
  • AI/Deep Learning Training
  • Media/Video Streaming
  • Cloud Gaming
  • Animation and Modeling
  • Design & Visualization
  • 3D Rendering
  • Diagnostic Imaging
  • AI Training

Key Features

  1. 5th/4th Gen Intel®  Xeon® Scalable processor support
  2. 16 DIMM slots Up to 4TB: 16x 256 GB DRAM Memory Type: 5600MTs ECC DDR5
    • Up to 4x double width, full length GPUs
    • 4x PCIe 5.0 x16 (double-width) slots,   3x PCIe 5.0 x16 (single-width) slots
    • Total 8x 3.5" Hot-swap SATA/NVMe/SAS drive bays
    • 2x M.2 NVMe  for boot drive only
    • Up to 8x NVMe drives (8 NVMe drives supported by default)
  3. 4 Removable heavy duty fans w/ Optimal Fan Speed Control
  4. 2x 2000W (1+1) Redundant Power Supplies, Titanium Level
...
...
Get Pricing
SYS-741GE-TNRT
Product SKUs
SuperServer SYS-741GE-TNRT

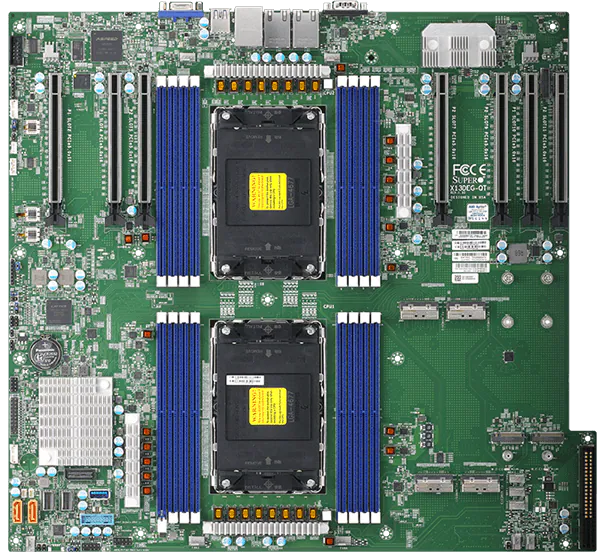

Motherboard
Super X13DEG-QT
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 64C/128T; Up to 320MB Cache per CPU
Note
  • Supports up to 350W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 4 double-width or 4 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: H100 NVL, H100, RTX 4000 Ada Generation, L40, RTX A5500, RTX A6000, RTX A4000, RTX 6000 Ada Generation, L40S, L4, A30, A100
  • AMD PCIe: Instinct MI210
  • View GPU Options
CPU-GPU Interconnect
  • PCIe 5.0 x16 CPU-to-GPU Interconnect
GPU-GPU Interconnect
  • NVIDIA® NVLink® Bridge (optional)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 2TB 5600MT/s ECC DDR5 RDIMM
  • Max Memory (2DPC): Up to 4TB 4400MT/s ECC DDR5 RDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
SATA
  • SATA (6Gbps)
Chipset
  • Intel® C741
Network Connectivity
  • 2 RJ45 10GbE with Intel® X550-AT2
  • View AOC Options
NVMe
  • View NVMe Options

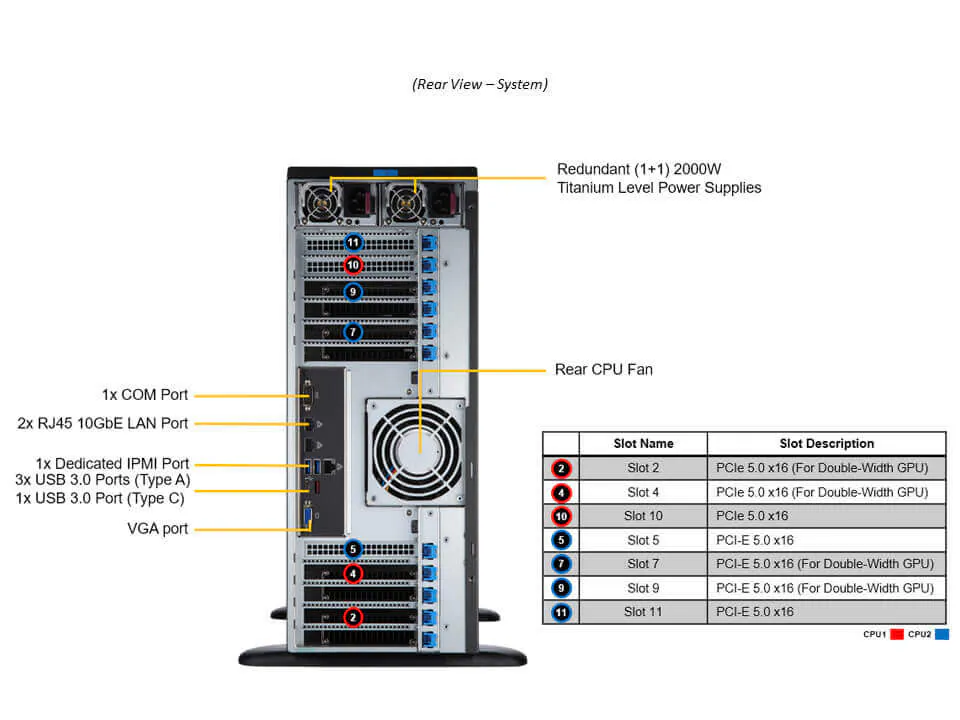

Input / Output
Video
  • 1 VGA port(s) (Rear)
Serial
  • 1 COM port(s) (Rear)
Audio
  • Front Audio
TPM
  • 1 TPM Onboard/port 80
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 8+4 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
