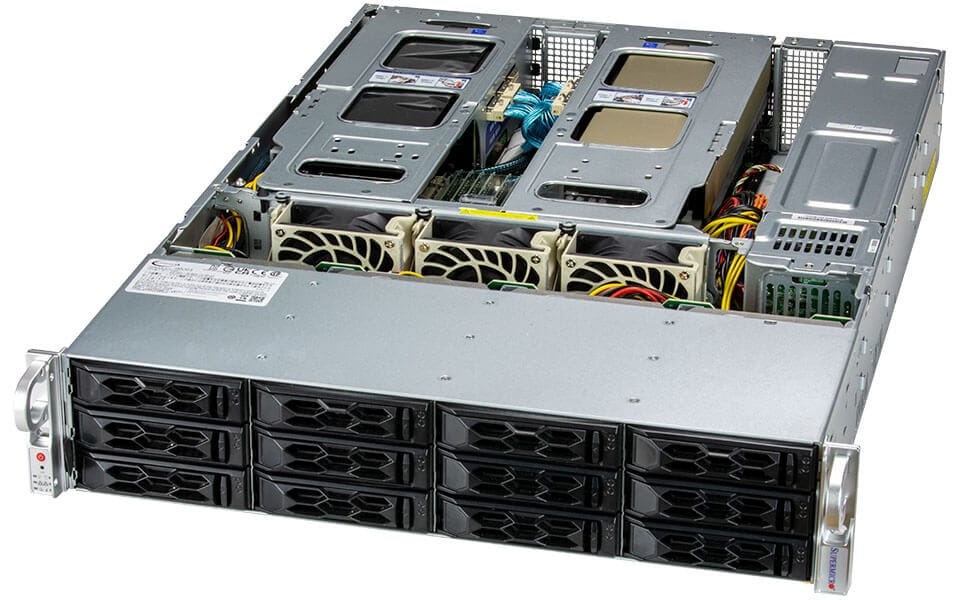

2U CloudDC SuperServer SYS-620C-TN12R (SYS-620C-TN12R)

SYS-620C-TN12R | 2U | SuperServer | Products | Supermicro - SYS-620C-TN12R - SS620C-TN12R - 2U - CloudDC - X12 - System - Rackmount Servers - 2U Dual Processor - rackmount - 2u-dp

Vraag offerte aan voor prijsinformatie

€2.129,33
(Excl. btw)
€2129.33
€2.576,49
(Incl. btw)
Verzending binnen 2-3 werkdagen
Try before you buy
Beschikbaarheid opvragen
Minimaal 1 jaar Carry-in-garantie voor servers
Wij assembleren en testen uw bestelling zorgvuldig

Supermicro  ID: SYS-620C-TN12R

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

Begin Chat
Specificaties

Key Applications

  • Web Server, Firewall Application
  • Data Center Optimized, Value IaaS
  • Cloud Computing, Compact Server
  • DNS & Gateway Servers, Firewall Application
  • CDN, Edge Nodes

Key Features

  1. Dual sockets P+ (LGA-4189) 3rd Gen Intel® Xeon® Scalable processors
  2. Intel® C621A Chipset
  3. 16 DIMMs up to 6TB 3DS ECC DDR4-3200: LRDIMM/RDIMM/Intel® Intel® DCPMM
    • 4 PCIe 4.0 x8 FHHL (optional: combine into 2 PCIe 4.0 x16);
    • 2 PCIe 4.0 x16 FHHL;
    • 2 PCIe 3.0 x2 NVMe M.2
  5. Dual AIOM (OCP 3.0) slots with NCSI for networking, 1 dedicated IPMI LAN
  6. 12x 3.5/2.5" hot-swap hybrid NVMe/SATA/SAS drive bays
  7. 3 heavy duty fans with optimal fan speed control, 1 air shroud
  8. 1200W redundant Titanium level 100-240Vac and 200-240 Vdc power supplies
  9. 1 VGA, 1 COM, 2 USB 3.0 (rear)
...
...
SYS-620C-TN12R
Product SKUs
SuperServer SYS-620C-TN12R
Motherboard
Super X12DDW-A6
Processor
CPU
  • Dual Socket P4 (LGA-4189)
  • 3rd Gen Intel® Xeon® Scalable processors
Core Count
  • Up to 40C/80T; Up to 60MB Cache per CPU
Note
  • Supports up to 270W TDP CPUs (Air Cooled)
GPU
Max GPU Count
  • Up to 2 double-width or 6 single-width GPU(s)
Supported GPU
  • NVIDIA PCIe: RTX A6000, RTX A5000, RTX A4500, A30, A16, A2, A100
  • Intel PCIe: Intel Data Center GPU Flex 170
  • View GPU Options
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (1DPC): Up to 4TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • Supports Intel® Optane™ persistent memory 200 series
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
SATA
  • SATA (6Gbps) ; RAID 0/1/5/10 support
NVMe
  • NVMe; RAID 0/1/5/10 support(VROC HW key required)
  • View NVMe Options
Chipset
  • Intel® C621A
Network Connectivity
  • Via Slim-AIOM
  • View AIOM Options
  • View AOC Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
Video
  • 1 VGA port(s)
Serial
  • 1 COM port(s) (Rear)
DOM
  • 1 SuperDOM (Disk on Module) port(s)
TPM
  • 1 TPM header
System BIOS
BIOS Type
  • AMI 32MB SPI FLASH ROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • ACPI/APM Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • System Lockdown
PC Health Monitoring
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory.
  • 8 Phase-switching voltage regulator
