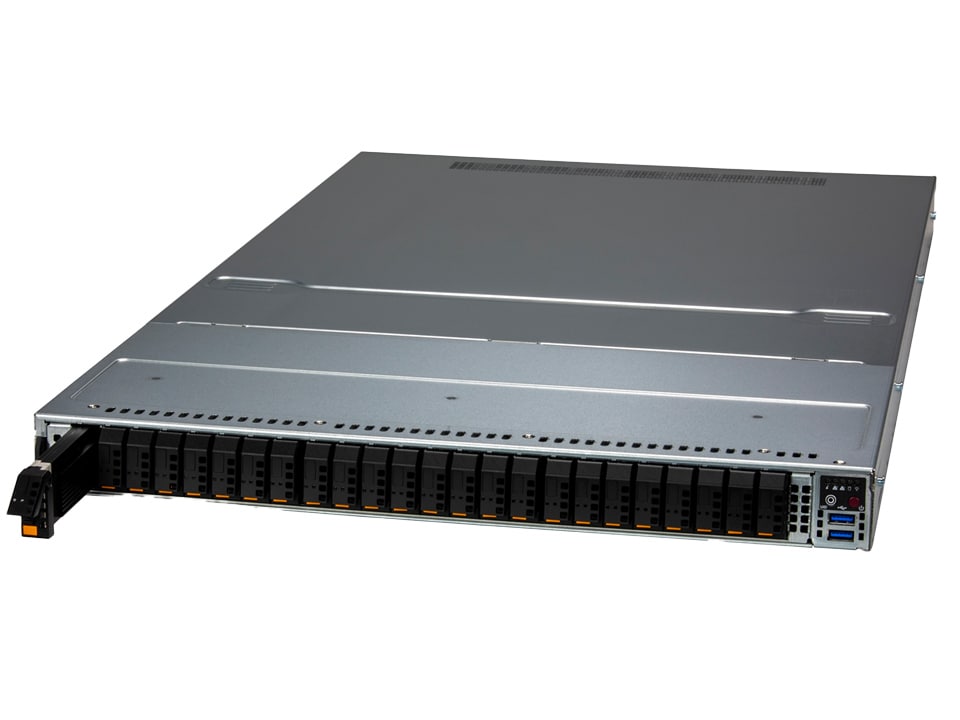

SSG-121E-NES24R 1U SuperServer

SSG-121E-NES24R | 1U | SuperServer | Products | Supermicro - SSG-121E-NES24R - SS121E-NES24R - 1U - STORAGE - X13 - System - Storage Servers - All-Flash NVMe - storage - nvme

Vraag offerte aan voor prijsinformatie

0,00
(Excl. btw)
0.00
0,00
(Incl. btw)
Beschikbaarheid opvragen

Supermicro  ID: SSG-121E-NES24R

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

Specificaties

Key Applications

  • Software-defined Storage
  • In-Memory Computing
  • Data Intensive HPC
  • Private & Hybrid Cloud
  • NVMe Over Fabrics Solution

Key Features

  1. Dual Socket E (LGA-4677) 5th/4th Generation Intel® Xeon® Scalable processors. Up to 270W TDP.
  2. Supports 32 DIMMs with 2DPC, up to 8TB memory capacity with 32 DIMMs of 256GB 3DS RDIMM DDR5-5600 ECC memory
  3. Two PCIe 5.0 x16 slots & two AIOM connectors (OCP 3.0 SFF compliant)
  4. 24x hot-swap E1.S (9.5mm or 15mm) NVMe drive bays
  5. Redundant Titanium 2000W Power Supplies
Get Pricing
SSG-121E-NES24R
Product SKUs
SuperServer SSG-121E-NES24R
Motherboard
Super X13DSF-A
Processor
CPU
  • Dual Socket E (LGA-4677)
  • 5th Gen Intel® Xeon® / 4th Gen Intel® Xeon® Scalable processors
Note
  • Supports 145W - 270W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 32 DIMM slots
  • Max Memory (2DPC): Up to 8TB 5600MT/s ECC DDR5 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • Intel® C741
Network Connectivity
  • Via AIOM
  • View AIOM Options
  • View AOC Options
NVMe
  • View NVMe Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
  • 2 USB 3.0 port(s) (front)
Video
  • 1 VGA port(s)
System BIOS
BIOS Type
  • AMI 32MB SPI Flash EEPROM
Management
Software
  • SuperCloud Composer
  • Supermicro Server Manager (SSM)
  • Supermicro Update Manager (SUM)
  • Supermicro SuperDoctor® 5 (SD5)
  • Super Diagnostics Offline (SDO)
  • Supermicro Thin-Agent Service (TAS)
  • SuperServer Automation Assistant (SAA) New!
Power configurations
  • Power-on mode for AC power recovery
  • ACPI Power Management
Security
Hardware
  • Trusted Platform Module (TPM) 2.0
  • Silicon Root of Trust (RoT) – NIST 800-193 Compliant
Features
  • Cryptographically Signed Firmware
  • Secure Boot
  • Secure Firmware Updates
  • Automatic Firmware Recovery
  • Supply Chain Security: Remote Attestation
  • Runtime BMC Protections
  • System Lockdown
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
  • 7 Phase-switching voltage regulator
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
