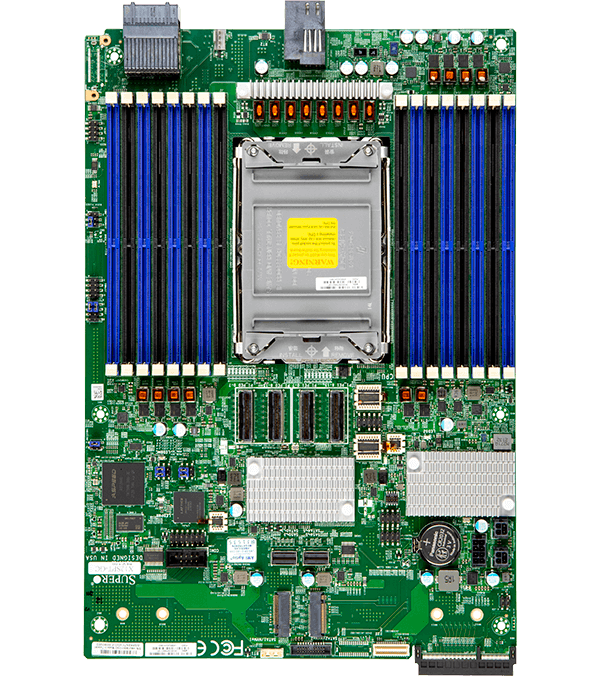

Motherboard X12SPT-GC Single 3rd Gen Intel® Xeon® Scalable processors

Motherboard X12SPT-GC Single 3rd Gen Intel® Xeon® Scalable processors thumbnail

Supermicro

Motherboard X12SPT-GC Single 3rd Gen Intel® Xeon® Scalable processors

Name: Supermicro Motherboard X12SPT-GC Single 3rd Gen Intel® Xeon® Scalable processors
Brand: Supermicro
SKU: MBD-X12SPT-GC
Availability: InStock

3rd Gen Intel® Xeon® Scalable processors - Proprietary - Intel® C621A - Single - Up to 270W TDP - 2TB - PCI-E 3.0

€0,00

(Excl. btw)

€0,00

(Incl. btw)

Verzending binnen 7-10 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Supermicro Product ID: MBD-X12SPT-GC

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31(0)85-3018585

Begin Chat

Specificaties

P/N: X12SPT-GC

Key Features

3rd Gen Intel® Xeon® Scalable processors
Single Socket LGA-4189 (Socket P+) supported, CPU TDP supports Up to 270W TDP
Intel® C621A
Up to 4TB 3DS ECC RDIMM, DDR4-3200MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-3200MHz
Up to 2TB Intel® Optane™ Persistent Memory 200 Series, in 16 DIMM slots
1x PCIe 4.0 x8 4C connector (for front I/O module), 4x PCIe 4.0 x8 MCIO connectors
LSI 3808 controller for 6 SAS3 ports
M.2 Interface: 2 PCIe 3.0 x4&SATA,M.2 Form Factor: 2280

...

Optimized Servers

SYS-210GT-HNC8F

Product SKUs
MBD-X12SPT-GC

Physical Stats
Form Factor	Proprietary
Dimension	8.53" x 12.42" (21.67cm x 31.55cm)

Processor
CPU	3rd Gen Intel® Xeon® Scalable processors Single Socket Socket P+ (LGA-4189) supported, CPU TDP supports Up to 270W TDP
Core	Up to 40 cores

System Memory
Memory Capacity	16 DIMM slots Up to 2TB Intel® Optane™ Persistent Memory 200 Series Up to 2TB ECC LRDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC LRDIMM, DDR4-3200MT/s; Up to 2TB ECC RDIMM, DDR4-3200MT/s; Up to 2TB 3DS ECC RDIMM, DDR4-3200MT/s
Memory Type	3200/2933/2666 MT/s ECC , DDR4 LRDIMM, RDIMM
DIMM Sizes	8GB, 16GB, 32GB, 64GB, 128GB, 256GB DCPMM: 64GB, 128GB, 256GB LRDIMM: 64GB, 128GB LRDIMM: 128GB, 256GB RDIMM: 8GB, 16GB, 32GB, 64GB RDIMM: 64GB, 128GB, 256GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors

On-Board Devices
Chipset	Intel® C621A
SAS	Broadcom 3808 SAS3 (12 Gbps) controller for 6 SAS3 (6 Gbps) ports
Graphics	1 ASPEED AST2600 BMC port(s)
Network Controllers	N/A

Input / Output
Serial Port	1 COM Port(s) (1 header)
TPM	1 TPM Header

Expansion Slots
PCIe	N/A
M.2	M.2 Interface: 2 SATA/PCIe 3.0 x4, RAID 0 & 1 Form Factor: 2280 Key: M-Key

System BIOS
BIOS Type	AMI UEFI

Management
Software	Redfish API, Supermicro Server Manager (SSM), Supermicro Power Manager (SPM), Supermicro Update Manager (SUM), Supermicro SuperDoctor® 5 (SD5), Super Diagnostics Offline (SDO), KVM with dedicated LAN , IPMI 2.0
System Management Software	IPMI (Intelligent Platform Management Interface) v1.5 / 2.0 with KVM support
Power Configurations	Power-on mode for AC power recovery, ACPI Power Management

Security
Hardware	Trusted Platform Module (TPM) 2.0

PC Health Monitoring
Voltage	VBAT, PCH temperature, Memory temperature, CPU temperature, +5V standby, +5V, +3.3V, +12V, +1.8V, VRM temperature, Memory Voltages, CPU thermal trip support
LED	UID/Remote UID BMC/IPMI Heartbeat LED
Other Features	WOL, UID, RoHS, Node Manager Support, RoT, NCSI header
FAN	1x 4-pin fan header (up to 1 fan)

Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
