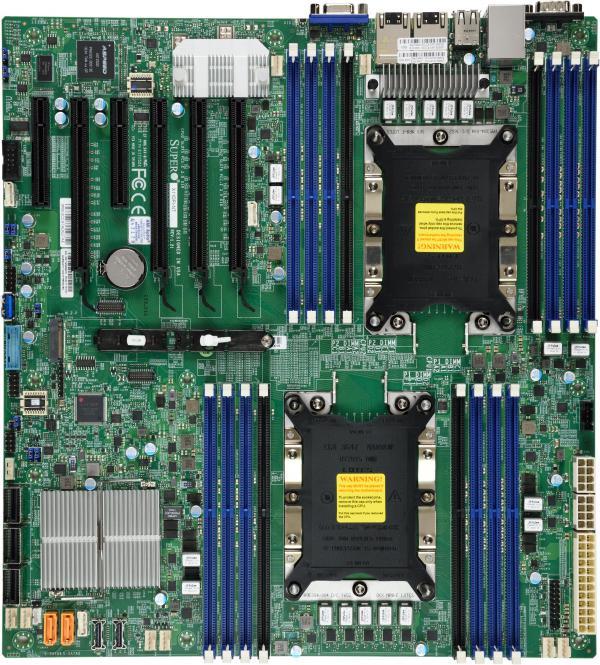

Motherboard X11DPI-NT Dual 2nd Gen Intel® Xeon® Scalable Processor

Name: Supermicro Motherboard X11DPI-NT Dual 2nd Gen Intel® Xeon® Scalable Processor
Brand: Supermicro
SKU: MBD-X11DPI-NT
Price: 713.1 EUR
Availability: InStock

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors - E-ATX - Intel® C622 - Dual - Up to 205W TDP - DDR4 3DS RDIMM2TB - PCI-E 3.0 4 x162 x8

€713,10

(Excl. btw)

€862,85

(Incl. btw)

Verzending binnen 7-10 werkdagen

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Supermicro Product ID: MBD-X11DPI-NT

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31(0)85-3018585

Begin Chat

Specificaties

P/N: X11DPI-NT

Key Features

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 2 UPI up to 10.4 GT/s
Intel® C622
Up to 4TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 4TB 3DS ECC LRDIMM, DDR4-2933MHz
Or 2TB Intel© PMem, DDR4-2666MHz, in 16 DIMM slots;
Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);
4 PCIe 3.0 x16,
2 PCIe 3.0 x8,
2 PCIe 3.0 NVMe x4 Internal Port(s)
M.2 Interface: PCIe 3.0 x4
M.2 Form Factor: 2260, 2280, 22110
M.2 Key: M-Key
Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
Dual LAN with 10GBase-T with Intel® X722 + X557
1 VGA port

...

Optimized Servers

SYS-2029P-C1RT SYS-6029P-TRT SYS-7049P-TRT

Product SKUs
MBD-X11DPI-NT

Physical Stats
Form Factor	E-ATX
Dimension	12" x 13" (30.48cm x 33.02cm)

Processor
CPU	2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, Dual UPI up to 10.4 GT/s
Core	Up to 28 cores
Note	BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP

System Memory
Memory Capacity	16 DIMM slots Up to 2TB Intel® Optane™ Persistent Memory 200 Series, DDR4-2666MT/s Up to 4TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 4TB 3DS ECC RDIMM, DDR4-2933MT/s Up to 2TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
Memory Type	2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes	LRDIMM: 128GB RDIMM: 64GB
Memory Voltage	1.2V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)

On-Board Devices
Chipset	Intel® C622
SATA	Intel® C622 controller for 14 SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI	ASPEED AST2500
Graphics	1 ASPEED AST2500 BMC port(s)
Network Controllers	Dual LAN with 10GBase-T with Intel® X722 + X557

Input / Output
SATA	14 SATA3 (6Gbps) port(s)
USB	4 USB 2.0 port(s) (2 via header; 2 rear) 3 USB 3.2 Gen1 port(s) (2 via header; 1 type A) 2 USB 3.0 port(s) (2 rear)
Video Output	1 VGA port(s)
Serial Port	2 COM Port(s) (1 header; 1 rear)
DOM	2 SuperDOM (Disk on Module) ports
TPM	1 TPM Header

Expansion Slots
PCIe	4 PCIe 3.0 x16, 2 PCIe 3.0 x8
M.2	M.2 Interface: PCIe 3.0 x4 Form Factor: 22110, 2280, 2260 Key: M-Key

System BIOS
BIOS Type	AMI UEFI

Management
Software	SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, Intel® Node Manager, SSM, IPMI2.0, Watchdog

PC Health Monitoring
Voltage	Monitors CPU voltages, 3.3V standby, +5V standby, +5V, +3.3V, +12V
LED	UID/Remote UID Power LED BMC/IPMI Heartbeat LED CPU / System Overheat LED
Temperature	Monitoring for CPU and chassis environment CPU thermal trip support PECI
FAN	8x 4-pin fan headers (up to 8 fans) PWM fan speed control
Other Features	UID, RoHS, Node Manager Support, CPU thermal trip support for processor protection, Control of power-on for recovery from AC power loss, Chassis intrusion header, Chassis intrusion detection, ATX Power connector, ACPI power management, SDDC, NCSI header

Operating Environment
Operating Temperature Range	10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range	-40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range	8% - 90% (non-condensing)
Non Operating Relative Humidity Range	5% - 95% (non-condensing)
