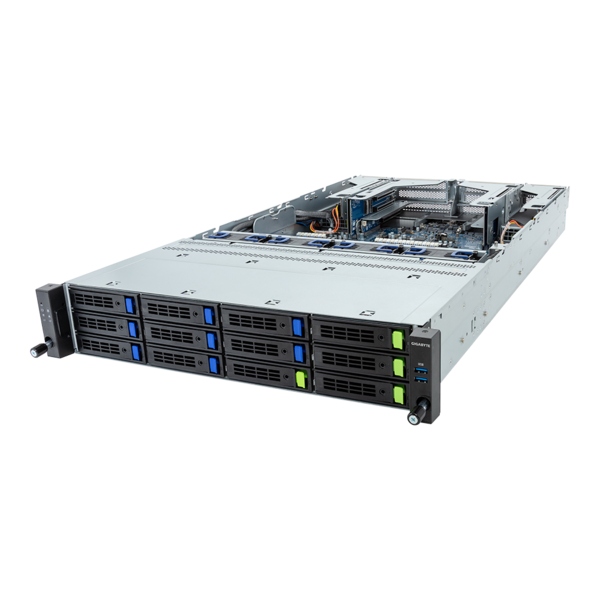

1. R283-P93-AAL1

Rack Arm Server - AmpereOne™ Family - 2U DP 12-Bay Gen4 NVMe/SATA/SAS

• Dual AmpereOne™ Family
• 8-Channel RDIMM DDR5, 32 x DIMMs
• Dual ROM Architecture
• 2 x 1Gb/s LAN ports via Intel® I350-AM2
• 4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
• 8 x 3.5"/2.5" SATA/SAS hot-swappable bays
• 1 x M.2 slot with PCIe Gen5 x4 interface
• 2 x FHFL PCIe Gen5 x16 slots
• 2 x FHHL PCIe Gen5 x16 slots
• 2 x LP PCIe Gen5 x16 slots
• 2 x OCP 3.0 Gen5 x16 slots
• 1+1 2700W 80 PLUS Titanium redundant power supplies

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)

2U
438 x 87.5 x 815

CPU

AmpereOne™ Family
Dual processor, 5nm technology
Up to 192 custom cores per processor
TDP up to 400W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Memory

32 x DIMM slots
DDR5 memory supported only
8-Channel memory architecture
ECC RDIMM up to 512GB supported
Memory speed: Up to 4800 MT/s

LAN

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps management LAN

Video

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Storage

Front side:
4 x 3.5"/2.5" Gen4 NVMe/SATA/SAS hot-swappable bays
8 x 3.5"/2.5" SATA/SAS hot-swappable bays
- (NVMe from CPU_1, SATA from CPU_1)

SAS card is required for SAS devices support

SAS

Depends on SAS add-in cards

Expansion Slots

Riser Card CRS101J:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0

Riser Card CRS101K:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

Riser Card CRS202G:
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_0

Riser Card CRS202H:
- 1 x PCIe x16 (Gen5 x16) FHFL slot, from CPU_1

Riser Card CRS2018 x 2:
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_0
- 1 x PCIe x16 (Gen5 x16) low-profile slot, from CPU_1

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen5 x4
- Supports 2280/22110 cards

Internal I/O

1 x TPM header

Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED

Backplane Board

Speed and bandwidth:
PCIe Gen4 x4 or SATA 6Gb/s or SAS 12Gb/s

TPM

1 x TPM header with SPI interface

Power Supply

1+1 2700W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1008W/ 100-127V~
+ 12V/ 84A
+ 12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+ 12V/ 225A
+ 12Vsb/ 3A

Note: The system power supply requires C19 power cord.

System Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

4 x 80x80x38mm (18,300rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

1077 x 679 x 300 mm

Packaging Content

1 x R283-P93-AAL1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR283P93DR000AAL1*
- Motherboard: 9MP93FS0UR-000
- 2-Section Rail kit: 25HB2-3A0206-K0R
- CPU heatsink: TBD
- M.2 heatsink: 12SP2-11000E-00R (TBD)
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20C5: 9CBP20C5NR-00
- Fan module: 25ST2-88382T-S1R
- Riser card - CRS101J: 9CRS101JNR-00
- Riser card - CRS101K: 9CRS101KNR-00
- Riser card - CRS202G: 9CRS202GNR-00
- Riser card - CRS202H: 9CRS202HNR-00
- Riser card - CRS2018: 9CRS2018NR-00
- G-SCM board - CDCR115: 9CDCR115UR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R (TBD)
- Power supply module: 25EP0-227000-D0S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit: 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
