1. R282-P91

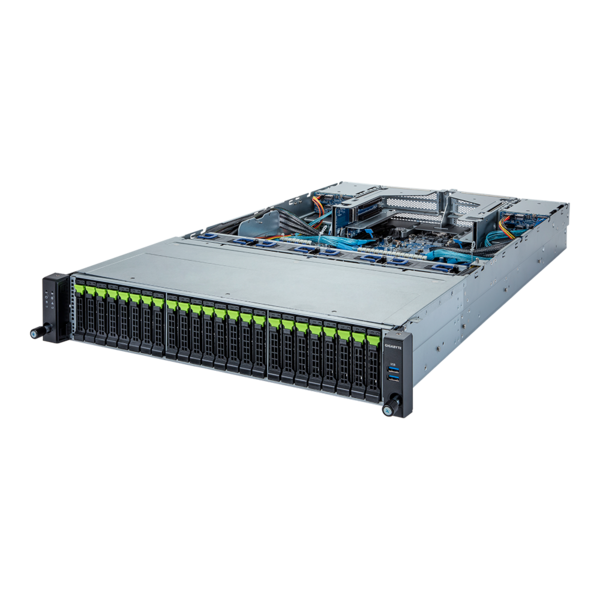

Rack Arm Server - Ampere® Altra® Max - 2U DP 24+4-Bay Gen4 NVMe/SATA

• Ampere® Altra® Max Processors
• Dual processor, 7nm technology
• 8-Channel RDIMM/LRDIMM DDR4, 32 x DIMMs
• Dual ROM Architecture
• 2 x 1Gb/s LAN ports (Intel® I350-AM2)
• 1 x Dedicated management port
• 24 x 2.5" Gen4 NVMe hot-swappable bays
• 4 x 2.5" SATA hot-swappable bays on rear side
• 1 x M.2 slot with PCIe Gen4 x4 interface
• 4 x FHHL PCIe Gen4 x16 slots
• 1+1 1600W 80 PLUS Platinum redundant power supplies

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)

2U
438 x 87 x 815

CPU

Ampere® Altra® Max Processors
Dual processor, 7nm technology
Up to 128-core per processor, TDP 250W

NOTE: If only 1 CPU is installed, some PCIe or memory functions might be unavailable

Memory

32 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 256GB supported
LRDIMM modules up to 256GB supported
Up to 4TB of memory capacity supported per processor
Memory speed: Up to 3200 MHz

NOTE: Only supports configurations with 1, 2, 4, 6, 8, 12, or 16 DIMMs

LAN

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
NCSI function supported

1 x 10/100/1000 Mbps management LAN

Video

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp, DDR4 SDRAM

Storage

Front side:
24 x 2.5" Gen4 NVMe hot-swappable bays
- (12 x from CPU_0, 12 x from CPU_1)

Rear side:
4 x 2.5" SATA hot-swappable bays, from CPU_1 (onboard SATA controller ASM1166)

Expansion Slots

Riser Card CRS101J:
- 1 x PCIe x16 (Gen4 x16) FHHL slot

Riser Card CRS101K:
- 1 x PCIe x16 (Gen4 x16) FHHL slot

Riser Card CRS202G:
- 1 x PCIe x16 (Gen4 x16) FHHL slot
- 1 x PCIe slot disabled

Riser Card CRS202H:
- 1 x PCIe x16 (Gen4 x16) FHHL slot
- 1 x PCIe slot disabled

2 x OCP 3.0 slots with PCIe Gen4 x16 bandwidth, occupied for NVMe support

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU_0
- Supports 2242/2260/2280/22110 cards

Internal I/O

1 x M.2 slot
1 x TPM header
1 x Front panel header
1 x Backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper

Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x HDD activity LED
1 x System status LED

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN

Backplane Board

Speed and bandwidth:
Front side - CBP20O7: PCIe Gen4 x4
Rear side - CBP2022: SATA 6Gb/s

TPM

1 x TPM header with SPI interface

Power Supply

1+1 1600W 80 PLUS Platinum redundant power supplies (-100)

AC Input:
- 100-120V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz

DC Input:
- 240Vdc/ 10A

DC Output:
- Max 1000W/ 100-120V~
+ 12V/ 81.5A
+ 12Vsb/ 2.5A
- Max 1600W/ 200-240V~ or 240Vdc Input
+ 12V/ 133A
+ 12Vsb/ 2.5A

1+1 1600W 80 PLUS Titanium redundant power supplies (-1T0)

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz

DC Input:
- 240Vdc/ 8A

DC Output:
- Max 1000W/ 100-127V~
+ 12.2V/ 82A
+ 12Vsb/ 3A
- Max 1600W/ 200-240V~
+ 12.2V/ 132A
+ 12Vsb/ 3A

System Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

OS Compatibility

Red Hat Enterprise Linux 8.3 (aarch64) or later
Red Hat Enterprise Linux 8.5 (aarch64) or later

SUSE Linux Enterprise Server 15 SP2 (aarch64) or later
SUSE Linux Enterprise Server 15 SP3 (aarch64) or later

Ubuntu 18.04.5 LTS (aarch64) or later
Ubuntu 20.04.1 LTS (aarch64) or later

Fedora Server 33-1.2 (aarch64) or later
Fedora Server 35-1.2 (aarch64) or later

OracleLinux R8 U2
OracleLinux R8 U5

Debian 10.9 (Buster)
Debian 11.1

System Fans

4 x 80x80x38mm (16,300rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

1077 x 679 x 300 mm

Packaging Content

1 x R282-P91
2 x CPU heatsinks
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR282P91DR-00-1*
- Motherboard: 9MP92FS0NR-00
- 2-Section Rail kit: 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-323207-A0R
- Front panel board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20O7: 9CBP20O7NR-00
- Backplane board - CBP2022: 9CBP2022NR-00
- Fan module: 25ST2-883829-D0R
- Riser Card - CRS101J: 9CRS101JNR-00
- Riser Card - CRS101K: 9CRS101KNR-00
- Riser Card - CRS202G: 9CRS202GNR-00
- Riser Card - CRS202H: 9CRS202HNR-00
- G-SC Module - CDCR111: 9CDCR111UR-00
- Power supply (-100): 25EP0-216008-L0S
- Power supply (-1T0): 25EP0-21600D-G1S

Optional parts:

- 3-Section Rail kit: 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
