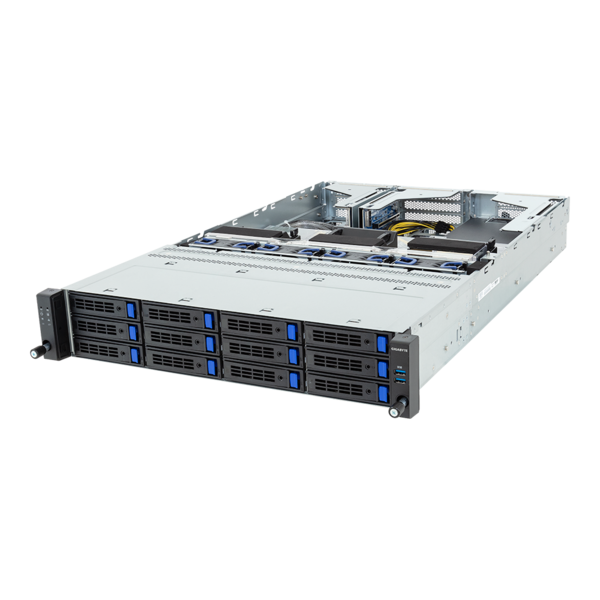

1. R243-E33-AAL1

Rack Server - AMD EPYC™ 8004 - 2U UP 3 x PCIe Gen5 GPUs Titanium

• Supports up to 3 x Dual slot Gen5 GPUs
• Single AMD EPYC™ 8004 Series Processors
• 6-Channel RDIMM DDR5, 12 x DIMMs
• Dual ROM Architecture
• 1 x 1Gb/s LAN port via Intel® I210-AT
• 12 x 3.5"/2.5" SATA/SAS-4 hot-swappable bays
• 1 x M.2 slot with PCIe Gen3 x4 interface
• 3 x FHFL PCIe Gen5 x16 slots for GPUs
• 2 x OCP 3.0 Gen5 x16 slots
• 1+1 2700W 80 PLUS Titanium redundant power supplies

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)

2U
438 x 87.5 x 710

CPU

AMD EPYC™ 8004 Series Processors
Single processor, 5nm technology
Up to 64 cores, 128 threads
cTDP up to 225W

Socket

1 x LGA 4844
Socket SP6

Memory

12 x DIMM slots
DDR5 memory supported only
6-Channel memory architecture
RDIMM up to 96GB supported
Memory speed: Up to 4800 MT/s (1DPC), 3600 MT/s (2DPC)

LAN

Rear side:
1 x 1Gb/s LAN port (1 x Intel® I210-AT)
Supports NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Storage

Front side:
12 x 3.5"/2.5" SATA/SAS-4* hot-swappable bays

*SAS card is required to support SAS drives.

SAS

Require SAS add-in cards

RAID

Require RAID add-in cards

Expansion Slots

Riser Card CRS201H:
- 1 x PCIe x16 (Gen5 x16) FHFL slot, for GPUs

Riser Card CRS201M:
- 1 x PCIe x16 (Gen5 x16) FHFL slot, for GPUs

PCIe Cable:
- 1 x PCIe x16 (Gen5 x16) FHFL slot, for GPUs

2 x OCP 3.0 slots with PCIe Gen5 x16 bandwidth
Support NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2280/22110 cards

Internal I/O

1 x TPM header

Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs (1 x LED disabled)
1 x Storage activity LED
1 x System status LED

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
1 x RJ45
1 x MLAN
1 x ID button with LED

Backplane Board

Speed and bandwidth:
SATA 6Gb/s or SAS-4 24Gb/s

TPM

1 x TPM header with SPI interface

Power Supply

1+1 2700W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 16A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 16A

DC Output:
- Max 1008W/ 100-127V~
+12V/ 84A
+12Vsb/ 3A
- Max 2700W/ 200-240V~ or 240Vdc Input
+12V/ 225A
+12Vsb/ 3A

Note: The system power supply requires C19 power cord.

System Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

4 x 80x80x38mm (18,300rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

989 x 594 x 279 mm

Packaging Content

1 x R243-E33-AAL
1 x CPU heatsink
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR243E33DR000AAL1*
- Motherboard: 9ME33DC0UR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0203-K0R
- CPU heatsink: 25ST1-44320G-A0R
- M.2 heatsink: 12SP2-11000E-00R
- Front board - CFP2001: 9CFP2001NR-00
- Backplane board - CBP20C7: 9CBP20C7NR-00
- Fan module: 25ST2-88382T-S1R
- Riser card - CRS201H: 9CRS201HNR-00
- Riser card - CRS201M: 9CRS201MNR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- GPU power cable (12VHPWR, 360mm): 25CRI-360102-Y4R
- GPU power cable (12VHPWR, 490mm): 25CRI-490102-Y4R
- Power supply: 25EP0-227000-D0S

Optional parts:

- C19 power cord 125V/15A (US): 25CP1-018000-Q0R
- C19 power cord 250V/16A (EU): 25CP3-01830H-Q0R
- C19 power cord 125V/15A (JP): 25CPA-01830B-Q0R
- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
