1. R184-S90-AAV1

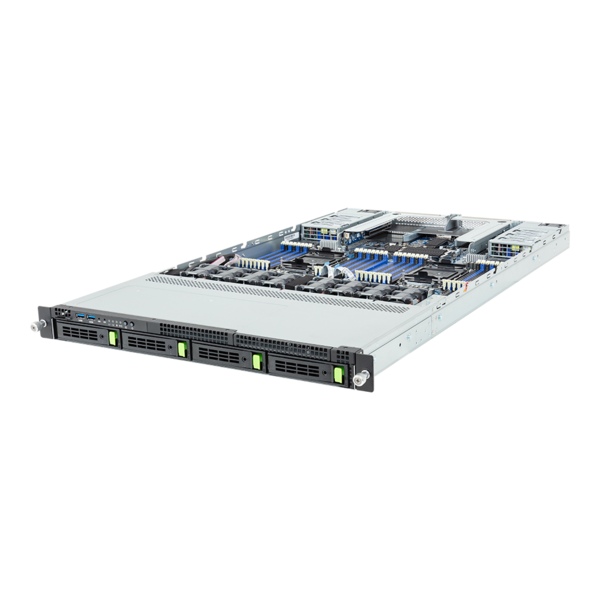

Rack Server - Intel® Xeon® 6 Processors - 1U DP 4-Bay Gen5 NVMe/SATA/SAS-4

• Dual Intel® Xeon® 6 Processors, LGA 4710
• 8-Channel DDR5 RDIMM / MCR DIMM, 32 x DIMMs
• Dual ROM Architecture
• 2 x 1Gb/s LAN ports via Intel® I350-AM2
• 4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
• 3 x M.2 slots with PCIe Gen5 x4 and x2 interface
• 2 x FHHL PCIe Gen5 x16 slots
• 2 x OCP 3.0 Gen5 x16 slots
• 1+1 1600W 80 PLUS Titanium redundant power supplies

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)

1U
438 x 43.5 x 815

CPU

Intel® Xeon® 6 Processors
- Intel® Xeon® 6700E-Series Processors
- Intel® Xeon® 6700P-Series Processors (available Q1'25)
- Intel® Xeon® 6500P-Series Processors (available Q1'25)

Dual processor, TDP up to 350W

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 4710
Socket E2

Memory

32 x DIMM slots
DDR5 memory supported
MCR DIMM supported*
8-Channel memory architecture
RDIMM: Up to 6400 MT/s (1DPC), 5200 MT/s (2DPC)
MCR DIMM: Up to 8000 MT/s

*MCR DIMMs are only supported with Intel® Xeon® 6 Processors with P-cores and in a 1DPC configuration.

LAN

Rear side:
On I/O board:
- 2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
- Support NCSI function
- 1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Storage

Front side:
4 x 3.5"/2.5" Gen5 NVMe/SATA/SAS-4* hot-swappable bays
- (NVMe from CPU_0)

*Storage card is required to support SATA and SAS drives.

SAS

Require SAS add-in cards

RAID

Require RAID add-in cards

Expansion Slots

Riser Card CRS101J:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0

Riser Card CRS101K:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function

2 x M.2 slots:
- M-key
- PCIe Gen5 x4, from CPU_1
- Support 2280/22110 cards

1 x M.2 slot (On I/O board):
- M-key
- PCIe Gen5 x2, from CPU_0
- Supports 2280 cards

Internal I/O

1 x TPM header
1 x PRoT connector
1 x VROC connector

Front I/O

2 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x NMI button
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

Rear I/O

On I/O board:
- 2 x USB 3.2 Gen1
- 1 x Mini-DP
- 2 x RJ45
- 1 x MLAN
- 1 x ID LED

Backplane Board

Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

Security Modules

1 x TPM header with SPI interface

1 x PRoT module connector (M.2 M-key)

Power Supply

1+1 1600W 80 PLUS Titanium redundant power supplies

AC Input:
- 100-127V~/ 12A, 50-60Hz
- 200-240V~/ 10A, 50-60Hz

DC Input: (Only for China)
- 240Vdc/ 8A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12.2Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 132A
+12.2Vsb/ 3A

Note: GIGABYTE provides PSUs with various energy efficiency ratings and power outputs. Please contact our sales representatives to determine the best configuration for your system.

System Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

8 x 40x40x56mm (32,000rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

1045 x 595 x 249 mm

Packaging Content

1 x R184-S90-AAV1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
4 x Carriers
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR184S90DR000AAV1*
- Motherboard: 9MS94FS0UR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-4Z3200-S7R
- M.2 heatsink (2280): 12SP2-080027-00R
- M.2 heatsink (22110): 12SP2-11000E-00R
- Front panel board - CFP1010: 9CFP1010NR-00
- Backplane board - CBP1048: 9CBP1048NR-00
- Fan module: 25ST2-40562H-A0R
- Riser card - CRS101J: 9CRS101JNR-00
- Riser card - CRS101K: 9CRS101KNR-00
- I/O board with M.2 slot - CDCR010: 9CDCR010NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-21600D-G1S

Optional parts:

- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
