1. R183-Z94-AAV1

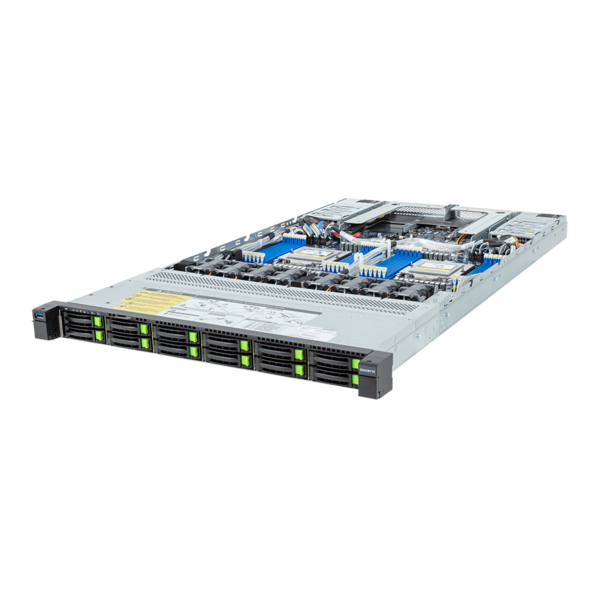

Rack Server - AMD EPYC™ 9004 - 1U DP 12-Bay Gen5 NVMe/SATA/SAS-4 Titanium

• Dual AMD EPYC™ 9004 Series Processors (with AMD 3D V-Cache™ Technology)
• 12-Channel DDR5 RDIMM, 24 x DIMMs
• Dual ROM Architecture
• 2 x 1Gb/s LAN ports via Intel® I350-AM2
• 12 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
• 3 x M.2 slots with PCIe Gen3 x4 and x2 interface
• 2 x FHHL PCIe Gen5 x16 slots
• 2 x OCP 3.0 Gen5 x16 slots
• Dual 1600W 80 PLUS Titanium redundant power supply

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)

1U
438 x 43.5 x 815

CPU

AMD EPYC™ 9004 Series Processors
AMD EPYC™ 9004 Series Processors with AMD 3D V-Cache™ Technology
Dual processor, 5nm technology
*Up to 128 cores, 256 threads per processor
cTDP up to 300W at ambient 35°C

Supports EPYC 9654 cTDP 400W, OCP3.0 ≦ 21W at ambient 30°C.

*cTDP supported up to 400W under limited thermal conditions. Please contact technical support for more details.

Note: If only 1 CPU is installed, some PCIe or memory functions might be unavailable.

Socket

2 x LGA 6096
Socket SP5

Memory

24 x DIMM slots
DDR5 memory supported only
12-Channel memory architecture
RDIMM up to 96GB supported
3DS RDIMM up to 256GB supported
Memory speed: Up to 4800 MT/s

LAN

Rear side:
2 x 1Gb/s LAN ports (1 x Intel® I350-AM2)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Storage

Front side:
12 x 2.5" Gen5 NVMe/SATA/SAS-4 hot-swappable bays
- (4 x NVMe from CPU_0, 8 x NVMe from CPU_1)
- (SATA from CPU_0)

SAS card is required for SAS devices support

SAS

Depends on SAS add-in cards

Expansion Slots

PCIe Cable x 2:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_0
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU_1

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_0
Supports NCSI function

1 x OCP 3.0 slot with PCIe Gen5 x16 bandwidth, from CPU_1
Supports NCSI function

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_0
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x4, from CPU_1
- Supports 2280/22110 cards

1 x M.2 slot:
- M-key
- PCIe Gen3 x2, from CPU_1
- Supports 2280/22110 cards

Internal I/O

1 x TPM header

Front I/O

1 x USB 3.2 Gen1
1 x Power button with LED
1 x ID button with LED
1 x Reset button
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

Rear I/O

2 x USB 3.2 Gen1
1 x Mini-DP
2 x RJ45
1 x MLAN
1 x ID LED

Backplane Board

Speed and bandwidth:
PCIe Gen5 x4 or SATA 6Gb/s or SAS-4 24Gb/s

TPM

1 x TPM header with SPI interface

Power Supply

Dual 1600W 80 PLUS Titanium redundant power supply

AC Input:
- 100-240V~/ 12-9.5A, 50/60Hz

DC Input: (Only for China)
- 240Vdc/ 9.5A

DC Output:
- Max 1000W/ 100-127V~
+12.2V/ 82A
+12Vsb/ 3A
- Max 1600W/ 200-240V~ or 240Vdc Input
+12.2V/ 131.2A
+12Vsb/ 3A

System Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced power capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

8 x 40x40x56mm (32,000rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Weight

Net Weight: 23 kg
Gross Weight: 25 kg

Packaging Dimensions

1045 x 595 x 249 mm

Packaging Content

1 x R183-Z94-AAV1
2 x CPU heatsinks
1 x Mini-DP to D-Sub cable
1 x 2-Section Rail kit

Part Numbers

- Barebone package: 6NR183Z94DR000AAV1*
- Motherboard: 9MZ93FS1UR-000
- 2-Section Rail kit (CMA not supported): 25HB2-3A0206-K0R
- CPU heatsink: 25ST1-553202-A0R
- M.2 heatsink: 12SP2-11000E-00R
- Front panel board - CFP1030: 9CFP1030NR-00
- Backplane board - CBP10C2: 9CBP10C2NR-00
- Fan module: 25ST2-40562H-A0R
- G-SCM board - CDCR114: 9CDCR114NR-00
- Mini-DP to D-Sub cable: 25CRN-200801-K1R
- Power supply: 25EP0-21600E-L0S

Optional parts:

- 3-Section Rail kit (Supports CMA): 25HB2-A56121-K0R
- Cable Management Arm: 25HB1-R18300-K0R
- RMA packaging: 6NR183Z94SR-RMA-A100
