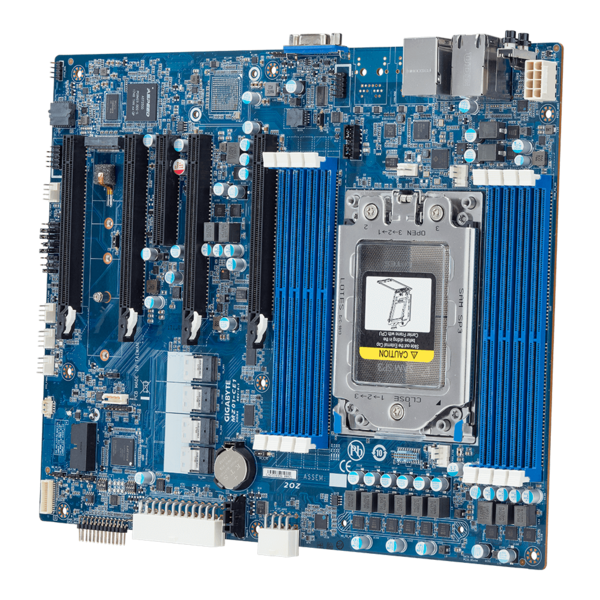

MZ01-CE1 - EPYC™ 7003 UP Server Board - ATX

• AMD EPYC™ 7003 series processor family • Single processor, 7nm technology • 8-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs • 2 x 1Gb/s LAN ports (Intel® I210-AT) • 1 x dedicated management port • 4 x SlimSAS with 16 x SATA...

Vraag offerte aan voor prijsinformatie

526,40
(Excl. btw)
526.40
636,94
(Incl. btw)
Beschikbaarheid opvragen

GIGABYTE  ID: 9MZ01CE1MR-00

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

Specificaties
  1. MZ01-CE1

AMD EPYC™ 7003 UP Server Board - ATX

  • AMD EPYC™ 7003 series processor family
  • Single processor, 7nm technology
  • 8-Channel RDIMM/LRDIMM DDR4, 8 x DIMMs
  • 2 x 1Gb/s LAN ports (Intel® I210-AT)
  • 1 x dedicated management port
  • 4 x SlimSAS with 16 x SATA 6Gb/s ports
  • 1 x M.2 slot with PCIe Gen3 x4 interface
  • Up to 5 x PCIe Gen3 expansion slots
  • Aspeed® AST2500 remote management controller

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Form Factor

ATX
305W x 244D (mm)

CPU

AMD EPYC™ 7003 series processor family
Single processor, 7nm technology
Up to 64-core, 128 threads per processor
CPU TDP up to 240W

Fully support 280W

NOTE: Please make sure Fan-sink supports over 280W CPU

Compatible with AMD EPYC™ 7002 series processor family

Socket

1 x LGA 4094
Socket SP3

Memory

8 x DIMM slots
DDR4 memory supported only
8-Channel memory architecture
RDIMM modules up to 128GB supported
LRDIMM modules up to 128GB supported
3DS RDIMM/LRDIMM modules up to 256GB supported
Memory speed: Up to 3200 MHz

LAN

2 x 1Gb/s LAN ports (Intel® I210-AT)
1 x 10/100/1000 management LAN

Video

Integrated in Aspeed® AST2500
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

SATA

4 x SlimSAS with 16 x SATA III 6Gb/s ports

Expansion Slots

Slot_7 (PCIe_7): 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_5 (PCIe_5): 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_4 (PCIe_4): 1 x PCIe x8 (Gen3 x8 bus) slot
Slot_3 (PCIe_3): 1 x PCIe x16 (Gen3 x16 bus) slot
Slot_1 (PCIe_1): 1 x PCIe x16 (Gen3 x16 bus) slot

1 x M.2 slot:
- M-key
- PCIe Gen3 x4
- Supports 2242/2260/2280/22110 cards

Internal I/O

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors
4 x SlimSAS connectors
1 x M.2 slot
1 x CPU fan header
6 x System fan headers
1 x USB 3.0 header
2 x COM headers
1 x TPM header
1 x Front panel header
1 x HDD backplane board header
1 x PMBus connector
1 x IPMB connector
1 x Clear CMOS jumper
1 x BIOS recovery jumper

Rear I/O

2 x USB 3.0
1 x VGA
2 x RJ45
1 x MLAN
1 x ID switch with LED
1 x Power switch with LED

TPM

1 x TPM header with LPC interface

OS Compatibility

Windows Server 2016 (X2APIC/256T not supported)
Windows Server 2019
Windows Server 2022

Red Hat Enterprise Linux 8.3 (x64) or later
Red Hat Enterprise Linux 9.0 (x64) or later

SUSE Linux Enterprise Server 12 SP5 (x64) or later
SUSE Linux Enterprise Server 15 SP2 (x64) or later

Ubuntu 18.04.5 LTS (x64) or later
Ubuntu 20.04 LTS (x64) or later
Ubuntu 22.04 LTS (x64) or later

VMware ESXi 6.7 Update3 P03 or later
VMware ESXi 7.0 Update1 or later
VMware ESXi 8.0 or later

Citrix Hypervisor 8.2.0 or later

Board Management

Aspeed® AST2500 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

  • Dashboard
  • JAVA Based Serial Over LAN
  • HTML5 KVM
  • Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
  • Sensor Reading History Data
  • FRU Information
  • SEL Log in Linear Storage / Circular Storage Policy
  • Hardware Inventory
  • Fan Profile
  • System Firewall
  • Power Consumption
  • Power Control
  • LDAP / AD / RADIUS Support
  • Backup & Restore Configuration
  • Remote BIOS/BMC/CPLD Update
  • Event Log Filter
  • User Management
  • Media Redirection Settings
  • PAM Order Settings
  • SSL Settings
  • SMTP Settings

PSU Connectors

1 x 24-pin ATX main power connector
2 x 8-pin ATX 12V power connectors

Operating Properties

Operating temperature: 10°C to 40°C
Operating humidity: 8-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Retail Packaging Content

1 x MZ01-CE1
1 x I/O shield
1 x Quick start guide
1 x SlimSAS to SATAIII 6Gb/s cable
Single Box dimensions: 360 x 330 x 80 mm
Carton dimensions: 674 x 424 x 385 mm
Quantity: 10 x single boxes in one carton

Bulk Packaging Content

10 x MZ01-CE1
10 x I/O shields
Carton dimensions: 600 x 473 x 495 mm

Reference Numbers

Retail: 9MZ01CE1MR-00 Rev. 3.0
Bulk: 9MZ01CE1NR-00 Rev. 3.0

Part Numbers:
- I/O shield: 12AIO-MZ01C1-00R
- SlimSAS to SATAIII 6Gb/s cable: 25CFM-600800-A4R
- Quick start guide: 12QM1-MZ01CE-01H
- Fan-sink: 12SF2-01A067-00R (optional)
