SupermicroMotherboard X11DPT-BH Dual 2nd Gen Intel® Xeon® Scalable Processor2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors - Proprietary Twin - Intel® C621 - Dual - Up to 205W TDP - DDR4 3DS RDIMM6TB - PCI-E 3.0 1 x16 Left Riser Slot1 x16 Right Riser Slot
Expertise in geïntegreerde oplossingen
Ongeëvenaarde kwaliteitsborging
24/7 op maat gemaakte klantenondersteuning
Supermicro Direct Partner

Supermicro

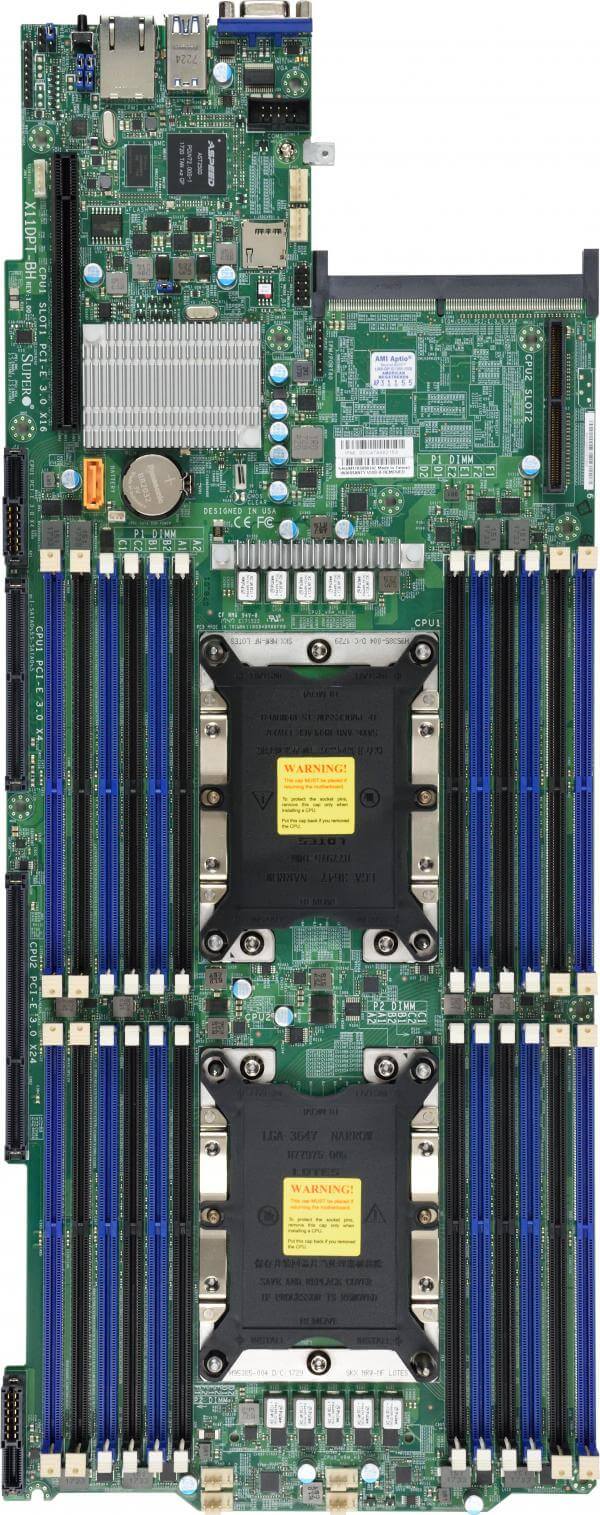

Motherboard X11DPT-BH Dual 2nd Gen Intel® Xeon® Scalable Processor

2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors - Proprietary Twin - Intel® C621 - Dual - Up to 205W TDP - DDR4 3DS RDIMM6TB - PCI-E 3.0 1 x16 Left Riser Slot1 x16 Right Riser Slot

Vraag offerte aan voor prijsinformatie

0,00
(Excl. btw)
0.00
0,00
(Incl. btw)
Op voorraad

Supermicro  ID: MBD-X11DPT-BH

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

Specificaties
P/N: X11DPT-BH

Key Features


  1. 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors,
    Dual Socket LGA-3647 (Socket P) supported, CPU TDP support Up to 205W TDP, 3 UPI up to 10.4 GT/s
  2. Intel® C621
  3. Up to 6TB 3DS ECC RDIMM, DDR4-2933MHz; Up to 6TB 3DS ECC LRDIMM, DDR4-2933MHz
    Or 6TB DCPMM, DDR4-2666MHz, in 24 DIMM slots;
    Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only);

  4. 1 PCIe 3.0 x16 Left Riser Slot,
    1 PCIe 3.0 x16 Right Riser Slot
    1 PCIe 3.0 x24 Proprietary Slot (for Supermicro storage add-on card),
    _x000D_ 1 PCIe 3.0 x16 SIOM LAN Networking Slot,
    _x000D_ 1 PCIe 3.0 x8 Proprietary Slot (For M.2 add-on card)

  5. Intel® C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10
  6. 1 VGA port
  7. Single LAN with
    Networking option provided via SIOM module
...
...

Optimized Servers


SYS-2029BZ-HNR
Product SKUs
MBD-X11DPT-BH
Physical Stats
Form Factor
  • Proprietary Twin
Dimension
  • 7.62" x 19.4" (19.35cm x 49.28cm)
Processor
CPU
  • 2nd Gen Intel® Xeon® Scalable Processors and Intel® Xeon® Scalable Processors
  • Dual Socket Socket P (LGA-3647) supported, CPU TDP supports Up to 205W TDP, 3 UPI up to 10.4 GT/s
Core
  • Up to 28 cores
Note
  • BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
  • BIOS version 3.0a or above is required to support 2nd Generation Intel Xeon Scalable Processors-SP
    BIOS version 3.2 or above is required to support 2nd Gen Intel® Xeon® Scalable processors (codenamed Cascade Lake-R)
System Memory
Memory Capacity
  • 24 DIMM slots
  • Up to 6TB Intel® Optane™ Persistent Memory 200 Series, DDR4-2666MT/s
  • Up to 6TB 3DS ECC LRDIMM, DDR4-2933MT/s; Up to 6TB 3DS ECC RDIMM, DDR4-2933MT/s
  • Up to 6TB Intel® Optane™ DC Persistent Memory in memory mode (Cascade Lake only)
Memory Type
  • 2933/2666/2400/2133 MT/s ECC DDR4 LRDIMM (3DS), RDIMM (3DS)
DIMM Sizes
  • LRDIMM: 64GB
  • RDIMM: 64GB
Memory Voltage
  • 1.2V
Error Detection
  • Corrects single-bit errors
  • Detects double-bit errors (using ECC memory)
On-Board Devices
Chipset
  • Intel® C621
SATA
  • Intel® C621 controller for SATA3 (6 Gbps) ports; RAID 0,1,5,10
IPMI
  • ASPEED AST2500
Graphics
  • 1 ASPEED AST2500 BMC port(s)
Network Controllers
  • Single LAN, Networking option provided via SIOM module
Input / Output
SATA
  • 8 SATA3 (6Gbps) port(s)
LAN
  • 1 Flexible LAN expansion via SIOM module
USB
  • 2 USB 3.0 port(s) (2 rear)
Video Output
  • 1 VGA port(s)
DOM
  • 1 SATA DOM (Disk on Module) power connector support
TPM
  • 1 TPM Header
Expansion Slots
PCIe
  • 1 PCIe 3.0 x16 Left Riser Slot,
  • 1 PCIe 3.0 x16 Right Riser Slot
  • 1 PCIe 3.0 x24 Proprietary Slot (for Supermicro storage add-on card),
  • 1 PCIe 3.0 x16 SIOM LAN Networking Slot,
  • 1 PCIe 3.0 x8 Proprietary Slot (For M.2 add-on card)
System BIOS
BIOS Type
  • AMI UEFI
Management
Software
  • SuperDoctor® 5, SUM, KVM with dedicated LAN, SPM, SSM, IPMI2.0, Watchdog
Power Configurations
  • ACPI Power Management
PC Health Monitoring
Voltage
  • Monitors CPU voltages, Chipset Voltage, 1.05 (PCH), +5V standby, +5V, +3.3V, +12V, +1.8V, Memory Voltages
LED
  • UID/Remote UID
  • BMC/IPMI Heartbeat LED
Temperature
  • Monitoring for CPU and chassis environment
  • CPU thermal trip support
  • Thermal Control for 6 Fan Connectors
FAN
  • 6x 4-pin fan headers (up to 6 fans)
  • PWM fan speed control
  • Dual Cooling Zone
Other Features
  • WOL, UID, RoHS, Node Manager Support, CPU thermal trip support for processor protection, Chassis intrusion header, Chassis intrusion detection, SDDC
Operating Environment
Operating Temperature Range
  • 10°C - 35°C (50°F - 95°F)
Non-Operating Temperature Range
  • -40°C - 70°C (-40°F - 158°F)
Operating Relative Humidity Range
  • 8% - 90% (non-condensing)
Non Operating Relative Humidity Range
  • 5% - 95% (non-condensing)
Gerelateerde producten van Supermicro
Supermicro Motherboard H13SAE-MF Single EPYC™ 4004 series Processor

Supermicro Product ID: MBD-H13SAE-MF

AMD EPYC™ 4004 series Processors - Micro-ATX - B650 - Single - Up to 170W TDP - PCI-E 3.0

Motherboards

468,67
Op voorraad
Motherboard H13SAE-MF Si...
Supermicro Motherboard H13SRA-F Single Ryzen™ Threadripper™ PRO 7000 WX-Series

Supermicro Product ID: MBD-H13SRA-F

AMD Ryzen™ Threadripper™ PRO 7000 WX-SeriesAMD Ryzen™ Threadripper™ 7000 Series - ATX - TRX50 - Single - Up to 350W TDP - 4TB - PCI-E 3.0

Motherboards

629,76
Op voorraad
Motherboard H13SRA-F Sin...
Supermicro Motherboard H13SRA-TF Single Ryzen™ Threadripper™ PRO 7000 WX-Series

Supermicro Product ID: MBD-H13SRA-TF

AMD Ryzen™ Threadripper™ PRO 7000 WX-SeriesAMD Ryzen™ Threadripper™ 7000 Series - ATX - TRX50 - Single - Up to 350W TDP - 4TB - PCI-E 3.0

Motherboards

708,33
Op voorraad
Motherboard H13SRA-TF Si...

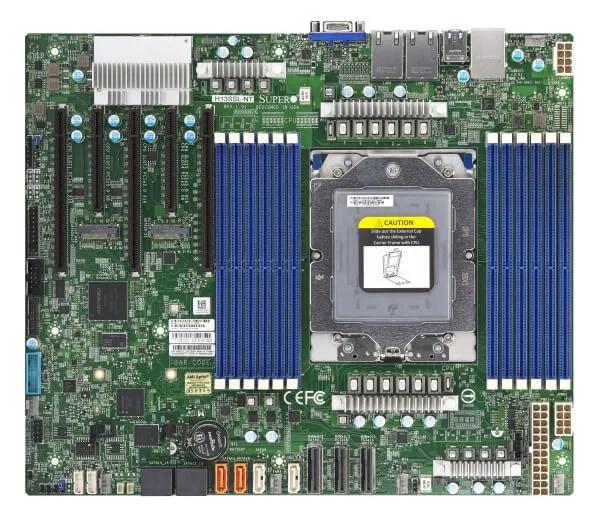

Supermicro Motherboard H13SSL-NT Single EPYC™ 9004 series Processor
