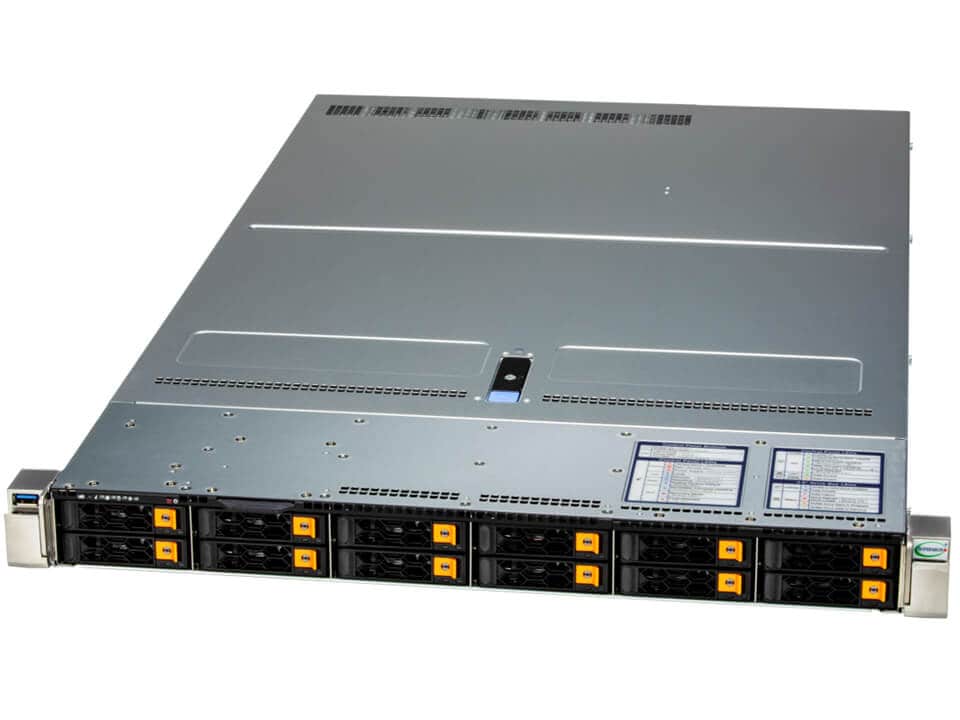

Supermicro Product ID: ARS-111M-NR

Loading Specifications...
Specifications

Key Applications

  • Enterprise Server
  • Hyperscale Data Center
  • Front End Server
  • Infrastructure

Key Features

  1. Single Socket Ampere® AmpereOne® Processor (Up to 192 Cores; Up to 3.0Ghz) ; Up to 250W TDP
  2. 16 DIMMs; Up to 4TB ECC Registered DDR5-4800MHz RDIMM/LRDIMM
  3. 3 PCIe 5.0 x16 (LP) Slots, 1 AIOM Slot (OCP3.0 Mezzanine Compatible)
  4. 2x 25Gb LAN SFP28 Ports via BCM57414 Controller w/NC-SI
  5. 12x 2.5" U.2 NVMe Hot-Swap Drive Bays
  6. 860W Redundant Titanium Level High-efficiency Power Supplies
  7. 1 VGA, 1 (Serial) Micro USB Port, 2 USB3.0 (2 Rear)
...
...
Get Pricing
ARS-111M-NR
Product SKUs
ARS-111M-NR
Motherboard
Super R13SPD
Processor
CPU
  • Single processor(s)
  • Ampere® AmpereOne® processor
Note
  • Supports 200W - 250W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 4TB 4800MT/s ECC DDR5 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.1V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • 2 SFP28 25GbE with Broadcom®
  • View AOC Options
Input / Output
LAN
  • 1 RJ45 1 GbE Dedicated IPMI LAN port(s)
  • 2 RJ45 1 GbE LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
  • 2 USB 2.0 port(s) (front)
Video
  • 1 VGA port(s)
Serial
  • 1 port(s)
Management
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
