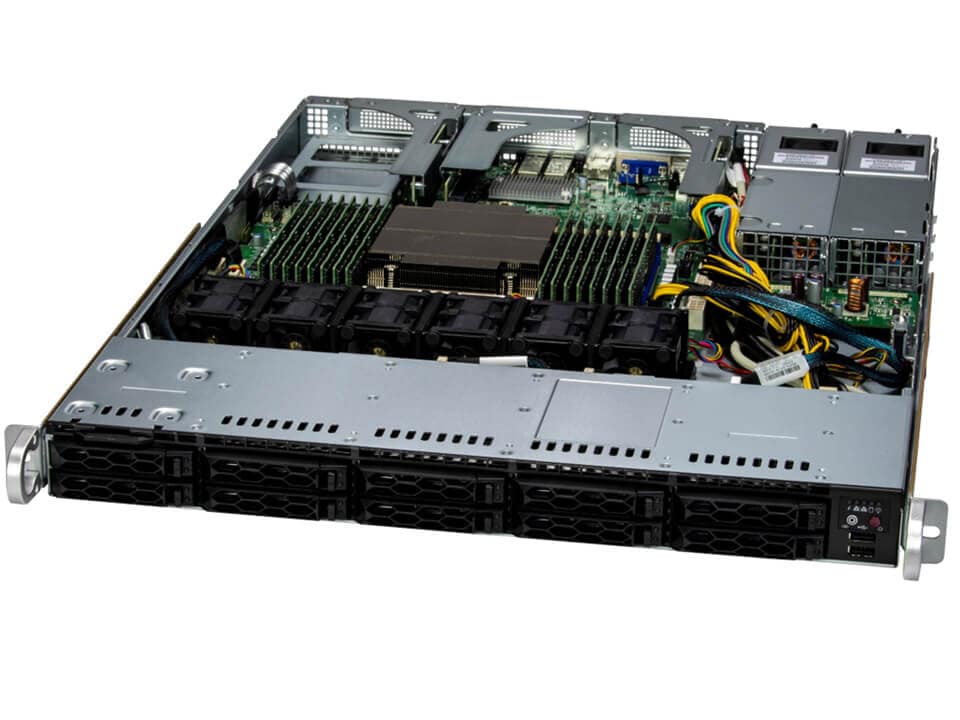

ARS-110M-NR | 1U | SuperServer | Products | Supermicro

ARS-110M-NR | 1U | SuperServer | Products | Supermicro - ARS-110M-NR - SS110M-NR - 1U - MegaDC - R12 - System - Ampere - ArmServer - ARM Server - ARM

Loading price...
Loading price...

Click here for availability

Supermicro Product ID: ARS-110M-NR

Loading Specifications...
Specifications

Key Applications

  • Enterprise Server
  • Hyperscale Data Center
  • Front End Server
  • Infrastructure

Key Features

  1. Single Socket Ampere® Altra® Processor (Up to 80 Cores; Up to 3.3Ghz) / Single Socket Ampere® Altra® Max Processor (Up to 128 Cores; Up to 3.0Ghz) ; Up to 250W TDP
  2. 16 DIMMs; Up to 4TB ECC Registered DDR4-3200MHz RDIMM/LRDIMM
  3. 3 PCIe 4.0 x16 (LP) Slots, 1 AIOM Slot (OCP3.0 Mezzanine Compatible)
  4. 2x 25Gb LAN SFP28 Ports via Mellanox ConnectX®-4 Lx EN Controller
  5. 10x 2.5" U.2 NVMe Hot-Swap Drive Bays
  6. 800W Redundant Platinum Level High-efficiency Power Supplies
  7. 1 VGA, 1 (Serial) Micro USB Port, 2 USB3.0 (2 Rear)
...
...
Get Pricing
ARS-110M-NR
Product SKUs
ARS-110M-NR Standard version with PWS-804P-1R (Platinum Level)
ARS-110M-NR-EU European version with PWS-862A-1R (Titanium Level)
Motherboard
Super R12SPD-A
Processor
CPU
  • Single FCLGA-4926
  • Ampere® Altra® / Altra® Max processor
Note
  • Supports 65W - 250W TDP CPUs (Air Cooled)
System Memory
Memory
  • Slot Count: 16 DIMM slots
  • Max Memory (2DPC): Up to 8TB 3200MT/s ECC DDR4 RDIMM/LRDIMM
  • View Memory Options
Memory Voltage
  • 1.2V
On-Board Devices
Chipset
  • System on Chip
Network Connectivity
  • 2 SFP28 25GbE
  • View AOC Options
IPMI
  • Support for Intelligent Platform Management Interface v.2.0
  • IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
NVMe
  • View NVMe Options
Input / Output
LAN
  • 2 SFP28 25 GbE LAN port(s)
  • 1 RJ45 1 GBASE-T Dedicated IPMI LAN port(s)
USB
  • 2 USB 3.0 port(s) (rear)
  • 2 USB 2.0 port(s) (front)
Video
  • 1 VGA port(s)
Serial
  • 1 port(s)
Management
Software
  • KVM with dedicated LAN
  • IPMI 2.0
Power configurations
  • ACPI/APM Power Management
PC Health Monitoring
CPU
  • Monitors for CPU Cores, Chipset Voltages, Memory
FAN
  • Fans with tachometer monitoring
  • Status monitor for speed control
  • Pulse Width Modulated (PWM) fan connectors
Temperature
  • Monitoring for CPU and chassis environment
  • Thermal Control for fan connectors
