4U GPU A+ Server AS -4124GO-NART (AS -4124GO-NART)

4U GPU A+ Server AS -4124GO-NART (AS -4124GO-NART) thumbnail

Supermicro

4U GPU A+ Server AS -4124GO-NART (AS -4124GO-NART)

Key Features

Supports NVIDIA® HGX™ A100 8-GPUHighest GPU communication using NVIDIA® NVLINK™ v3.0 + NVIDIA® NVSwitch™NICs for GPUDirect RDMA (1:1 GPU Ratio)Supports HGX A100 8-GPU 40GB (HBM2) or 80GB (HBM2e)
Dual AMD EPYC™ 7003/7002 Series Processors(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)
8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs
8 PCIe 4.0 x16 via PCIe switch;1 PCIe 4.0 x 16 LP and 1 PCIe 4.0 x8 LP via CPUs;AIOM Support
6 Hot-swap 2.5" NVMe drive bays(4 via PCIe switch, 2 via CPU)Up to 10 U.2 NVMe 2.5" drives available with an optional 4 drive bays at rear of system

€10.881,90

(Excl. btw)

€13.167,10

(Incl. btw)

Verzending binnen 2-3 werkdagen

Op voorraad

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Supermicro Product ID: AS-4124GO-NART

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31(0)85-3018585

Begin Chat

Specificaties

Key Applications
- High Performance Computing
- AI / Deep Learning

Key Features

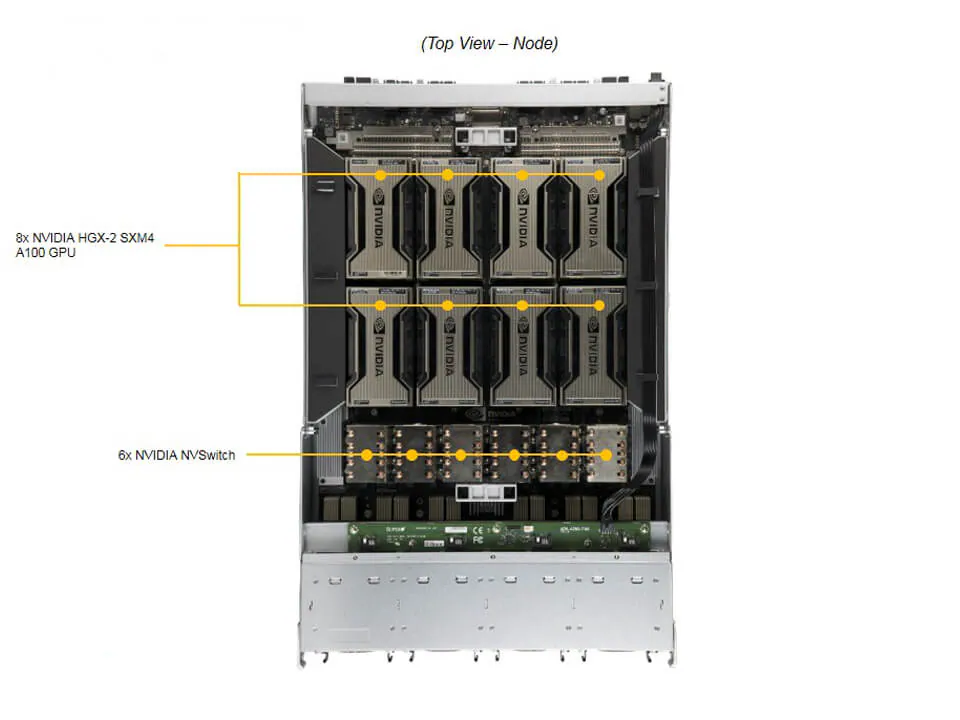

1. Supports NVIDIA® HGX™ A100 8-GPU;
Highest GPU communication using NVIDIA® NVLINK™ v3.0 + NVIDIA® NVSwitch™;
NICs for GPUDirect RDMA (1:1 GPU Ratio)

2. Supports HGX A100 8-GPU 40GB (HBM2) or 80GB (HBM2e)

3. Dual AMD EPYC™ 7003/7002 Series Processors
(The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer)

4. 8TB Registered ECC DDR4 3200MHz SDRAM in 32 DIMMs

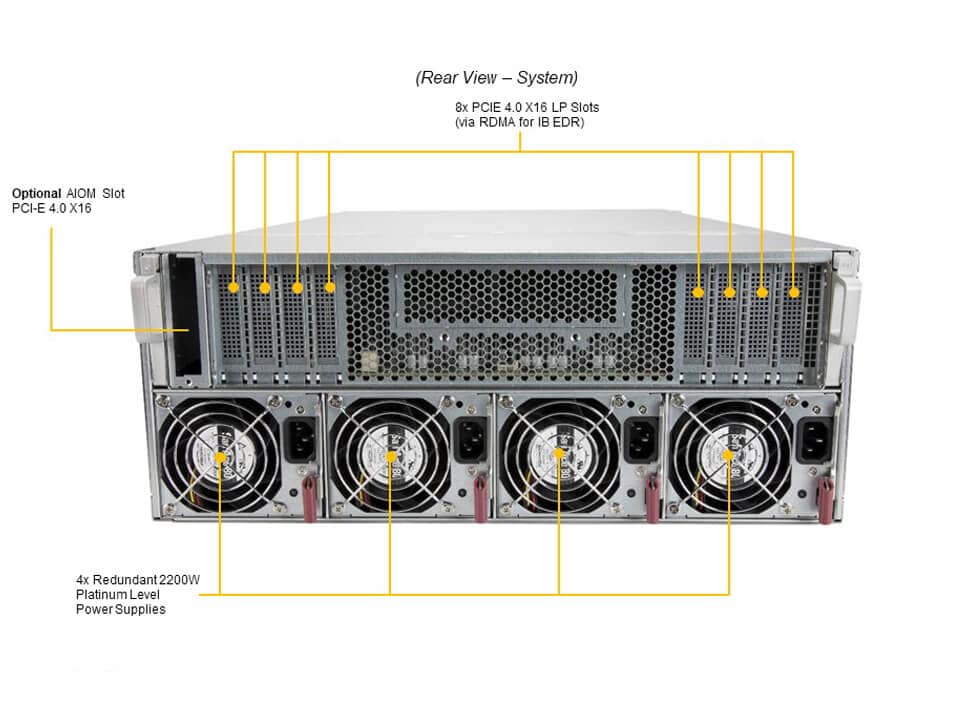

5. 8 PCI-E 4.0 x16 via PCI-E switch;
1 PCI-E 4.0 x 16 LP and 1 PCI-E 4.0 x8 LP via CPUs;
AIOM Support

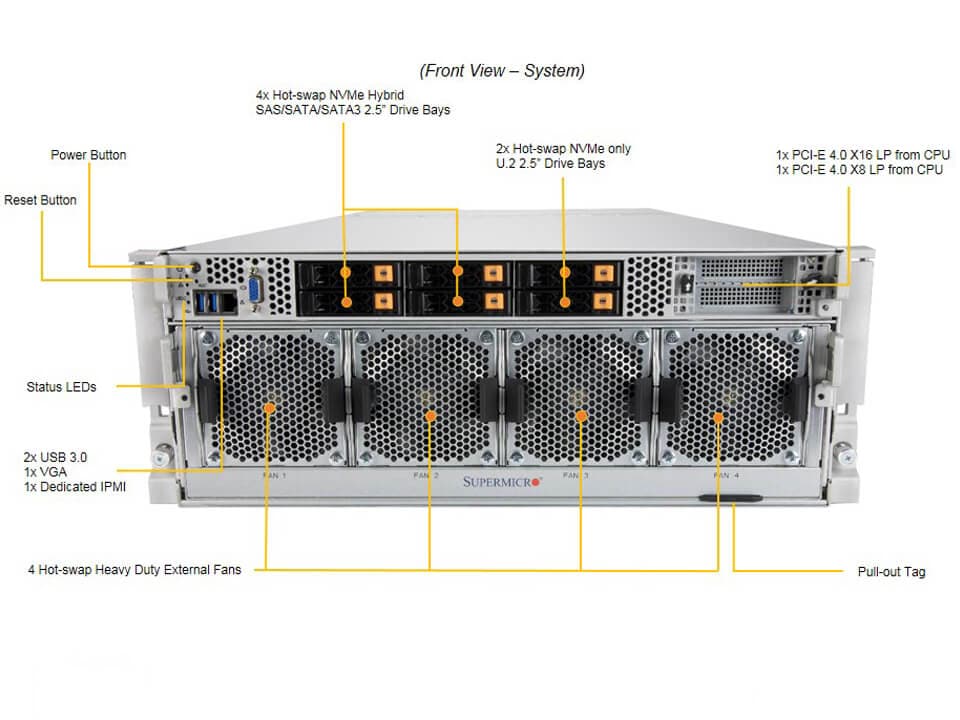

6. 6 Hot-swap U.2 NVMe 2.5" drive bays
(4 via PCI-E switch, 2 via CPU)
Up to 10 U.2 NVMe 2.5" drives available with an optional 4 drive bays at rear of system

7. Flexible Networking via AIOM,
1 dedicated IPMI LAN Port

8. 4 Hot-swap heavy-duty cooling fans

9. 2200W (3+1) Redundant Platinum Level
Power Supplies (full redundancy based on configuration and application load);
3000W (2+2) Redundant Titanium Level (96%+) Power Supply option available for upgrade


Product SKUs

AS -4124GO-NART	A+ Server 4124GO-NART


Motherboard

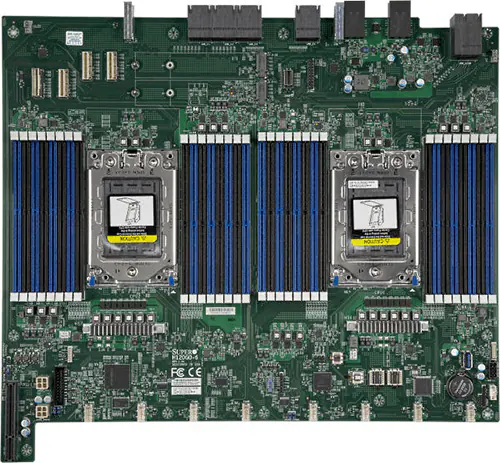

Super H12DGO-6


Processor/Cache

CPU	Dual AMD EPYC™ 7003/7002 Series Processors (The latest AMD EPYC™ 7003 Series Processor with AMD 3D V-Cache™ Technology requires BIOS version 2.3 or newer) Socket SP3 Supports CPU TDP up to 280W*
Cores	Up to 128 Cores (64 per CPU)
Note	* Certain CPUs with high TDP may be supported only under specific conditions. Please contact Supermicro Technical Support for additional information about specialized system optimization


GPU

Supported GPUs	HGX A100 8-GPU 40GB/80GB SXM4 Multi-GPU Board
CPU-GPU Interconnect	PCI-E Gen 4 x16 Switch CPU-to-GPU Interconnect
GPU-GPU Interconnect	NVIDIA® NVLink™ with NVSwitch™ GPU-GPU Interconnect


System Memory

Memory Capacity	32 DIMM slots Up to 8TB 3DS ECC DDR4-3200MH RDIMM/LRDIMM
Memory Type	3200MHz ECC DDR4 RDIMM/LRDIMM


On-Board Devices

Chipset	System on Chip (SoC)
SATA	SATA3 (6Gbps)
Network Controllers	Provided via AIOM
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM-over-LAN support
Graphics	ASPEED AST2600 BMC


Input / Output

SATA	4 SATA3 (6Gbps) ports
LAN	Provided by AIOM 1 RJ45 Dedicated IPMI LAN port
USB	2 USB 3.0 ports (front)
Video	1 VGA Connector (front)
COM Port	1 COM port (header)


System BIOS

BIOS Type	AMI 256Mb SPI Flash ROM


Management

Software	IPMI 2.0 KVM with dedicated LAN SSM, SPM, SUM SuperDoctor® 5 Watchdog


PC Health Monitoring

CPU	Monitors for CPU Cores, Chipset Voltages, Memory. 4+1 Phase-switching voltage regulator
FAN	Fans with tachometer monitoring Status monitor for speed control Pulse Width Modulated (PWM) fan connectors
Temperature	Monitoring for CPU and chassis environment Thermal Control for fan connectors
