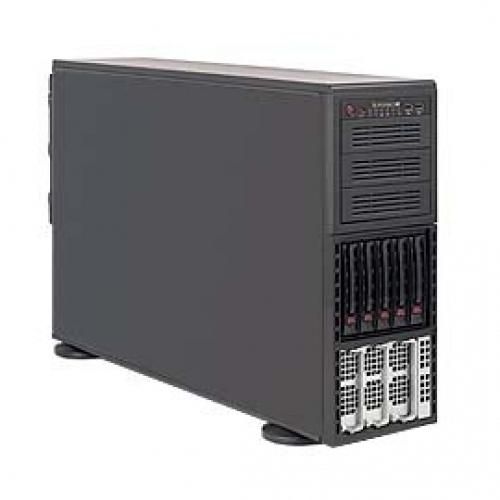

4U A+ Server 4042G-6RF (AS -4042G-6RF)

Name: Supermicro 4U A+ Server 4042G-6RF (AS -4042G-6RF)
Brand: Supermicro
SKU: AS-4042G-6RF
Availability: InStock

4042G-6RF | Tower | A+ Servers | Products | Super Micro Computer - Inc. - 404 - 4042 - 4042G - 4042G - 4042G-6 - 4042G-6R - 4042G-6RF - AS404 - AS4042

€0,00

(Excl. btw)

€0,00

(Incl. btw)

Beschikbaarheid opvragen

Minimaal 1 jaar Carry-in-garantie voor servers

Wij assembleren en testen uw bestelling zorgvuldig

Supermicro Product ID: AS-4042G-6RF

Hulp Nodig? Contacteer onze experts

Beschikbaar van maandag tot vrijdag, 09:00 - 17:30 uur

+31(0)85-3018585

Begin Chat

Specificaties

Key Features

1. Four AMD Opteron 6000 series

    processors (Socket G34)

    16/12/8/4-Core ready; HT3.0 Link

    support

2. AMD SR5690/SR5670/SP5100 Chipset

3. LSI 2008 onboard SAS2 controller;

RAID 0, 1, 10; RAID 5 optional

4. 5x 3.5" Hot-swap SAS / SATA Drive

Bays

5. Up to 1TB DDR3 1600MHz ECC

Registered DIMM; 32x DIMM sockets

6. 2x PCI-e 2.0 x16 slots, 1x PCI-e 2.0

x8 slots, and 1x UIO or PCI-E x8 slot

7. Intel 82576 dual-port Gigabit Ethernet

(2x GbE LAN ports) and 1x Dedicated

LAN for system management (IPMI 2.0)

8. 1400W High-efficiency Gold Level

Redundant Power Supplies


Product SKUs

AS-4042G-6RF	A+ Server 4042G-6RF (Black)


Motherboard

Super H8QG6-F


Processor/Chipset

CPU	Quad 1944-pin Socket G34 Supports up to four 16/12/8/4-Core ready AMD Opteron 6000 Series processors HT3.0 Link support
Chipset	AMD SR5690/SR5670/SP5100 Chipset


System Memory

Memory Capacity	32 DIMM sockets Supports up to 1TB Registered ECC or 256GB Unbuffered ECC/non-ECC DDR3 1600/1333/1066 SDRAM in 32 DIMMs Quad channel memory bus For Dual or Quad CPUs: Recommended that memory be populated equally in adjacent memory banks See Detailed Memory Support Matrix
Memory Type	Registered ECC or unb. ECC / non-ECC DDR3 1600/1333/1066 MHz SDRAM 72-bit, 240-pin gold-plated DIMMs
DIMM Sizes	1GB, 2GB, 4GB, 8GB, 16GB, 32GB
Memory Voltage	1.35V or 1.5V
Error Detection	Corrects single-bit errors Detects double-bit errors (using ECC memory)


On-Board Devices

SAS	LSI 2008 SAS2 RAID 0, 1, 10, 5 (option) (Optional) AOC-SAS2-RAID5-KEY: RAID 5 Support
SATA	AMD SP5100 (RAID 0, 1, 10)
IPMI	Support for Intelligent Platform Management Interface v.2.0 IPMI 2.0 with virtual media over LAN and KVM over LAN support Winbond® WPCM450 BMC
Network Controllers	Intel® 82576 controller, Dual-Port Gigabit Ethernet 10/100/1000BASE-T support
Super I/O	Winbond® W83527 chip
VGA	Matrox G200 16MB DDR2 graphics


Input / Output

SAS	8x 6Gbps SAS/SATA ports
SATA	6x SATA2.0 (3Gb/s) Ports
LAN	2 RJ45 LAN ports 1 RJ45 Dedicated LAN supports IPMI
USB	7x USB 2.0 ports 2x Rear, 4x internal header, and 1x type A
Keyboard / Mouse	PS/2 keyboard and mouse ports
Serial Ports	1x Fast UART 16550 serial port 1x serial port header
VGA	1 VGA port
