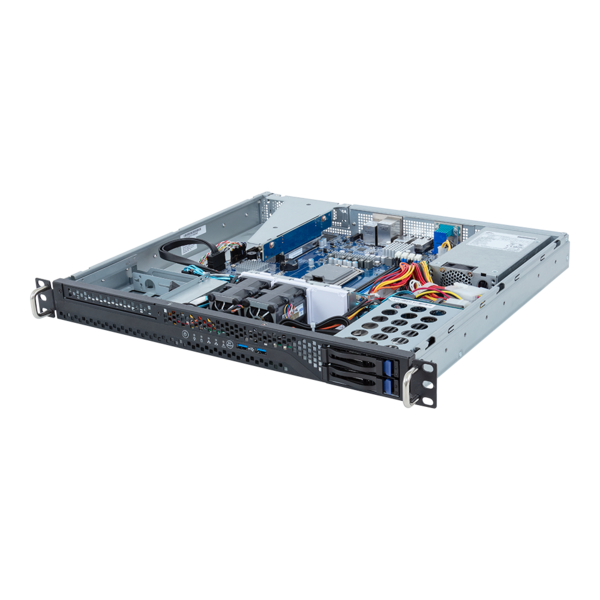

1. R113-X30-AA02

Rack Server - Intel® Xeon® E-2400 - 1U UP 4-Bay SATA

• Single Intel® Xeon® E-2400 Processors
• Single Intel® Pentium® Gold G7400 / G7400T Processor
• Dual Channel DDR5 ECC UDIMM, 4 x DIMMs
• 2 x 1Gb/s LAN ports via Intel® I210-AT
• 2 x 2.5" SATA hot-swappable bays
• 2 x 2.5" SATA internal bays (optional)
• 1 x M.2 slot with PCIe Gen4 x4 interface
• 1 x FHHL PCIe Gen5 x16 slot
• Single 400W 80 PLUS Gold power supply

* The entire materials provided herein are for reference only. GIGABYTE reserves the right to modify or revise the content at anytime without prior notice.
* Advertised performance is based on maximum theoretical interface values from respective Chipset vendors or organization who defined the interface specification. Actual performance may vary by system configuration.
* All trademarks and logos are the properties of their respective holders.
* Due to standard PC architecture, a certain amount of memory is reserved for system usage and therefore the actual memory size is less than the stated amount.

SPECIFICATIONS

Dimensions (WxHxD, mm)

1U
430 x 43.5 x 393.2

CPU

Intel® Xeon® E-2400 Processors
Intel® Pentium® Gold G7400 / G7400T Processor
Single processor, TDP up to 95W

Memory

4 x DIMM slots
DDR5 memory supported only
Dual Channel memory architecture
DIMM up to 32GB supported
ECC UDIMM supported only
Memory speed: Up to 4400 MT/s (1DPC), 4000 MT/s (2DPC/1R), 3600 MT/s (2DPC/2R)

LAN

Rear side:
2 x 1Gb/s LAN ports (2 x Intel® I210-AT)
Support NCSI function

1 x 10/100/1000 Mbps Management LAN

Video

Integrated in Aspeed® AST2600
2D Video Graphic Adapter with PCIe bus interface
1920x1200@60Hz 32bpp

Storage

Front side:
2 x 2.5" SATA hot-swappable bays

Internal:
Optional 2 x 2.5" SATA bays

SATA supported only

RAID

Intel® SATA RAID 0/1/10/5

Expansion Slots

Riser Card CRS101R:
- 1 x PCIe x16 (Gen5 x16) FHHL slot, from CPU

1 x M.2 slot:
- M-key
- PCIe Gen4 x4, from CPU
- Supports 2280 cards

Internal I/O

1 x TPM header

Front I/O

2 x USB 3.2 Gen1
1 x Power button
1 x Reset button
1 x Power LED
2 x LAN activity LEDs
1 x Storage activity LED
1 x System status LED

Rear I/O

2 x USB 3.2 Gen1
1 x VGA
1 x COM
2 x RJ45
1 x MLAN
1 x ID button with LED

Backplane Board

Speed and bandwidth:
SATA 6Gb/s

TPM

1 x TPM header with SPI interface

Power Supply

Single 400W 80 PLUS Gold power supply

AC Input:
- 100-240V~/ 6-3A, 60-50Hz

DC Output:
- Max 400W/ 100-240V~
+12V/ 33A
+5V/ 16A
+3.3V/ 14A
+5Vsb/ 3A

System Management

Aspeed® AST2600 management controller
GIGABYTE Management Console (AMI MegaRAC SP-X) web interface

• Dashboard
• HTML5 KVM
• Sensor Monitor (Voltage, RPM, Temperature, CPU Status …etc.)
• Sensor Reading History Data
• FRU Information
• SEL Log in Linear Storage / Circular Storage Policy
• Hardware Inventory
• Fan Profile
• System Firewall
• Power Consumption
• Power Control
• Advanced Power Capping
• LDAP / AD / RADIUS Support
• Backup & Restore Configuration
• Remote BIOS/BMC/CPLD Update
• Event Log Filter
• User Management
• Media Redirection Settings
• PAM Order Settings
• SSL Settings
• SMTP Settings

OS Compatibility

Please refer to OS compatibility table in support page

System Fans

2 x 40x40x56mm (29,700rpm)

Operating Properties

Operating temperature: 10°C to 35°C
Operating humidity: 8%-80% (non-condensing)
Non-operating temperature: -40°C to 60°C
Non-operating humidity: 20%-95% (non-condensing)

Packaging Dimensions

594 x 521 x 155 mm

Packaging Content

1 x R113-X30-AA02
1 x CPU heatsink

Note: Rail kit not included. Please refer to optional parts for compatible rail kit.

Part Numbers

- Barebone package: 6NR113X30MR000AA02*
- Motherboard: 9MX34BS0NR-000
- CPU heatsink: 25ST1-12311H-A7R
- Fan module: 25ST2-405623-A0R
- Riser card - CRS101R: 9CRS101RNR-00
- Power supply: 25EP0-2400W3-F3S

Optional parts:

- Rail kit: 25HB2-130000-I0R
